ADS630 from DFI, a high-performance ATX industrial motherboard supporting 14th, 13th, and 12th Gen Intel Core processors, built for intensive industrial workloads requiring multiple expansion and high-speed connectivity. Ideal for applications in automation, edge AI, and high-bandwidth data systems.
The ADS630 supports four independent displays through VGA, HDMI 2.0a and two DP++ outputs, with the DP++ interfaces supporting resolutions up to 4096 × 2304 at 60Hz. Expansion includes one PCIe x16 Gen 5 slot, four PCIe x4 Gen 4 slots, two legacy PCI slots, an M.2 E-key interface and up to two M.2 M-key interfaces, depending on configuration. Selected R680E models provide two 10GbE and two 2.5GbE ports, while Q670E models provide dual 2.5GbE. Four SATA 3.0 interfaces with RAID support, multiple USB connections, six serial ports and TPM 2.0 further support integration into industrial automation, machine vision, edge AI and high-bandwidth data systems.

download the ADS630 data sheet
Access detailed specifications, performance data, and technical drawings for the ADS630 in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

Stuck on specs? Let’s chat

We’re online and ready to chat.

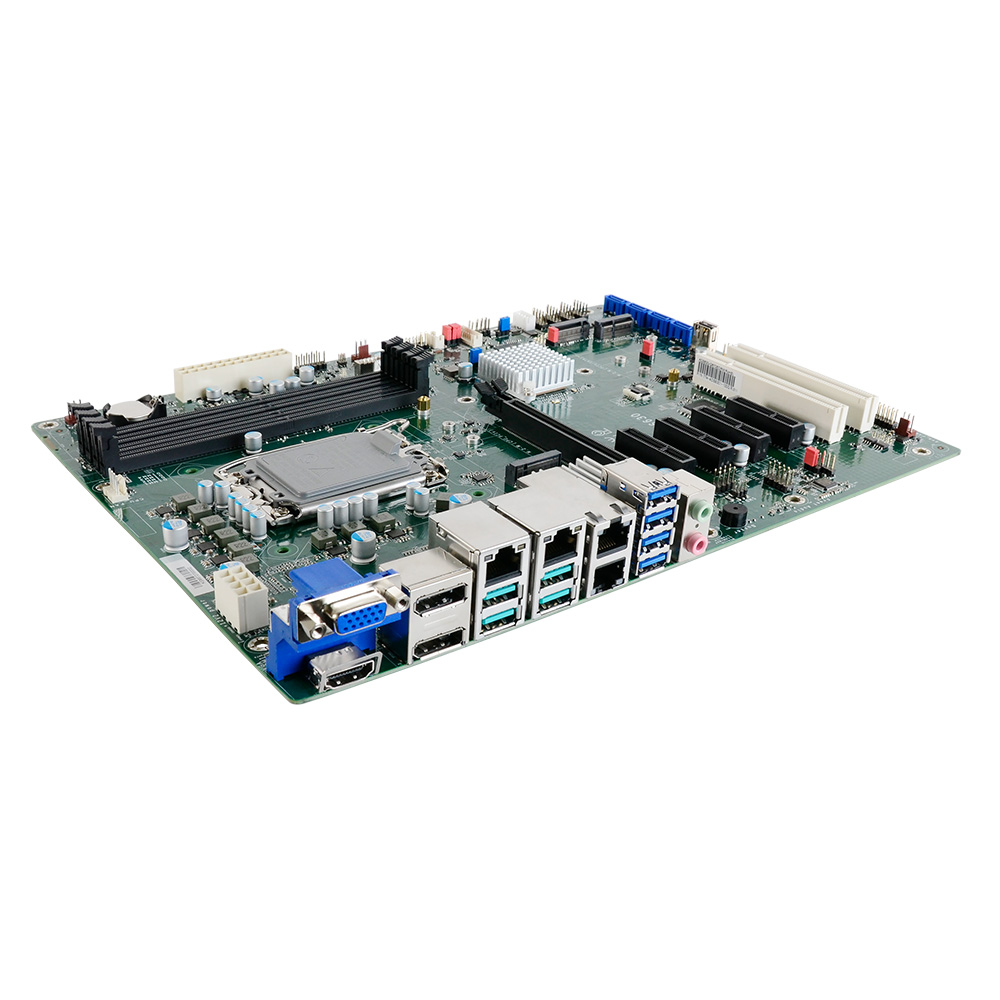

ADS630 ATX motherboard
The ADS630 is a next-generation ATX motherboard designed for Intel’s latest LGA1700 processors up to 125W TDP. It integrates the Intel R680E or Q670E chipset and supports up to 128GB DDR4 memory. The board features quad display outputs (VGA, HDMI, and dual DisplayPort++), four PCIe x4 Gen4 slots, one PCIe x16 Gen5 slot, and two legacy PCI slots. Networking capabilities include dual Intel 2.5GbE and dual 10GbE ports (R680E version), making it suitable for data-heavy industrial environments. Other highlights include rich USB 3.2 Gen2/Gen1 interfaces, multiple COM ports, TPM 2.0, and RAID storage support.
