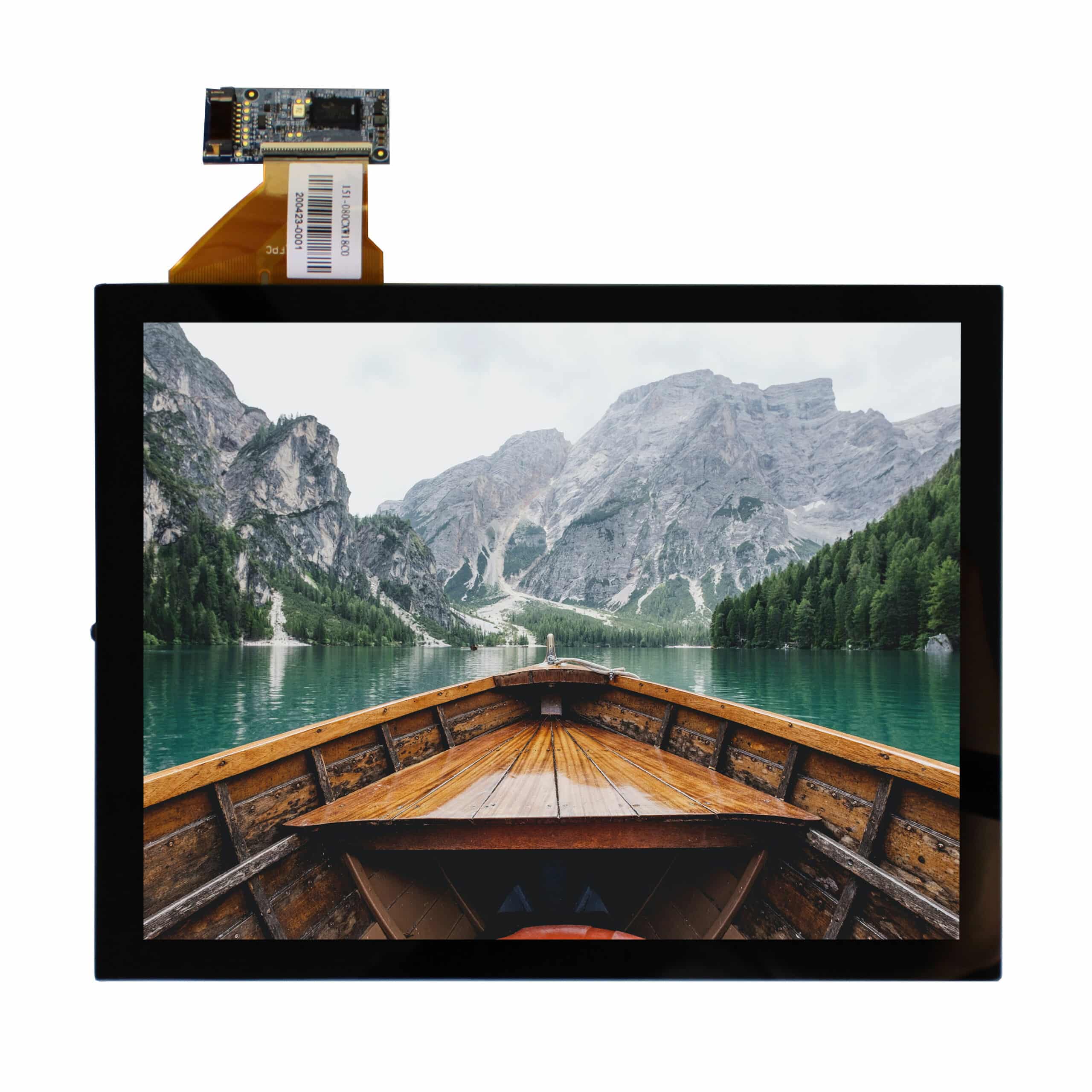

8″ XGA IPS TFT LCD Display
The 8″ XGA IPS TFT LCD Display from DigiWise, a premium industrial-grade module featuring IPS technology for superior colour and viewing performance.
With brightness levels up to 1200 cd/m² and robust design, it’s suitable for demanding indoor and outdoor environments.
download the 8″ XGA IPS TFT LCD Display data sheet
Access detailed specifications, performance data, and technical drawings for the 8″ XGA IPS TFT LCD Display in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The 8″ XGA IPS TFT LCD Display combines high resolution and IPS performance in a compact 4:3 format, making it ideal for medical, industrial, and marine applications. With a 1024 x 768 resolution and brightness options from 500 to 1200 cd/m², it provides sharp, clear visuals even in bright ambient light. The display operates from -20°C to +70°C and uses an 8-bit LVDS interface. Optional PCAP and resistive touch panels are available, along with enhancements such as optical bonding, custom cover lenses, and screen coatings. With CE, RoHS, and REACH compliance, it delivers durability, clarity, and performance in professional applications.
