download the 13.3” FHD IPS TFT LCD Display data sheet
Access detailed specifications, performance data, and technical drawings for the 13.3” FHD IPS TFT LCD Display in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

Stuck on specs? Let’s chat

We’re online and ready to chat.
APPLICATION

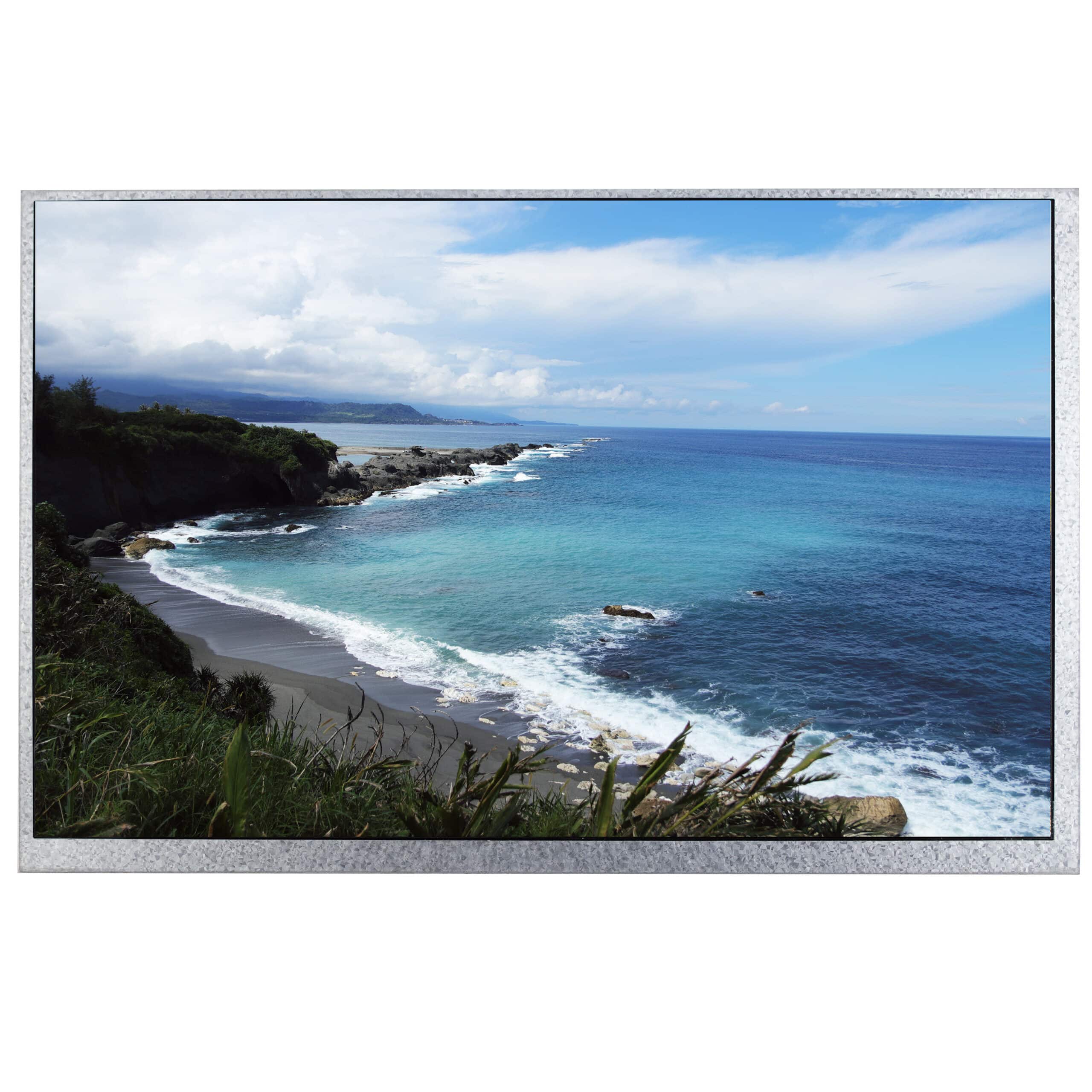

The 13.3” FHD IPS TFT LCD Display provides a 1920×1080 resolution, up to 1000 cd/m² brightness, and 1000:1 contrast ratio. Featuring IPS technology for wide viewing angles and available in 8-bit LVDS or eDP interfaces, it is ideal for medical, marine, and industrial use. PCAP and non-touch options available.
FEATURES
Size 13.3″
Active Area 293.76 x 165.24 mm
Resolution 1920 x 1080
Interface 8-bit LVDS & eDP
Brightness 400-1000 cd/m²
Touch Panel Options PCAP / Resistive
Operating Temperature -20°C to +70°C
