Power > RE-1400-89LR

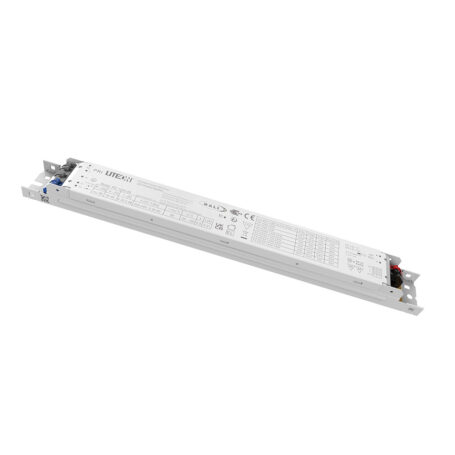

RE-1400-89LR

Input: 180 - 264Vac
Outputs: 25 - 48V
Power: 40 Watt
Tamb: -20 to 50°C
Dims: 284 x 31 x 21mm
DALI 2 Certified

Make an Enquiry

X/Twitter
This field is for validation purposes and should be left unchanged.
Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA

APPLICATION

The RE-1400-89LR is a 40W constant current LED driver from the DALI Performance Series, engineered for precise dimming and robust safety in DALI-controlled lighting systems. Delivering 25–48V output with a current range of 0.35–0.86A, this driver ensures smooth amplitude dimming from 1–100% and supports both DALI-2 and Push Dim interfaces, making it suitable for a wide range of professional lighting applications, including emergency lighting.

Designed for long-term reliability, it operates with high efficiency (up to 87%), low THD, and a power factor of ≥0.95. It includes full protections, over-voltage, over-power, short circuit, and thermal shutdown, alongside a long 100,000-hour lifetime. Certified to IEC 61347, CE, ENEC, and UKCA standards, the RE-1400-89LR is housed in a slim IP20-rated enclosure and is ideal for architectural, commercial, and emergency-ready LED lighting systems.

feature list

40W constant current output with adjustable 25–48V and 0.35–0.86A range
High efficiency (87%) with power factor ≥0.95 and THD ≤20%
Supports DALI-2 and Push Dim dimming interfaces with 1–100% range
Full protections: short-circuit, over-voltage, over-power, over-temperature
Rated lifetime of 100,000 hours at full load and 65°C case temperature
Low standby power consumption <0.5W and acoustic noise <25dB
Certified for IEC 61347-1/-2-13, CE, ENEC, UKCA, and EMC compliance
Suitable for emergency lighting applications (EOFi 0.9)
Wide input voltage range (198–264 Vac / 180–270 Vdc)

Downloads

Click on the link below for an instant download.

RE-1400-89LR Datasheet
