NP08 Series

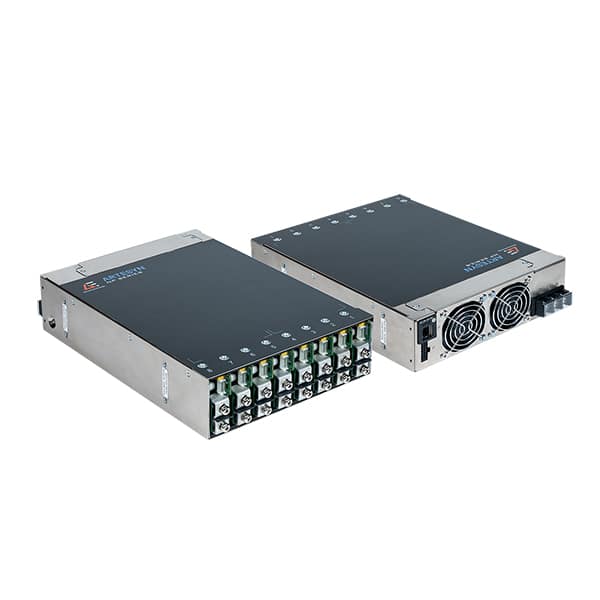

NP08 Series from Advanced Energy, up to 4000W configurable ac-dc power supply
Flexible modular PSU platform with up to 24 outputs, high density, and digital control.

Add to Quote

Add to Compare

Category: Chassis Mount, Configurable Power Supplies

Brands: Advanced Energy

download the NP08 Series data sheet

Access detailed specifications, performance data, and technical drawings for the NP08 Series in our comprehensive datasheet.

View downloads

Need a 3D drawing?

Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

request a drawing

Stuck on specs? Let’s chat

We’re online and ready to chat.

Open chat

APPLICATION

NP08 Series delivers up to 4000W from 90-264V ac input with up to 95% efficiency. The 8-slot chassis supports hot-swappable isolated output modules, with wide adjustment ranges from 0-400V. Features include PMBus digital interface, active current sharing, and scalable system integration. Designed for medical, industrial, communications, and test equipment. Certified to IEC/UL60601-1, IEC/UL62368-1, and 80 PLUS Platinum.

FEATURES

Input Range 90-264V ac

Output Range 0-400V configurable

Power Up to 4000W

Form Factor 19” rackmount 8-slot modular PSU

Cooling Method Fan cooled

Certifications IEC/UL60601-1, IEC/UL62368-1, 80 PLUS Platinum

INDUSTRY

Industrial, Medical
