FlexStorm Cabinet

Input: 3 x 400Vac
Outputs: 125Vdc
Power: 72000W
Tamb: -10°C to +60°C
Dims: 600 x 600 x 2200mm
Made in Spain

Make an enquiry
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now

APPLICATION

Based on a modular design, it is a scalable solution that goes from the power module, to the subrack including control and display and the whole solution as a cabinet.

FlexStorm Series offers a high level of power supply to critical systems, guaranteeing its perfect operation without outages. Typical applications are power generation, medium and high voltage substations, telecommunications, data and telecommunications networks…

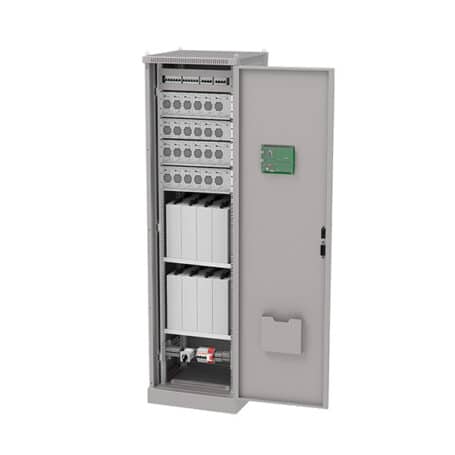

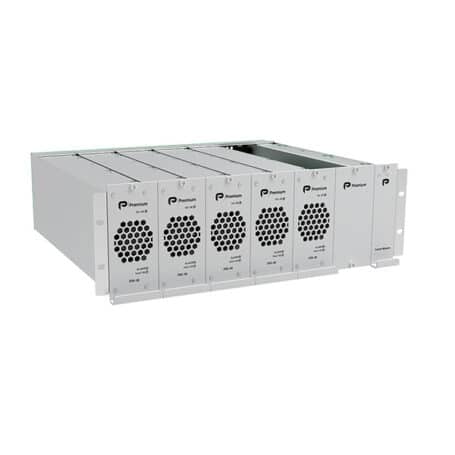

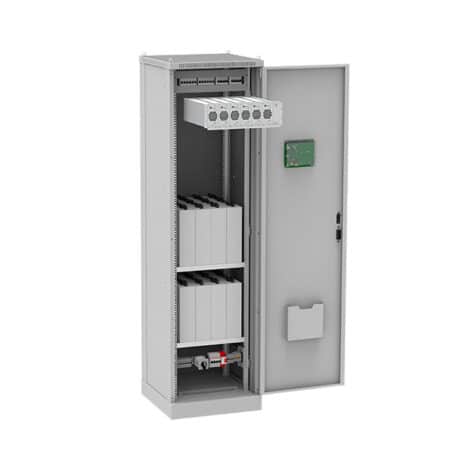

The FlexStorm cabinet is a high efficiency 12kW + 3kW or 6kW (1 or 2 backup power module) rectifier with galvanic isolation between input and output. The system consists of a 19″ Subrack containing 5 or 6 FDS-3K power modules (4+1 or 4+2 redundancy) and a control module. The communications module is installed in the door. The cabinet is equipped with auxiliary and protection devices, see details in the block diagram section.

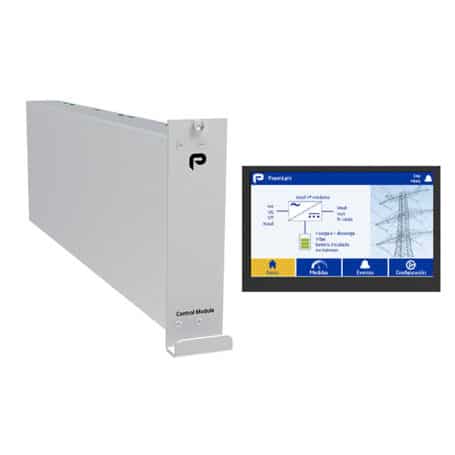

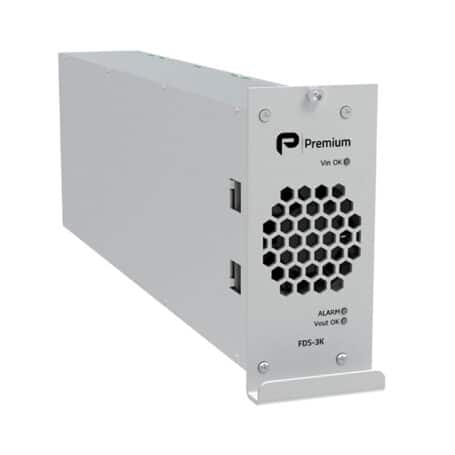

The control module centralizes all measurements to run the battery charge and output voltage. The FDS-3K power modules communicate with the control module via PMBus. The communication module allows local and remote control. RS-232 for local control and Ethernet for local and remote control are the implemented protocols.

The product is protected against over-temperature, overvoltage, overcurrent and short-circuits. The battery charging is optimized to NiCd cells.

Downloads

Click on the link below for an instant download.

  • FlexStorm Series User Manual
