DC12 Series

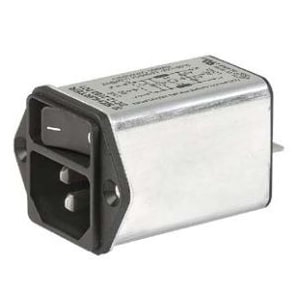

DC12 Series from Schurter, IEC C14 inlet with switch and EMC filter
The Schurter DC12 Series is a compact power entry module with IEC C14 inlet, 1- or 2-pole switch, and integrated line filter for industrial and medical use.
download the DC12 Series data sheet
Access detailed specifications, performance data, and technical drawings for the DC12 Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
DC12 Series from Schurter, IEC C14 inlet with switch and EMC filter
The Schurter DC12 Series is a compact power entry module with IEC C14 inlet, 1- or 2-pole switch, and integrated line filter for industrial and medical use.
FEATURES
INDUSTRY
| Model Number | Input Range | Output | Power |
|---|---|---|---|
| DC12.1102.103 | 1 A | 250 V ac | 50-60 Hz |
| DC12.2102.103 | 2 A | 250 V ac | 50-60 Hz |
| DC12.3102.103 | 4 A | 250 V ac | 50-60 Hz |
| DC12.4102.103 | 6 A | 250 V ac | 50-60 Hz |
| DC12.5102.103 | 10 A | 250 V ac | 50-60 Hz |
| DC12.1102.101 | 1 A | 250 V ac | 50-60 Hz |
| DC12.2102.101 | 2 A | 250 V ac | 50-60 Hz |
| DC12.3102.101 | 4 A | 250 V ac | 50-60 Hz |
| DC12.4102.101 | 6 A | 250 V ac | 50-60 Hz |
| DC12.5102.101 | 10 A | 250 V ac | 50-60 Hz |
| DC12.1102.003 | 1 A | 250 V ac | 50-60 Hz |
| DC12.2102.003 | 2 A | 250 V ac | 50-60 Hz |
| DC12.3102.003 | 4 A | 250 V ac | 50-60 Hz |
| DC12.4102.003 | 6 A | 250 V ac | 50-60 Hz |
| DC12.5102.003 | 10 A | 250 V ac | 50-60 Hz |
Need something a little more bespoke?
For the right projects, we offer custom power solutions tailored to specific requirements. Get in touch to see if your brief fits the bill.
Decades of know-how guiding every recommendation, because good advice beats guesswork. Speak to real engineers, not sales scripts. From design concepts to installation queries, our technical team is with you every step of the way.
Contact us to find out how we can elevate your project
Downloads
Click on the download button for an instant download.
