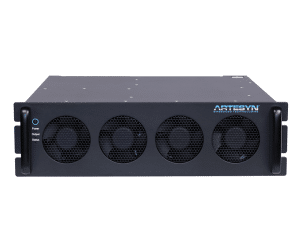

IHP Series 6 | Artesyn Embedded Technologies | Relec Electronics Ltd 2020Are you looking for a power supply with multiple rails or maybe a unit with an odd output voltage? Our configurable power supplies provide solutions in a single, low profile chassis mounting enclosure. Products are available which meet both industrial and medical standards.

Typical applications are widespread include ticketing machines, medical, military, broadcast and industrial. In fact anywhere that needs unusual voltages or multiple outputs can be built quickly and easily.

We can supply units which are either fan or convection cooled (fanless = silent) with chassis options available between 200W and 1400W.

Fast enough for you?

We will configure solutions for next day delivery with up to 12 outputs. Just give us a call. We’re sure you won’t be disappointed with our reactions.

READ MOREREAD LESS
  • VCCS300S Series

    Input: 85-264Vac
    Outputs: 12 to 56Vdc
    Power: 300 Watt
    Tamb: -40°C to +70°C
    Dims: 101.3 x 50.8 x 40.2 mm
    IEC/UL62368-1 2nd Edition, MIL-STD Approved
    5 Year warranty

  • NEVO+600M Series

    Input: 85-264Vac
    Outputs: 5 to 48Vdc
    Power: 600 Watt
    Tamb: -20°C to +70°C
    Dims: 133.7 x 77.7 x 41 mm
    IEC/UL60601-1 Ed. 3 & -1-2 Ed. 4 (EMC) Approved
    3 Year warranty

  • CoolX600 Series

    Input: 85-264Vac
    Outputs: 1 to 4, 2.5 to 58V dc
    Power: 600 Watt
    Tamb: -40°C to +85°C
    Dims: 216 x 114 x 39 mm
    UL / CE EN60950 EN60601 Approved

  • VCCM600M Series

    Input: 85-264Vac
    Outputs: 5 to 48Vdc
    Power: 600 Watt
    Tamb: -40°C to +70°C
    Dims: 177.8 x 101.6 x 41 mm
    IEC60601 Ed. 3 (Immunity to Ed. 4) , MIL-STD Approved
    5 Year warranty

  • VCCM600S Series

    Input: 85-264Vac
    Outputs: 1.5 to 58Vdc
    Power: 600 Watt
    Tamb: -40°C to +70°C
    Dims: 177.8 x 101.6 x 41 mm
    IEC/UL60950-1 2nd Edition & IEC/UL62368-1 2nd Edition, MIL-STD Approved
    5 Year warranty

  • NEVO+600S Series

    Input: 85-264Vac
    Outputs: 5 to 48Vdc
    Power: 600 Watt
    Tamb: -20°C to +70°C
    Dims: 133.7 x 77.7 x 41 mm
    IEC60950 Ed. 2 & IEC62368-1 Ed. 2 Approved
    3 Year warranty

  • CoolX1000 Series

    Input: 85-264Vac
    Outputs: 1 to 12, 2.5 to 58V dc
    Power: 1000 Watt
    Tamb: -40°C to +85°C
    Dims: 254 x 165.1 x 39.1 mm
    UL / CE, EN62368-1 EN60601

  • NEVO+1200S Series

    Input: 85-264Vac
    Outputs: 5 to 48Vdc
    Power: 1200 Watt
    Tamb: -40°C to +70°C
    Dims: 154.5 x 152.4 x 41 mm
    IEC/UL60950 2nd & IEC/UL62368 2nd edition Approved
    3 Year warranty

  • NEVO+1200M Series

    Input: 85-264Vac
    Outputs: 5 to 48Vdc
    Power: 1200 Watt
    Tamb: -40°C to +70°C
    Dims: 154.5 x 152.4 x 41 mm
    IEC/UL60601-1 Ed. 3 & -1-2 Ed. 4 (EMC) Approved
    3 Year warranty

  • FC1500 Series

    Input: 85-264Vac
    Outputs: 0 to 1000Vdc Capacitor charger
    Power: 1500 Watt + 800W Configurable
    Tamb: 0°C to +40°C
    Dims: 348 x 145 x 106 mm
    IEC60601-1 3rd edition, IEC60601-1-2 4th edition (EMC)

  • CoolX1800 Series

    Input: 85-264Vac
    Outputs: 1 to 12, 2.5 to 58V dc
    Power: 1800 Watt
    Tamb: -40°C to +70°C
    Dims: 262 x 127 x 40.6 mm
    UL / CE EN60950, EN62368-1 EN60601

  • CoolX3000 Series

    Input: 85-264Vac
    Outputs: 1 to 24, 2.5 to 58V dc
    Power: 3000 Watt
    Tamb: -40°C to +60°C
    Dims: 300 x 131 x 120 mm
    UL / EN62368-1 EN60601 (2xMOPP)

  • NP08 Series

    Input: 90-264Vac
    Outputs: 8 from 5 to 48V
    Power: 4000 Watt
    Tamb: -40°C to +70°C
    Dims: 348 x 145 x 106 mm
    IEC/EN 62368-1, UL 62368-1, IEC/EN 60601-1 Approved

  • iHP12 Series

    Input: 180V - 528Vac
    Outputs: 0.6V - 300Vdc
    Power: 12000 Watts
    Temp: 0 to +50°C
    Dims: 482.6 x 502.7 x 132.5mm (3U)
    UL / CE EN60950 EN60601 Approved

  • iHP, Liquid Cooled

    Input: 342V - 528Vac
    Outputs: 0.6V - 300Vdc
    Power: 20000 Watts
    Temp: 0 to +65°C
    Dims: 447.04 x 756.92 x 177.8mm (3U)
    UL / CE 62368-1, EN / IEC 62368-1 Approved

  • iHP24 Series

    Input: 342V - 660Vac
    Outputs: 0.6V - 300Vdc
    Power: 24000 Watts
    Temp: 0 to +50°C
    Dims: 482.6 x 738.2 x 132.5mm (3U)
    UL / CE EN60950 EN60601 Approved
