PMM30 Series

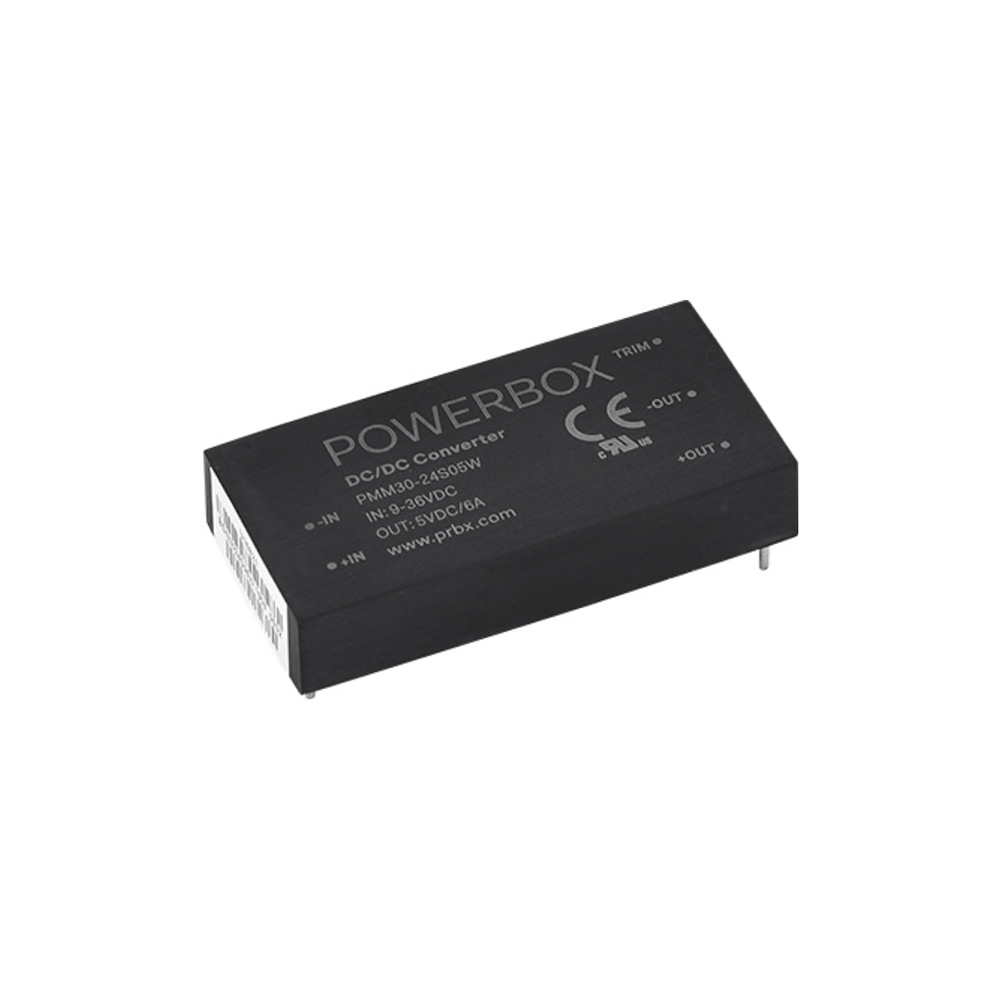

PMM30 Series from Powerbox (Cosel), 30W medically approved isolated dc-dc converter.
Compact 30W medically certified dc-dc converter with reinforced 5000V ac isolation and high efficiency for healthcare and industrial use.
download the PMM30 Series data sheet
Access detailed specifications, performance data, and technical drawings for the PMM30 Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The PMM30 Series from Powerbox (Cosel) provides 30W of regulated isolated output power from 2:1 and 4:1 input voltage ranges (9-18V, 18-36V, 36-75V, and 9-36V dc). Offering single and dual outputs from 3.3V to ±15V, the PMM30 achieves up to 92% efficiency with low leakage current (<2µA). With reinforced 2 MOPP insulation, remote on/off control, and protection against over-voltage, over-current, and short-circuit, the PMM30 Series is ideal for patient-connected and industrial control systems. Certified to IEC60601-1, EN60601-1, and UL62368-1.
FEATURES
INDUSTRY
| Model | Input Voltage | Output Voltage | Power Rating |
|---|---|---|---|
| PMM30-12S3V3 | 9-18V dc | 3.3V | 30W |
| PMM30-12S05 | 9-18V dc | 5V | 30W |
| PMM30-12S12 | 9-18V dc | 12V | 30W |
| PMM30-12S15 | 9-18V dc | 15V | 30W |
| PMM30-12D05 | 9-18V dc | ±5V | 30W |
| PMM30-12D12 | 9-18V dc | ±12V | 30W |
| PMM30-12D15 | 9-18V dc | ±15V | 30W |
| PMM30-24S05 | 18-36V dc | 5V | 30W |
| PMM30-24S12 | 18-36V dc | 12V | 30W |
| PMM30-24S15 | 18-36V dc | 15V | 30W |
| PMM30-24D05 | 18-36V dc | ±5V | 30W |
| PMM30-24D12 | 18-36V dc | ±12V | 30W |
| PMM30-24D15 | 18-36V dc | ±15V | 30W |
| PMM30-48S05 | 36-75V dc | 5V | 30W |
| PMM30-48S12 | 36-75V dc | 12V | 30W |
| PMM30-48S15 | 36-75V dc | 15V | 30W |
| PMM30-48D05 | 36-75V dc | ±5V | 30W |
| PMM30-48D12 | 36-75V dc | ±12V | 30W |
| PMM30-48D15 | 36-75V dc | ±15V | 30W |
| PMM30-24S05W | 9-36V dc | 5V | 30W |
| PMM30-24S12W | 9-36V dc | 12V | 30W |
| PMM30-24S15W | 9-36V dc | 15V | 30W |
| PMM30-24D05W | 9-36V dc | ±5V | 30W |
| PMM30-24D12W | 9-36V dc | ±12V | 30W |
| PMM30-24D15W | 9-36V dc | ±15V | 30W |
