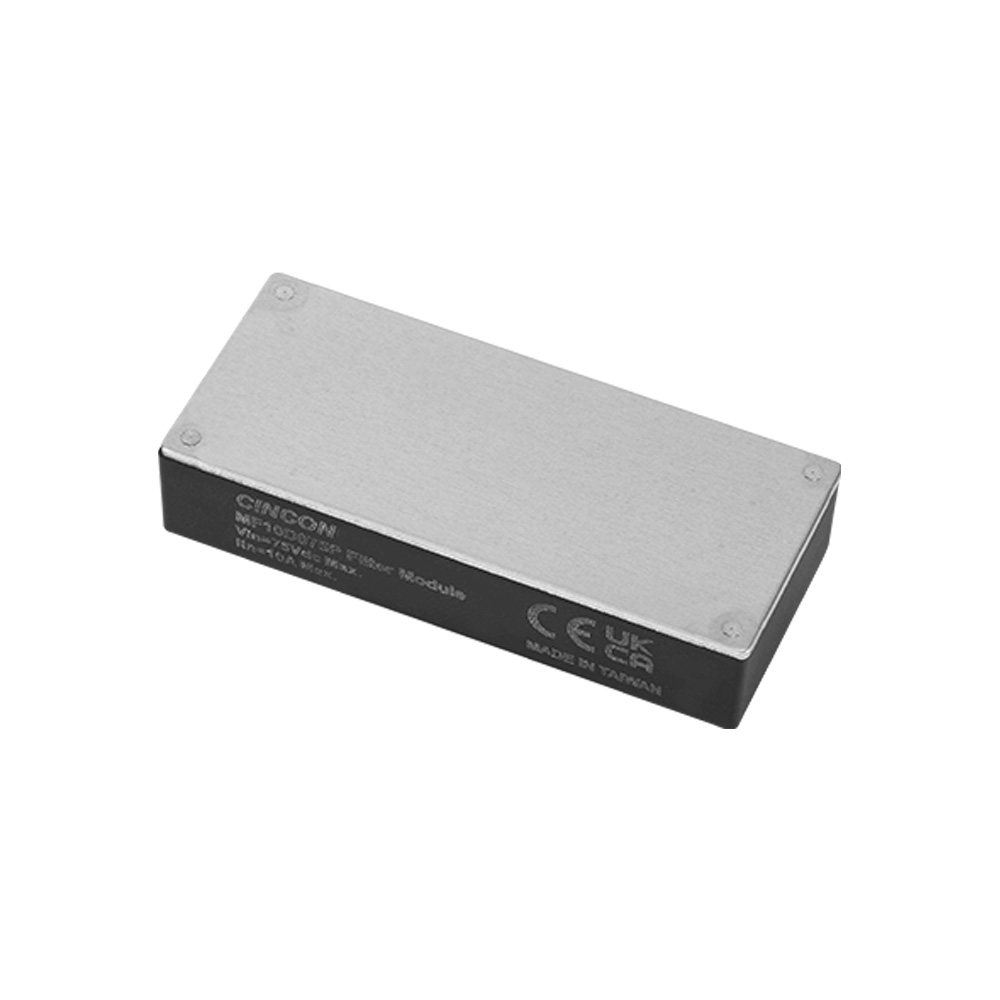

MF10/20D075P Series
MF10/20D075P Series from Cincon, DC EMC filter module for MIL-STD-461 applications
The Cincon MF10/20D075P Series is a military-grade DC input EMI filter designed to meet MIL-STD-461F/G conducted emission standards. It provides common and differential mode noise suppression for DC-DC converters in harsh environments.
download the MF10/20D075P Series data sheet
Access detailed specifications, performance data, and technical drawings for the MF10/20D075P Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The MF10/20D075P Series emc filter operates up to 75 VDC input and 100 VDC surge for 1 s, supporting 10 A or 20 A continuous current. Featuring compact quarter-brick and eighth-brick formats, it offers 1500 VDC isolation, shock and vibration compliance to MIL-STD-810F, and an operating case temperature from -55 °C to +110 °C. Certified to MIL-STD-461 and UL60950.
