MB2-10ANS
MB2-10ANS from MiTAC, a fanless embedded system powered by Intel Alder Lake-N processors, offering compact industrial-grade performance and AI expansion.
Ideal for automation, vision, and AI edge applications requiring durability and wide temperature support.
download the MB2-10ANS data sheet
Access detailed specifications, performance data, and technical drawings for the MB2-10ANS in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.

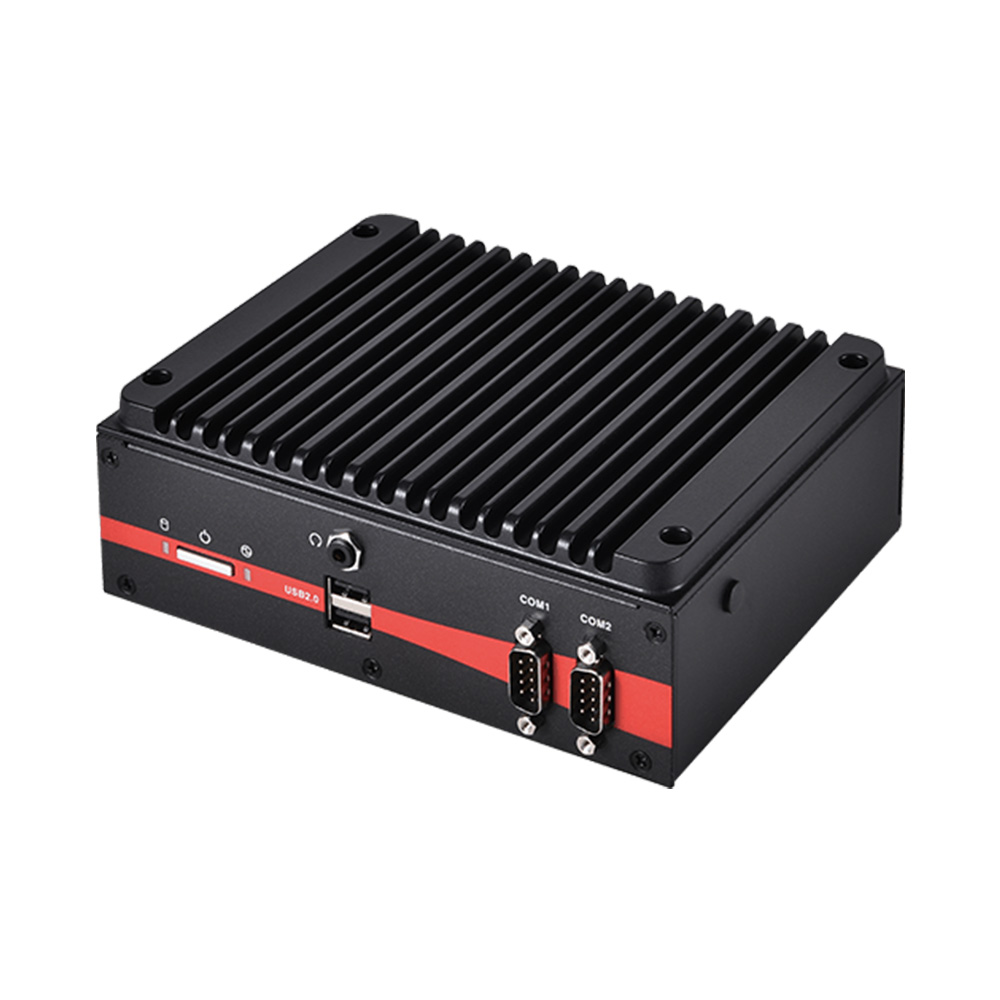

The MB2-10ANS is a fanless embedded box PC from MiTAC featuring Intel Alder Lake-N N97 and i3-N305 processors with up to 8 cores and 3.8 GHz frequency. It supports 1 x DDR5 SO-DIMM up to 16 GB and dual displays via HDMI and DisplayPort. Expansion includes M.2 B, M, and E key slots for NVMe, 5G, or Wi-Fi modules, plus optional Hailo-8 AI accelerator up to 26 TOPS. The system provides 2 x 2.5 GbE LAN, 6 x USB, and up to 4 x COM ports with 8-bit GPIO. With an 8 – 26 V dc input, wall or DIN-rail mounting, and operation from −25 °C to 60 °C, it’s built for industrial automation, smart vision, and AI inference tasks. CE and FCC Class B certified.
