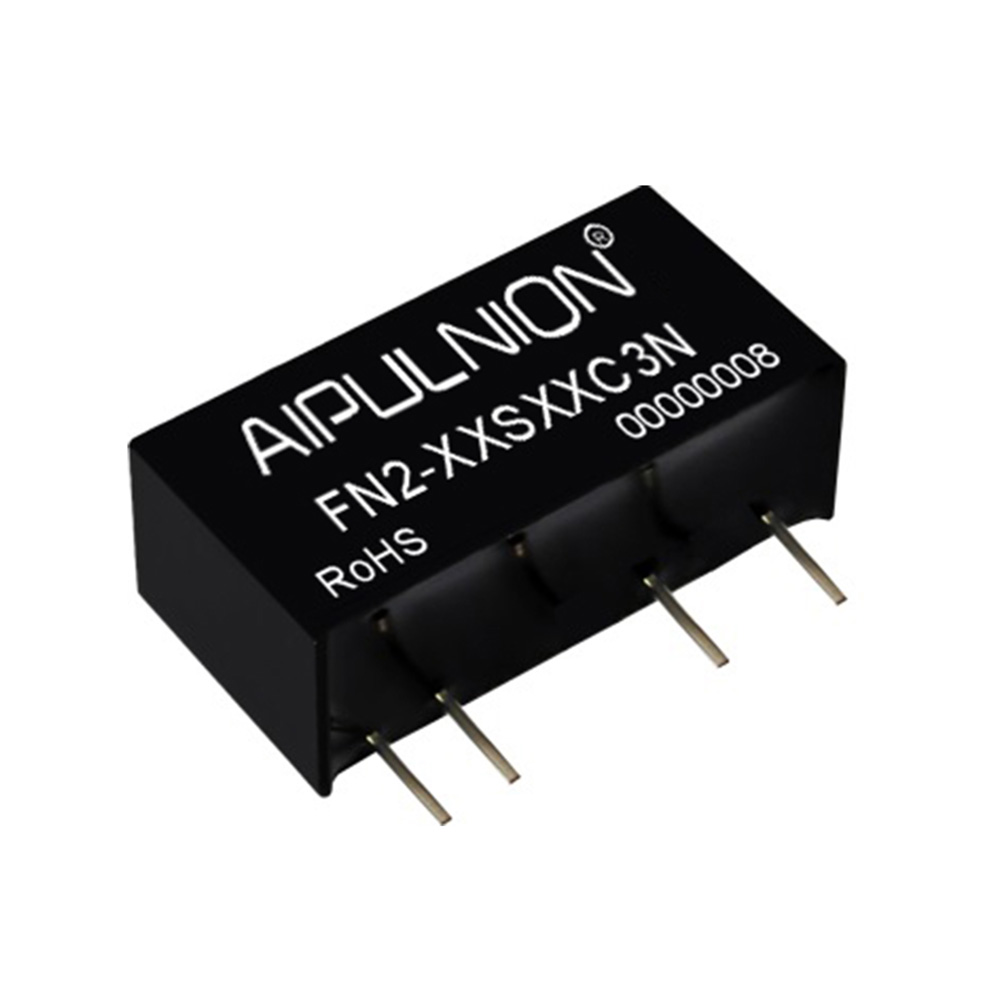

FN2-xxSxxC3N Series
FN2-xxSxxC3N Series from Aipu, 2W isolated dc-dc converter.
High-isolation 2W isolated dc-dc converter with 3000V dc isolation and efficiency up to 87%, designed for communication, control, and digital systems.
download the FN2-xxSxxC3N Series data sheet
Access detailed specifications, performance data, and technical drawings for the FN2-xxSxxC3N Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
FN2-xxSxxC3N Series dc-dc converters offer 2W of isolated, unregulated output power with efficiency up to 87% and isolation up to 3000V dc. Designed in a compact SIP package, these converters feature continuous short-circuit protection, low ripple and noise, and operate reliably from -40°C to +85°C. Ideal for use in instrumentation, relay drives, digital control, and signal isolation circuits. Certified to UL94 V-0 standard.
FEATURES
INDUSTRY
| Model | Input Voltage | Output Voltage | Power Rating |
|---|---|---|---|
| FN2-05S3V3C3N | 4.5-5.5V dc | 3.3V | 2W |
| FN2-05S05C3N | 4.5-5.5V dc | 5V | 2W |
| FN2-05S09C3N | 4.5-5.5V dc | 9V | 2W |
| FN2-05S12C3N | 4.5-5.5V dc | 12V | 2W |
| FN2-12S05C3N | 10.8-13.2V dc | 5V | 2W |
| FN2-12S12C3N | 10.8-13.2V dc | 12V | 2W |
| FN2-12S24C3N | 10.8-13.2V dc | 24V | 2W |
| FN2-24S09C3N | 21.6-26.4V dc | 9V | 2W |
| FN2-24S15C3N | 21.6-26.4V dc | 15V | 2W |
| FN2-24S24C3N | 21.6-26.4V dc | 24V | 2W |
