Power > VCCR300 Series

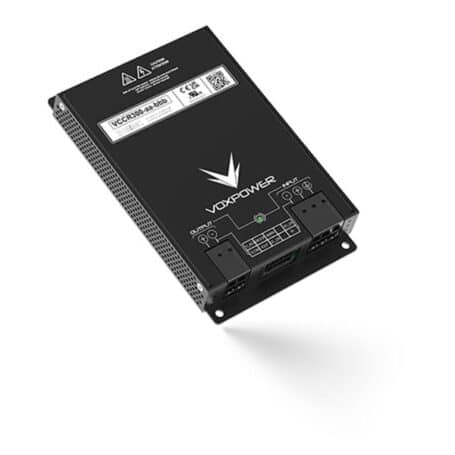

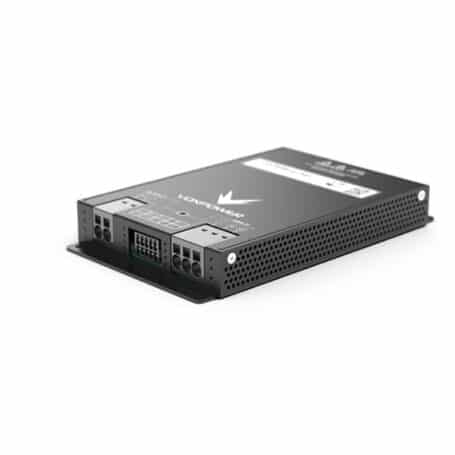

VCCR300 Series

Input: 33.6-160Vdc
Outputs: 12 to 48Vdc
Power: 300 Watt
Tamb: -40°C to +70°C
Dims: 188.7 x 116.8 x 25.4 mm
(IEC/UL62368-1 3RD Edition, EN50121-3-2, EN55035 and EN55032 class B Approved
5 Year warranty

Make an enquiry

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now


Announcing the VCCR300 series – it’s the latest in rugged, reliable DC/DC power sources. Imagine getting a 300 Watts from a compact, silent unit that’s just 7.43 x 4.6 x 1 inches. It’s perfect for demanding environments, handling everything from standard 48V to 110V railway batteries ( EN50155 compliant) to various Battery Electric Vehicles (BEVs) and tough industrial needs.

What’s cool about this series is its efficiency. It keeps things cool, literally, operating smoothly from -40°C to +70°C, and can even push to +85°C for short bursts.  We offer 12V, 24V, 36V, and 48V modules as standard, each adjustable from 90% to 125% to fit your needs.

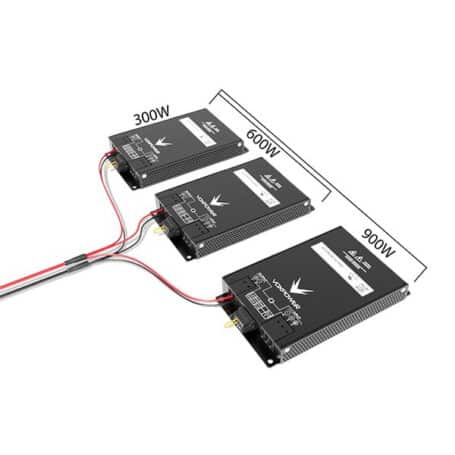

Safety and reliability? We’ve got you covered with over-voltage, over-current, and over-temperature protections. Plus, there’s a handy DC_OK signal to keep you informed about the power unit’s status. And if you need more power, you can easily parallel connect multiple units using the adjustable droop mode for equal load sharing.

Other perks include internal fusing, a 10ms full-power holdup standard, and a remote shutdown feature for low power standby. And yes, we’ve tailored the input undervoltage level to suit your specific needs.

Lastly, this series not only meets the latest railway (EN50155), military (MIL-STD-810G for Shock & Vibration), and industrial safety standards (IEC/UL62368-1 3RD Edition). Plus, we’re well above the bar for EMC emissions and immunity, complying with EN50121-3-2, EN55035, and EN55032 class B standards.



Click on the link below for an instant download.

  • VCCR300 Series Datasheet
  • VCCR300 Series User Manual
