TFT Displays

9” WVGA IPS TFT

9” WVGA IPS TFT LCD Display

Screen size: 9″
Aspect Ratio: 16:9
Active area: 196.8(W) x 118.08(H) mm
Resolution: 800 x 480
Interface: 8-bit LVDS
Brightness: 1000/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -40°C to +85°C
View Product
7” WVGA TFT LCD

7” WVGA TFT LCD Display

Screen Size: 7“
Aspect Ratio: 16:9
Active Area: 152.4(W) x 91.44(H) mm
Resolution: 800 x 480
Interface: TTL 24-bit RGB & 8-bit LVDS
Brightness: 320cd/m2 – 2500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +85°C
View Product
10.4” SVGA TFT LCD

10.4” SVGA TFT LCD Display

Screen size: 10.4″
Aspect Ratio: 4:3
Active area: 211.20(W) x 158.4(H) mm
Resolution: 800 x 600
Interface: 8-bit LVDS
Brightness: 350cd/m2 – 400cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C
View Product
9.7" USB-C Display

9.7″ XGA USB-C Display

Screen size: 9.7″
Aspect Ratio: 4:3
Active area: 196.608(W) x 147.456(H) mm
Resolution: 1024 x 768
Interface: USB-C
Brightness: 600cd/m2
Touch Panel Options: Resistive
Operating Temperature 0°C to +70°C
View Product
7” WSVGA IPS TFT

7” WSVGA IPS TFT LCD Display

Screen size: 7″
Aspect Ratio: 16:9
Active area: 154.21(W) x 85.92(H) mm
Resolution: 1024 x 600
Interface: TTL 24-bit RGB & 8-bit LVDS
Brightness: 400cd/m2 – 1500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C
View Product
10.1" USB-C Display

10.1″ WXGA USB-C Display

Screen size: 10.1″
Aspect Ratio: 16:10
Active area: 216.95(W) x 135.6(H) mm
Resolution: 1280 x 800
Interface: USB-C
Brightness: 550cd/m2 – 700cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature 0°C to +70°C
(Lower resolution available, see table below)
View Product
4.3” WQVGA IPS TFT

4.3” WQVGA IPS TFT LCD Display

Screen size: 4.3″
Aspect Ratio: 16:9
Active area: 95.04(W) x 53.85(H) mm
Resolution: 480 x 272
Interface: TTL 24-bit RGB
Brightness: 400cd/m2 – 1400cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°c to +70°C
View Product
7" USB-C Display

7″ WSVGA USB-C Display

Screen size: 7″
Aspect Ratio: 16:9
Active area: 154.21(W) x 85.92(H) mm
Resolution: 1024 x 600
Interface: USB-C
Brightness: 600cd/m2 – 700cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature 0°C to +70°C
View Product
1.77" TFT LCD Display

1.77″ QQVGA TFT LCD Display

Screen size: 1.77″
Aspect Ratio: 5:4
Active area: 28.03(W) x 35.04(H) mm
Resolution: 128 x 160
Interface: MCU 8080 / SPI 3-wire
Brightness: 200cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°c to +70°C
View Product
12.1” WXGA IPS TFT

12.1” WXGA IPS TFT LCD Display

Screen size: 12.1″
Aspect Ratio: 16:10
Active area: 261.12(W) x 163.2(H) mm
Resolution: 1280 x 800
Interface: 8-bit LVDS
Brightness: 480cd/m2 – 2000cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +80°C
View Product
11.6” FHD IPS TFT

11.6” FHD IPS TFT LCD Display

Screen size: 11.6″
Aspect Ratio: 16:9
Active area: 256.32(W) x 144.18(H) mm
Resolution: 1920 x 1080
Interface: 8-bit LVDS & eDP
Brightness: 900cd/m2 – 1500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C
View Product

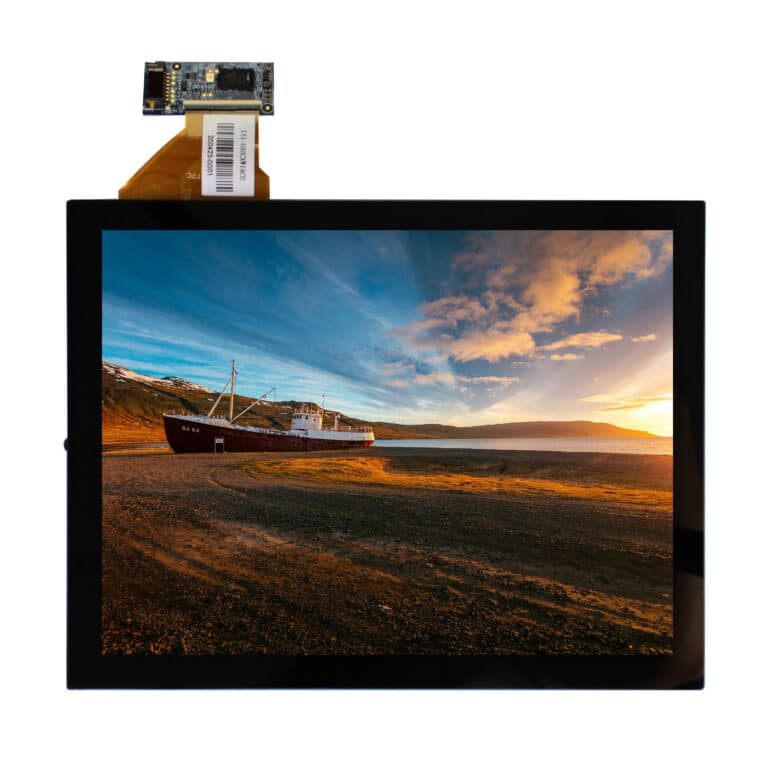

8” SVGA TFT LCD

8” SVGA TFT LCD Display

Screen Size: 8″
Aspect Ratio: 4:3
Active Area: 162.0(W) x 121.5(H) mm
Resolution: 800 x 600
Interface: TTL 18-bit RGB & 6-bit LVDS
Brightness: 420cd/m2 – 750cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C
View Product
