TFT Displays

7” HDMI TFT LCD Display

Screen Size: 7″
Aspect Ratio: 16:9
Active Area: 154.21(W) x 85.92(H) mm
Resolution: 1024 x 600
Interface: HDMI
Brightness: 560cd/m2 – 1500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

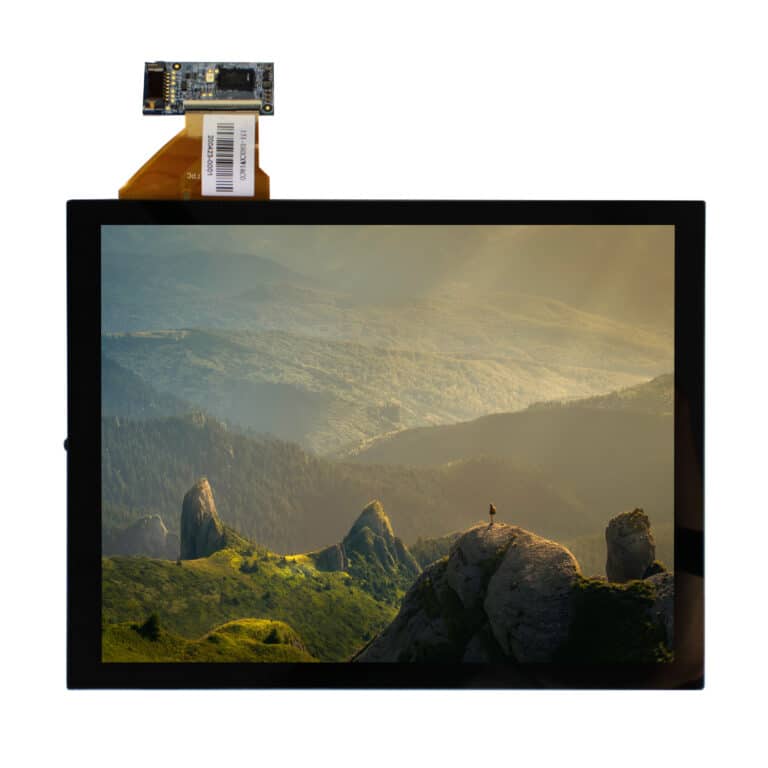

8” HD IPS TFT LCD Display

Screen size: 8″
Aspect Ratio: 16:9
Active area: 177.02(W) x 99.58(H) mm
Resolution: 1280 x 720
Interface: 8-Bit LVDS
Brightness: 600cd/m2 – 1200cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

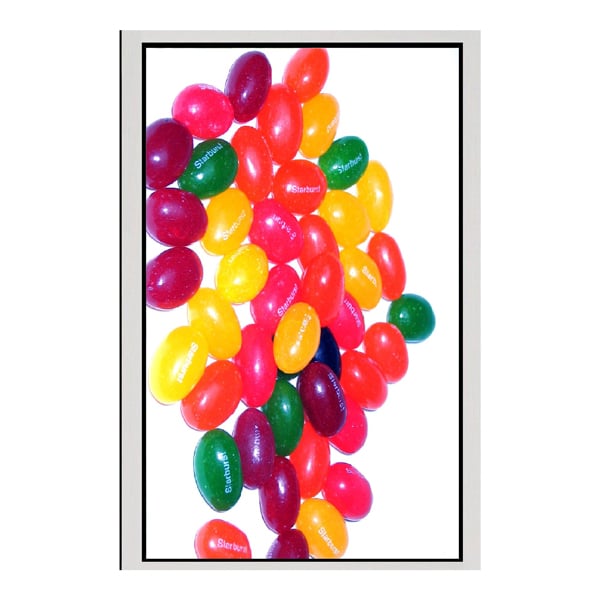

5″ Portrait IPS TFT LCD Display

Screen size: 5.0″ HD
Active area: 62.1(W) x 110.4(H) mm
Resolution: 720 x 1280 RGB Pixels
Interface: 4 Lane MIPI DSI

15″ HDMI TFT LCD Display

Screen size: 15″
Aspect Ratio: 4:3
Active area: 304.1(W) x 228.1(H) mm
Resolution: 1024 x 768
Interface: HDMI
Brightness: 500cd/m2 – 1500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +80°C

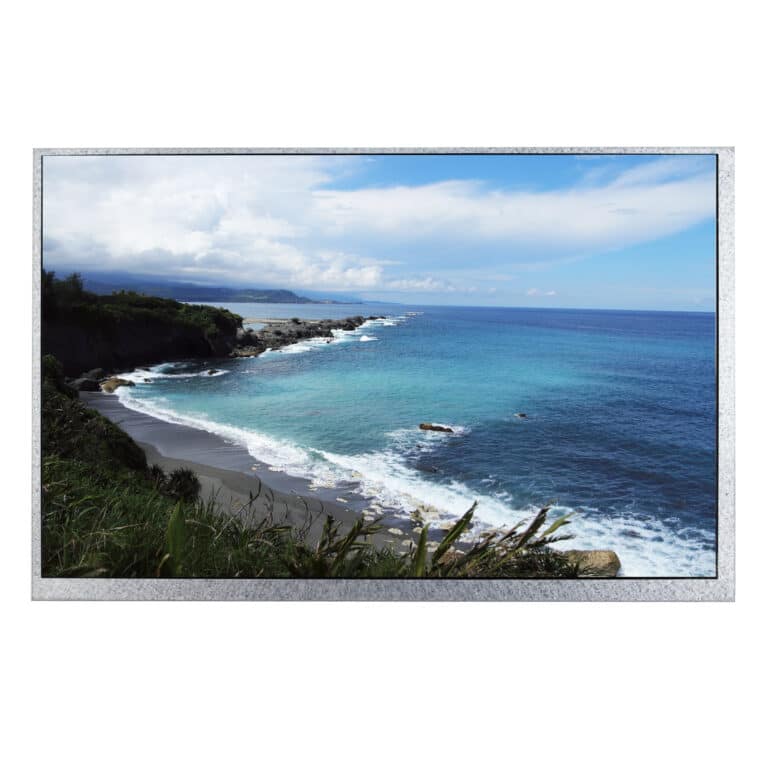

11.6″ HDMI TFT LCD Display

Screen size: 11.6″
Aspect Ratio: 16:9
Active area: 256.32(W) x 144.18(H) mm
Resolution: 1920 x 1080
Interface: HDMI
Brightness: 900cd/m2 – 1500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

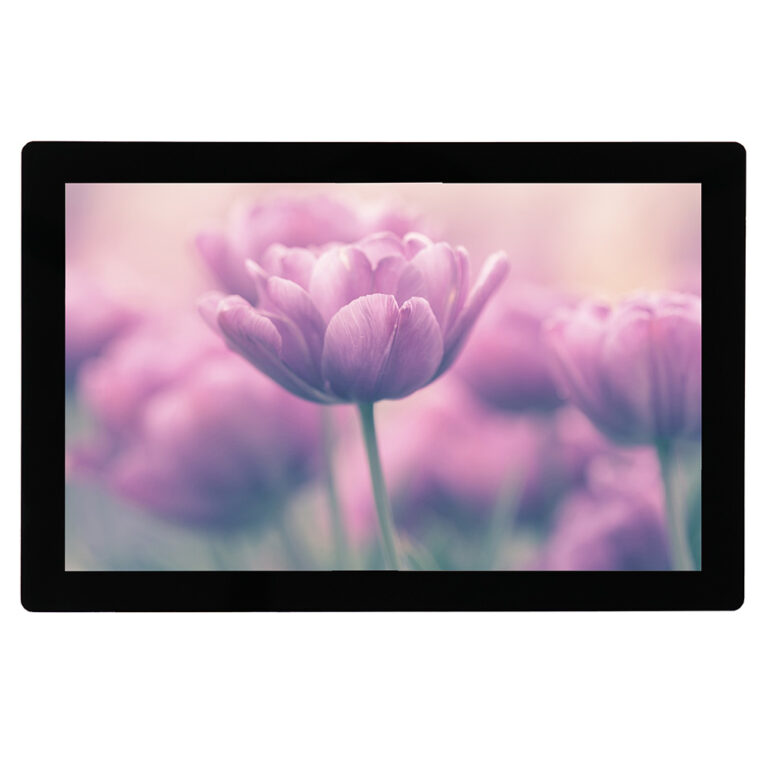

10.1″ WXGA USB-C Display

Screen size: 10.1″
Aspect Ratio: 16:10
Active area: 216.95(W) x 135.6(H) mm
Resolution: 1280 x 800
Interface: USB-C
Brightness: 550cd/m2 – 700cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature 0°C to +70°C
(Lower resolution available, see table below)

18.5″ HDMI TFT LCD Display

Screen size: 18.5″
Aspect Ratio: 16:9
Active area: 408.96(W) x 230.04(H) mm
Resolution: 1920 x 1080
Interface: HDMI
Brightness: 850cd/m2 – 1000cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

8” XGA IPS TFT LCD Display

Screen Size: 8″
Aspect Ratio: 4:3
Active Area: 162.0(W) x 121.5(H) mm
Resolution: 1024 x 768
Interface: 8-bit LVDS
Brightness: 500cd/m2 – 1200cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

21.5” FHD IPS TFT LCD Display

Screen size: 21.5″
Aspect Ratio: 16:9
Active Area: 476.06(W) x 267.79(H)mm
Resolution: 1920 x 1080
Interface: 8-bit LVDS
Brightness: 450cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -10ºC to +60ºC

12.1″ Widescreen HDMI TFT LCD Display

Screen size: 12.1″
Aspect Ratio: 16:10
Active area: 261.12(W) x 163.20(H) mm
Resolution: 1280 x 800
Interface: HDMI
Brightness: 500cd/m2 – 2000cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +80°C

3.5” QVGA IPS TFT LCD Display

Screen Size: 3.5″ QVGA
Aspect Ratio: 4:3
Active Area: 70.08(W) x 52.56(H) mm
Resolution: 320 x 240
Interface: TTL 24-bit RGB
Brightness: 400cd/m2 – 1200cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

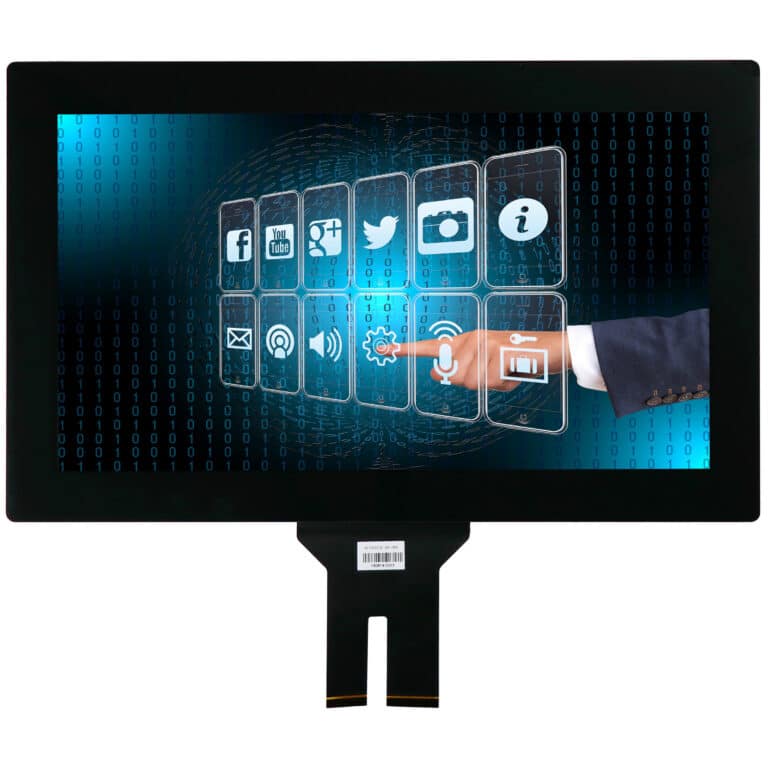

15.6″ HDMI TFT LCD Display

Screen size: 15.6″
Aspect Ratio: 16:9
Active area: 344.16(W) x 193.59(H) mm
Resolution: 1920 x 1080
Interface: HDMI
Brightness: 850cd/m2 – 1500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +80°C
