DC-AC Inverters
TDX-3300 Series
Input: 400-480 VAC 3ph / 400-740 VDC
Outputs: 400V 3ph (5 to 75 Hz)
Power: 3300W
Tamb: -40 to 55°C
Dims: 84.8 x 248.4 x 421.59 mm
Meets EN50155 / EN45545-2
5 Year Warranty
Outputs: 400V 3ph (5 to 75 Hz)
Power: 3300W
Tamb: -40 to 55°C
Dims: 84.8 x 248.4 x 421.59 mm
Meets EN50155 / EN45545-2
5 Year Warranty

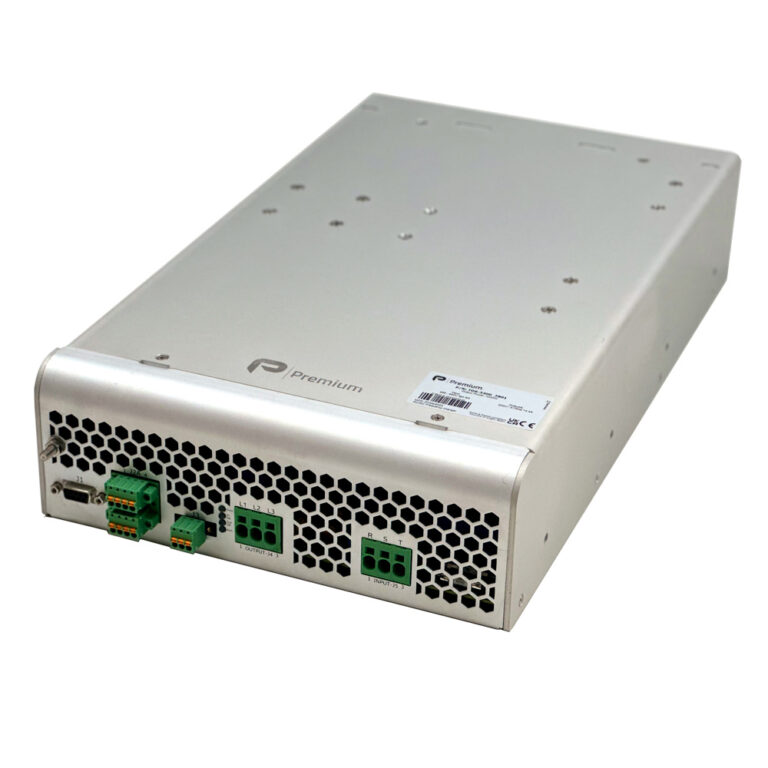

TDS-3300 Series
Input: 400-480 VAC 3ph / 400-740 VDC
Output: 230V 1ph (5 to 75 Hz)
Power: 3300W
Tamb: -40 to 55°C
Dims: 84.8 x 248.4 x 421.59 mm
Meets EN50155 / EN45545-2
5 Year Warranty
Output: 230V 1ph (5 to 75 Hz)
Power: 3300W
Tamb: -40 to 55°C
Dims: 84.8 x 248.4 x 421.59 mm
Meets EN50155 / EN45545-2
5 Year Warranty
OPS-260 Series
Input: 12/24/36/48/72/110Vdc
Outputs: 120 or 230Vrms ac
Power: 220W
Tamb: -40 to 70°C
Dims: 67 x 249 x 135mm – Sealed to IP66
EN45545-2 / EN50155 Approved
Made in Spain
Outputs: 120 or 230Vrms ac
Power: 220W
Tamb: -40 to 70°C
Dims: 67 x 249 x 135mm – Sealed to IP66
EN45545-2 / EN50155 Approved
Made in Spain
OVX-6400 Series
Input: 400-900Vdc
Outputs: 400Vac 3ph
Power: 6400VA / 8000W pk
Tamb: -25 to 80°C
Dims: 85.8 x 372 x 450.3 mm
Meets EN50124-1 / EN50155 / EN62368-1
Made in Spain
Outputs: 400Vac 3ph
Power: 6400VA / 8000W pk
Tamb: -25 to 80°C
Dims: 85.8 x 372 x 450.3 mm
Meets EN50124-1 / EN50155 / EN62368-1
Made in Spain
ACB-3000 Series Power Transfer Switch
Input: 230Vac or 120Vac (50hz)
Outputs: 230Vac & 120Vac
Power: 3000VA
Tamb: -40 to +85°C
Dims: 78,34 x 60 x 200mm
IEC 62368-1 Approved
Made in Spain
Outputs: 230Vac & 120Vac
Power: 3000VA
Tamb: -40 to +85°C
Dims: 78,34 x 60 x 200mm
IEC 62368-1 Approved
Made in Spain
ACI-3000 Series – Inrush Limiter
Inputs: 12/24/36/48/72/110Vdc
Power: 3000 VA
Tamb: -40 to +80°C
EN 62368-1 Approved
5 Year Warranty
Made in Spain
Power: 3000 VA
Tamb: -40 to +80°C
EN 62368-1 Approved
5 Year Warranty
Made in Spain
ODX-6000 Series
Input: 24/48/72/110Vdc
Outputs: 400V ac
Power: 4500 – 6000VA
Tamb: -25 to 70°C
Dims: 455 x 260 x 84.5mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 400V ac
Power: 4500 – 6000VA
Tamb: -25 to 70°C
Dims: 455 x 260 x 84.5mm
EN62368 / EN50155 Approved
Made in Spain
ODX-1300 Series
Input: 24/72/110Vdc
Outputs: 230 or 400Vrms ac
Power: 1300 VA
Tamb: -25 to 70°C
Dims: 315 x 178 x 66.5mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 230 or 400Vrms ac
Power: 1300 VA
Tamb: -25 to 70°C
Dims: 315 x 178 x 66.5mm
EN62368 / EN50155 Approved
Made in Spain

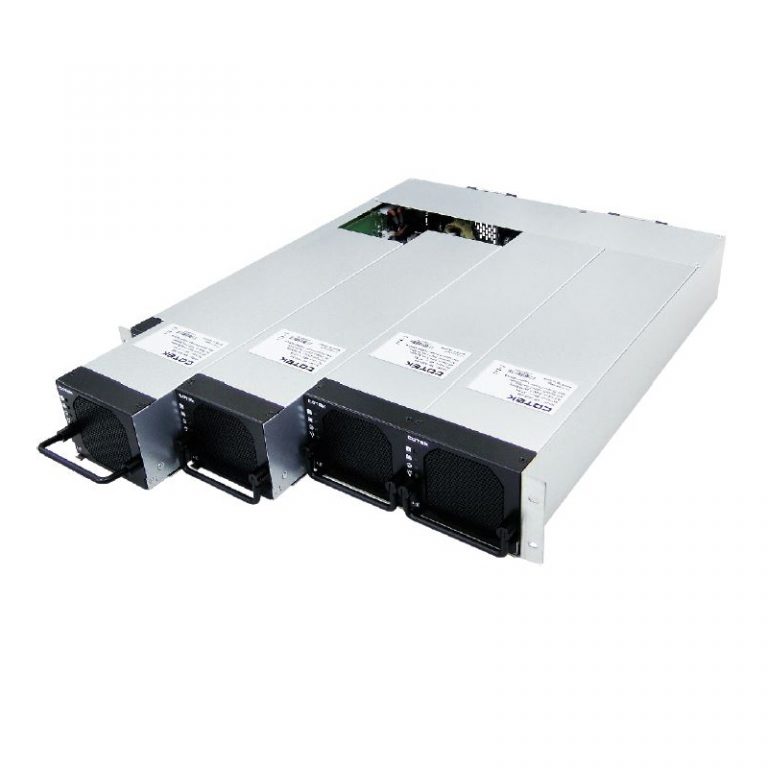

SR1600-Plus Series
Input: 24 or 48Vdc
Outputs: 120 or 230Vrms ac
Power: 6400 VA
Tamb: -25 to 40°C
Dims: 2U x 510mm
CE / EN60950 Approved
Outputs: 120 or 230Vrms ac
Power: 6400 VA
Tamb: -25 to 40°C
Dims: 2U x 510mm
CE / EN60950 Approved
SR1000T Series
Input: 24 or 48Vdc
Outputs: 120 or 230Vrms ac
Power: 1000 VA
Tamb: 0 to 50°C
Dims: 1U x 345mm
CE / EN60950 Approved
Outputs: 120 or 230Vrms ac
Power: 1000 VA
Tamb: 0 to 50°C
Dims: 1U x 345mm
CE / EN60950 Approved
OCS-260 Series
Input: 12/24/36/48/72/110Vdc
Outputs: 120 or 230Vrms ac
Power: 260 VA
Tamb: -25 to 70°C
Dims: 220 x 100 x 39.5mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 120 or 230Vrms ac
Power: 260 VA
Tamb: -25 to 70°C
Dims: 220 x 100 x 39.5mm
EN62368 / EN50155 Approved
Made in Spain
ODS-750 Series
Input: 12/24/36/48/72/110Vdc
Outputs: 120 or 230Vrms ac
Power: 750 VA
Tamb: -25 to 70°C
Dims: 292 x 130 x 49.6mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 120 or 230Vrms ac
Power: 750 VA
Tamb: -25 to 70°C
Dims: 292 x 130 x 49.6mm
EN62368 / EN50155 Approved
Made in Spain
