TFT Displays

9.7″ XGA USB-C Display

Screen size: 9.7″
Aspect Ratio: 4:3
Active area: 196.608(W) x 147.456(H) mm
Resolution: 1024 x 768
Interface: USB-C
Brightness: 600cd/m2
Touch Panel Options: Resistive
Operating Temperature 0°C to +70°C

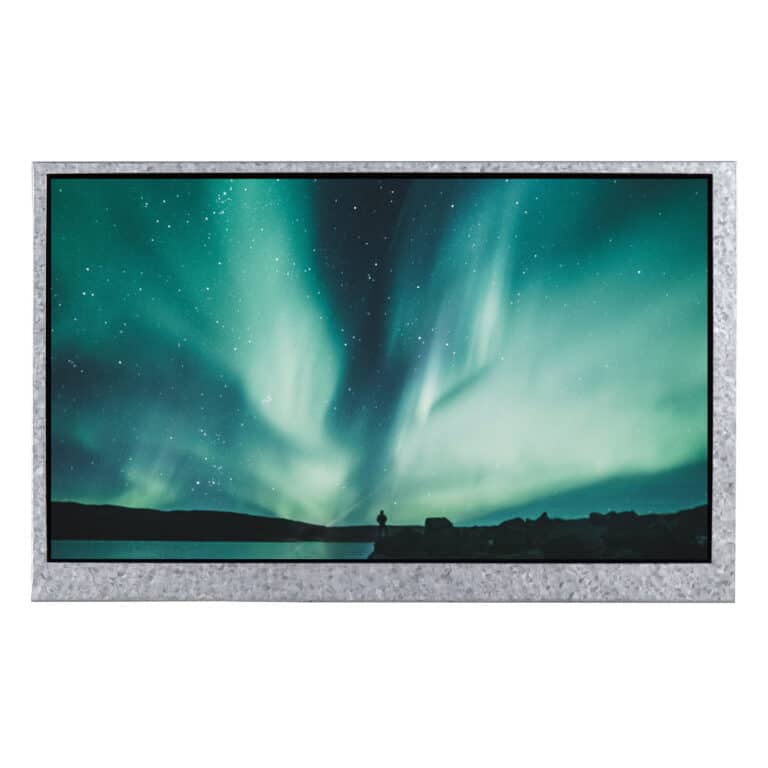

9” WVGA IPS TFT LCD Display

Screen size: 9″
Aspect Ratio: 16:9
Active area: 196.8(W) x 118.08(H) mm
Resolution: 800 x 480
Interface: 8-bit LVDS
Brightness: 1000/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -40°C to +85°C

7″ Open Frame Monitor

Screen size: 7″ (16:9)
Active area: 154.21(W) × 85.92(H) mm
Resolution: 1024 x 600
Interface: HDMI
Mounting: VESA or Rear Mount

4.3″ HDMI TFT LCD Display

Screen size: 4.3″ Widescreen WVGA
Aspect Ratio: 16:9
Active area: 95.04(W) x 53.86(H) mm
Resolution: 800 x 480
Interface: HDMI
Brightness: 450cd/m2 – 1100cd/m2
Touch Panel Options: PCAP & Resistive
Operating temperature range -30°C to +80°C

15.6″ HDMI TFT LCD Display

Screen size: 15.6″
Aspect Ratio: 16:9
Active area: 344.16(W) x 193.59(H) mm
Resolution: 1920 x 1080
Interface: HDMI
Brightness: 850cd/m2 – 1500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +80°C

18.5″ HDMI TFT LCD Display

Screen size: 18.5″
Aspect Ratio: 16:9
Active area: 408.96(W) x 230.04(H) mm
Resolution: 1920 x 1080
Interface: HDMI
Brightness: 850cd/m2 – 1000cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

10.1” WSVGA TFT LCD Display

Screen size: 10.1″
Aspect Ratio: 16:9
Active area: 222.72(W) x 125.28(H) mm
Resolution: 1280 x 800
Interface: TTL 24-bit RGB & 8-bit LVDS
Brightness: 300cd/m2 – 400cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

10.1” WUXGA IPS TFT LCD Display

Screen size: 10.1″
Aspect Ratio: 16:10
Active area: 216.81(W) x 135.5(H) mm
Resolution: 1920 x 1200
Interface: 8-bit LVDS
Brightness: 500cd/m2 – 1500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

21.5″ HDMI TFT LCD Display

Screen Size: 21.5″
Aspect Ratio: 16:9
Active Area: 476.06(W) x 267.79(H) mm
Resolution: 1920 x 1080
Interface: HDMI
Brightness: 500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -10°C to +60°C

10.4” SVGA TFT LCD Display

Screen size: 10.4″
Aspect Ratio: 4:3
Active area: 211.20(W) x 158.4(H) mm
Resolution: 800 x 600
Interface: 8-bit LVDS
Brightness: 350cd/m2 – 400cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

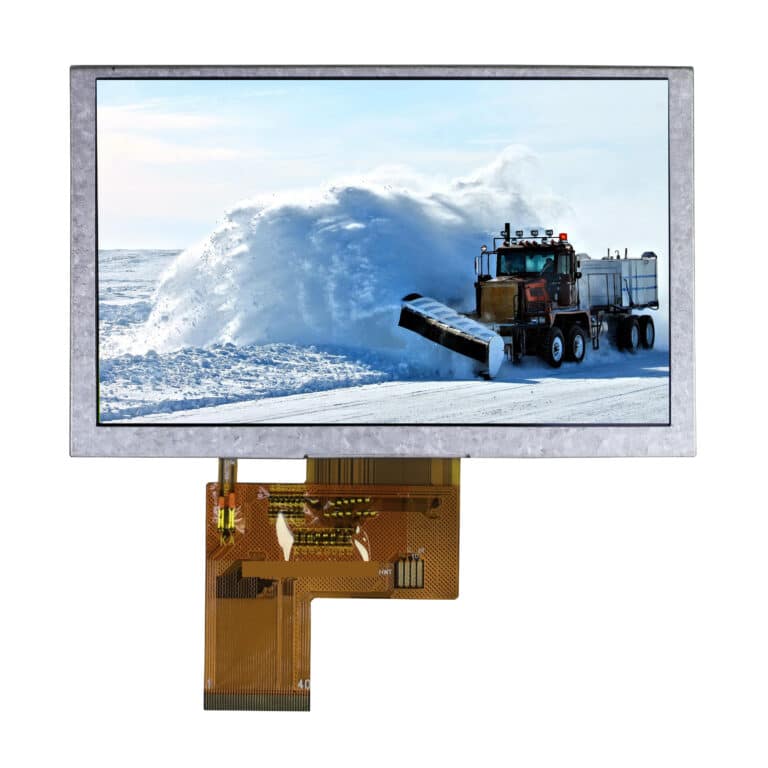

5” WVGA TFT LCD Display

Screen size: 5″
Aspect Ratio: 16:9
Active area: 108(W) x 64.8(H) mm
Resolution: 800 x 480
Interface: TTL 24-bit RGB
Brightness: 460cd/m2
Touch Panel Options: PCAP
Operating Temperature -20°C to +70°C

2.8” QVGA IPS TFT LCD Display

Screen size: 2.8″
Aspect Ratio: 3:4
Active area: 43.20(W) x 57.6(H) mm
Resolution: 240 x 320
Interface: MCU / SPI-3 Wire
Brightness: 1000cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C
