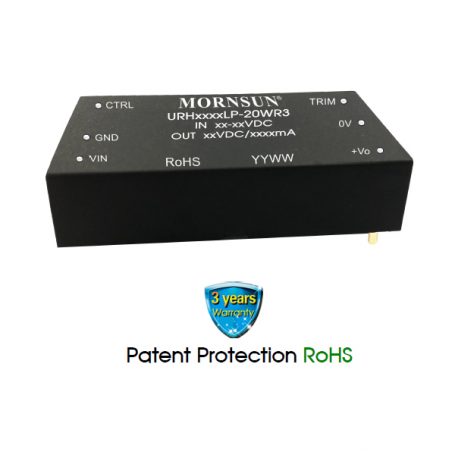

URH_LP-20WR3 Series

Input: 9-36V or 18-75V dc
Outputs: 3V to 24V dc
Power: 20 Watt
Tamb: -40 to +85°C
Dims: 2" x 1" - 50.8 x 25.4 x 12.0mm
5000V Isolation

Make an enquiry

Request a sample

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Email
This field is for validation purposes and should be left unchanged.

Request a Sample

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

The single output Mornsun URH_LP-20WR3 series are isolated 20W dc dc products with 4:1 input voltage. They feature efficiency up to 89%, 6000Vdc isolation, operating temperature of -40°C to +85°C, input under-voltage protection, output over-voltage, over-current, short circuit protection and EMI meets CISPR22/EN55022 Class A

The URH_LP-20WR3 Meets 2xMOPP EN60601-1 third edition medical certification standard making them suitable for applications in medical, industrial control, electric power, instrumentation and communication fields.

feature list

20W isolated, regulated single output, 4:1 input range
Efficiency up to 89%
Input voltage range: 9 to 36Vdc; 18 to 75Vdc
No-load power: 0.12W
Input under voltage/short circuit/over temp/
output over voltage/over current protection
EN60601-1 Approval (2MOPP)
Isolation: 6.0kVdc
Transformer creepage 8mm, Transformer clearance 8mm
Low leakage current < 5 μA
Weight: 27g
MTBF: 1000k hrs
Operating temperature range: -40°C to +85°C
Standard version: PCB mount with industry standard pinout

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
URH2403LP-20WR3	9V-36V	3V3	18.5W
URH2405LP-20WR3	9V-36V	5V	20W
URH2412LP-20WR3	9V-36V	12V	20W
URH2415LP-20WR3	9V-36V	15V	20W
URH2424LP-20WR3	9V-36V	24V	20W
URH4803LP-20WR3	18V-75V	3V3	18.5W
URH4805LP-20WR3	18V-75V	5V	20W
URH4812LP-20WR3	18V-75V	12V	20W
URH4815LP-20WR3	18V-75V	15V	20W
URH4824LP-20WR3	18V-75V	24V	20W

Downloads

Click on the link below for an instant download.

URH_LP-20WR3 datasheet
