APPLICATION

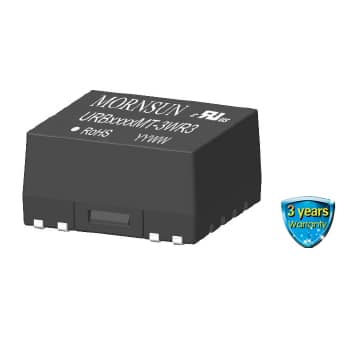

The single output Mornsun URB_MT-3WR3 series are surface mount, isolated 3W dc dc products with 4:1 input voltage. They feature efficiency up to 88%, 1500Vdc isolation, operating temperature of -40° to +85°C, input under-voltage protection, output over-voltage, over-current, short circuit protection, making them suitable for applications in medical, industrial control, electric power, instrumentation and communication field
feature list
Ultra wide input voltage range (4:1)
High efficiency up to 84%
No-load power consumption as low as 0.10W
Isolation voltage:1.5K VDC
Input Under-voltage Protection, output short-circuit protection , over-current protection
Operating temperature range: -40℃ to +85℃
International standard pin-out
IEC60950 , UL60950 , EN60950 approval
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| URB2403MT-3WR3 | 9V-36V | 3V3 | 2.4W |
| URB2405MT-3WR3 | 9V-36V | 5V | 3W |
| URB2409MT-3WR3 | 9V-36V | 9V | 3W |
| URB2412MT-3WR3 | 9V-36V | 12V | 3W |
| URB2415MT-3WR3 | 9V-36V | 15V | 3W |
| URB2424MT-3WR3 | 9V-36V | 24V | 3W |
| URB4803MT-3WR3 | 18V-75V | 3V3 | 2.4W |
| URB4805MT-3WR3 | 18V-75V | 5V | 3W |
| URB4812MT-3WR3 | 18V-75V | 12V | 3W |
| URB4815MT-3WR3 | 18V-75V | 15V | 3W |
| URB4824MT-3WR3 | 18V-75V | 24V | 3W |
