Input: 90 - 180 VAC/180 - 264 VAC
Outputs: 12V dc
Tamb: 0 to +55°C
Dims: 195 x 86 x 40.0 mm
Titanium efficiency / Best in class
Make an Enquiry

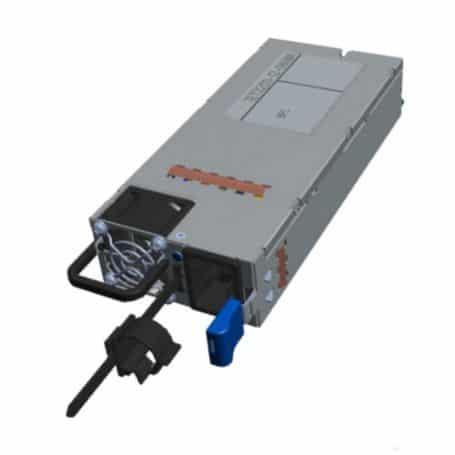

The TET2200-12-086 Series is a fully DSP controlled, highly efficient front-end power supply. It incorporates resonant-soft-switching technology and interleaved power trains to reduce component stresses, providing increased system reliability and very high efficiency. With a wide input operating voltage range and minimal linear derating of output power with respect to ambient temperature, the TET2200-12-86NA maximizes power availability in demanding server, switch, and router applications. The power supply is fan cooled and ideally suited for server integration with a matching airflow path.
The PFC stage is digitally controlled using a state-of-the-art digital signal processing algorithm to guarantee best efficiency and unity power factor over a wide operating range. The DC-DC stage uses soft switching resonant techniques in conjunction with synchronous rectification. An active OR-ing device on the output ensures no reverse load current and renders the supply ideally suited for operation in redundant power systems. The always-on +12V standby output provides power to external power distribution and management controllers. Its protection with an active OR-ing device provides for maximum reliability.
Status information is provided with front-panel LED. In addition, the power supply can be monitored and controlled (i.e. fan speed setpoint) via I²C communication interface with Power Management Bus protocol. It allows full monitoring of the supply, including input and output voltage, current, power, and inside temperatures. The same I²C bus supports the bootloader to allow field update of the firmware in the DSP controllers.
Cooling is managed by a fan, controlled by the DSP controller. The fan speed is adjusted automatically depending on the actual power demand and supply temperature and can be overridden through the I²C buses.
Best-in-class, 80 PLUS certified “Titanium” efficiency
Wide input voltage range: 180 - 264 VAC / 2200 W, 90 - 180 VAC /1200 W
AC input with power factor correction
Always-on 42 W standby output (12 V / 3.5 A)
Parallel operation with active current sharing through analogue bus
Full digital controls for improved performance
High density design: 53.1 W/in3
Small form factor: 86.3 x 39.3 x 196.5 mm (3.4 x 1.5 x 7.7 in)
Up to 400 kHz
I2C communication interface with Power Management Bus protocol for monitoring, control, and firmware update via bootloader
Overtemperature, output overvoltage and overcurrent protection
Status LED with fault signalling
|MODEL NUMBER||INPUT RANGE||OUTPUT||POWER|
(Rear to front airflow)
(Front to rear airflow)
