Input: 3V3 or 5V dc
Outputs: 5V dc isolated
CAN Bus Transceiver - High Speed
Tamb: -40°C to +105°C
Dims: DIP10 (18.20 x 14.80mm)
Surge protection to ±4kV
Make an Enquiry
Request a Sample

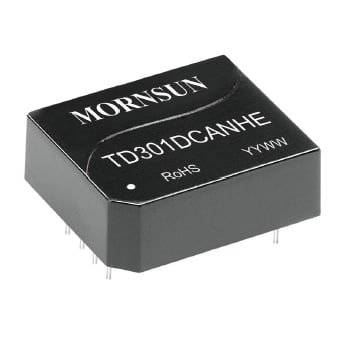

High Speed TD301DCANH / TD501DCANH converts logic level signals to CAN Bus protocol differential level for signal isolation with integrated power isolation, signal isolation, CAN Bus communication and bus protection in a single CAN Bus protocol transceiver module.
The product comes with high isolation dc dc converter, with 2500Vdc electrical isolation and surge protection to ±4kV built in as standard. Products can be easily embedded in the user equipment to easily achieve CAN Bus protocol network conversion, all in a single surface mount package.
Single CAN Bus isolated transceiver module
Integrated high efficiency isolated DC/DC converter
Two port isolation(2.5kVDC)
High baud rate up to 1Mbps
Operating temperature range: -40℃ to +85℃
The bus is able to support up to 110 nodes
Fully integrated isolation and ESD bus protection in one package
|MODEL NUMBER||INPUT RANGE||BAUD RATE||STATIC CURRENT||MAX OPERATING CURRENT||No. NODES|
|TD301DCANH||3.15-3.45Vdc||20k to 1Mbs||25mA||90mA||110|
|TD501DCANH||4.75-5.25Vdc||20k to 1Mbs||20mA||75mA||110|
