Input: 3V3 or 5V dc
Outputs: 5V dc isolated
RS232 Transceiver - Single
Tamb: -40°C to +85°C
Dims: DIP10 (20.00 x 17.00mm)
Baud Rate: 115kbps
Make an Enquiry
Request a Sample

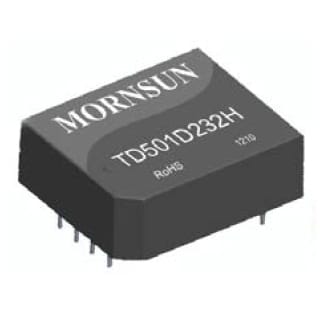

High speed 232 isolation transceivers, the TD301D232H/ TD501D232H series are fully integrated RS232 transceiver module with integrated isolated dc dc power, signal isolation and RS232 transceiver chip.
The main function is to convert TTL level signals to RS232 protocol, with active signal isolation. The product has an internal constant-voltage isolated (2500V isolation) dc power source.
Meets EIA/TIA-232-F standard
High baud rate up to 115200bps
Isolation voltage: 2500 Vdc
Integrated isolated DC/DC converter
Operating temperature range: -40°C to +85°C
|MODEL NUMBER||INPUT RANGE||BAUD RATE||STATIC CURRENT|
