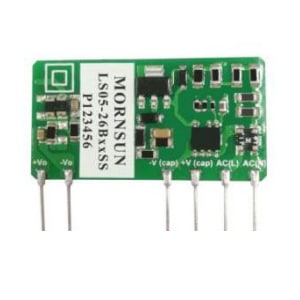

LS05-26B Series

Input: 90-528Vac
Outputs 3V3 to 24V
Power: 5 Watt
Tamb: -40 to 85°C
Dims: 44.5 x 13 x 24.0mm
UL / CE EN62368

Make an enquiry
Request a sample
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
X

Request a Sample

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now

APPLICATION

LS05 26B Series are high efficiency green power modules with miniature packaging provided by Mornsun. The LS05 26B series features; AC & DC ultra wide input voltage, high efficiency, high reliability, low loss, safety isolation to meet EN62368 standards. The LS05 series are particularly suitable for applications including industrial, electric power, instrumentation & smart home.

MODEL NUMBERINPUT RANGEOUTPUTPOWER
LS05-26B03SS(-F)90-528VAC
100-745VDC
3V2.8W
LS05-26B05SS(-F)90-528VAC
100-745VDC
5V4.2W
LS05-26B09SS(-F)90-528VAC
100-745VDC
9V5W
LS05-26B12SS(-F)90-528VAC
100-745VDC
12V5W
LS05-26B15SS(-F)90-528VAC
100-745VDC
15V5W
LS05-26B24SS(-F)90-528VAC
100-745VDC
24V5W

Downloads

Click on the link below for an instant download.

  • LS05-26BxxSS(-F)
