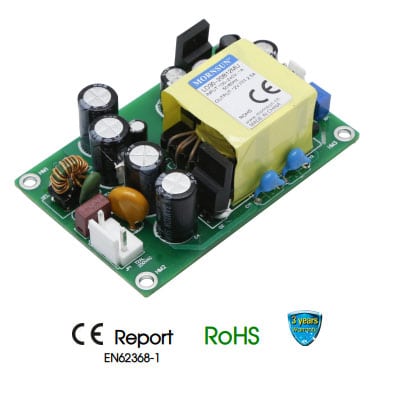

LO30-20BxxMU Series

Input: 80 - 264VAC / 100 - 370VDC
Outputs: 3V3 to 48V
Power: 30 Watts
Tamb: -30°C to +85°C
Dims: 76.20 x 50.80 x 26.50mm (3" x 2" x 1.04")
Medical & ITE Approvals (EN60601 2xMOPP, UL/EN62368-1 EN60335 Approved)
3 Year Warranty

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

LO30-20BxxMU series is one of Mornsun’s AC-DC miniaturised open frame power supplies and suitable for all kinds of ITE and medical applications.

The LO30-20BxxSMU series features universal AC input and at the same time accepts DC input voltages. They are cost-effective, high efficiency, high reliability with double or reinforced insulation.

They offer excellent EMC and safety performance, meeting UL/IEC/EN/ES60601, UL/EN/IEC62368, IEC/EN60335, IEC/EN61558, GB4943 standards and are widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home, medical applications.

feature list

High Power Density
Universal 80 - 264VAC or 100 - 370VDC input voltage
Compact size:
3” × 2” × 1.04” Open Frame
Operating ambient temperature range: -30°C to +85°C
High I/O isolation test voltage up to 4000VAC
Operating altitude up to 5000m
Extremely low leakage current＜0.075mA
Stand-by power consumption＜0.3W
Output short circuit, over-current, over-voltage, over-temperature protection
Efficiency up to 90%
3 Year Warranty
Safety Certified to IEC/EN/UL62368-1, IEC/EN60335-1,
IEC/EN61558-1, GB4943-1, IEC/EN/ES60601-1(2 × MOPP)

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
LO30-20B03MU	80 - 264VAC 120 - 370VDC	3V3	20 Watts
LO30-20B05MU	80 - 264VAC 120 - 370VDC	5V	30 Watts
LO30-20B12MU	80 - 264VAC 120 - 370VDC	12V	30 Watts
LO30-20B15MU	80 - 264VAC 120 - 370VDC	15V	30 Watts
LO30-20B24MU	80 - 264VAC 120 - 370VDC	24V	30 Watts
LO30-20B36MU	80 - 264VAC 120 - 370VDC	36V	30 Watts
LO30-20B48MU	80 - 264VAC 120 - 370VDC	48V	30 Watts

Downloads

Click on the link below for an instant download.

LO30 Series Datasheet
