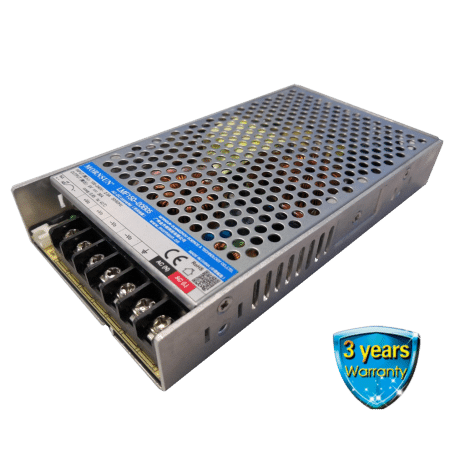

LMF150-20Bxx Series

Input: 85 - 264Vac
Outputs: 5 to 48V
Power: 150 Watt
Tamb: -30 to +70°C
Dims: 179 x 99 x 30mm
CE EN62368 Approved
Built in PFC Function

Make an enquiry

Request a sample

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.

Request a Sample

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

LMF150-20Bxx Series is one of Mornsun’s enclosed AC-DC switching power supply.

It features universal AC input and at the same time accepts DC input voltages up to 373V DC. The LMF150 series are extremely cost-effective and available on short lead-times. They have built-in active PFC function, high efficiency, and high reliability as standard.

These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC62368, UL62368, EN62368, EN60335, GB4943 standards and are widely used in industrial applications including; Architectural lighting, street light control, electricity telemetry, security, telecommunications, smart home and many more.

feature list

Universal 85 - 264VAC or 120 - 373VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range：-30°C to +70°C
Built-in PFC function
High I/O isolation test voltage up to 4000VAC
Low ripple & noise
Output short circuit, over-current, over-voltage protection (built-in constant current limiting circuit)
Safety according to IEC/EN62368/EN60335/GB4943 (CE/CCC pending)
Upcoming UL approval year 2020
Over-voltage class III (designed to meet EN61558)
Withstand 300VAC surge input for 5s

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
LMF150-20B05C	85-264VAC 120-373VDC	5V	150W
LMF150-20B12C	85-264VAC 120-373VDC	12V	150W
LMF150-20B15C	85-264VAC 120-373VDC	15V	150W
LMF150-20B24C	85-264VAC 120-373VDC	24V	150W
LMF150-20B48C	85-264VAC 120-373VDC	48V	150W
Add suffix "Q" for conformal coating

Downloads

Click on the link below for an instant download.

LMF150-20Bxx Series Datasheet
