Input: 85 - 264Vac
Outputs: 5 to 48V
Power: 75 Watt
Tamb: -30 to +70°C
Dims: 99 x 97 x 30mm
CE EN62368 Approved
Very low cost
Make an Enquiry
Request a Sample

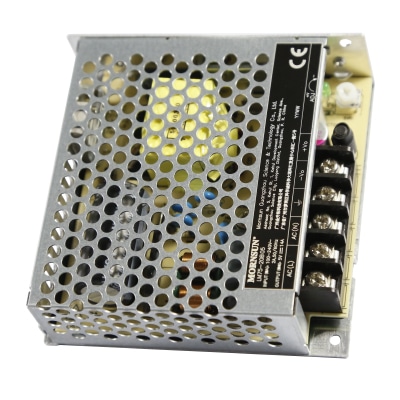

LM75-20Bxx series is a low cost, high specification enclosed AC-DC switching power supply. It features universal AC input and also accepts a DC input voltage. The LM75-20Bxx series is a cost-effective, low no load power consumption, high efficiency and high reliability power supply. These converters offer excellent EMC performance and meet the requirements of IEC/EN61000-4, CISPR32/EN55032, IEC62368, UL62368, EN62368, EN60335, GB4943 standards.
Typical applications include industrial process control, LED street light control, electricity monitoring, security, telecommunications, smart home etc.
Universal 85 - 264VAC or 120 - 373VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range：-30°C to +70°C
Low standby power consumption, high efficiency
High I/O isolation test voltage up to 4000VAC
Low ripple & noise
Output short circuit, over-current, over-voltage protection
Safety according to IEC/EN62368/EN60335/GB4943 (CE/CCC pending)
Withstand 300VAC surge input for 5s
Over-voltage class Ⅲ (designed to meet EN61558)
Operating altitude up to 5000m
|MODEL NUMBER||INPUT RANGE||OUTPUT||POWER|
