Outputs: 3V3 to 24Vdc
Power: 15 Watt
Tamb: -40 to 70°C
Dims: 62 x 45 x 22.5mm
UL / CE EN60950 Approved
LH15-10BXX are high efficiency 15W power modules from Mornsun. They are widely used in industrial, office and civil equipment. EMC and safety standards meet international standards UL60950 and IEC/EN60950 with options available for EN60601 2 XMOPP versions
Universal mains input: 85 to 264Vac, 50/60Hz
DC input: 100 to 370Vdc
EN60601 2XMOPP versions
Low ripple and noise
Output over voltage, short circuit and over currentprotection
High efficiency, high power density
Isolation voltage: 3kVac
Operating temperature: -40 to +70°C
3 years warranty

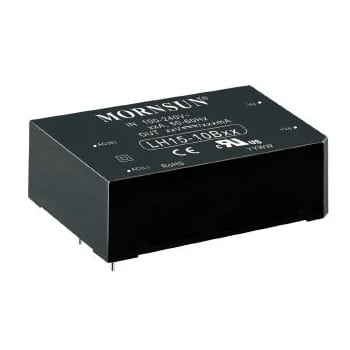

*Standard package mounting is PCB

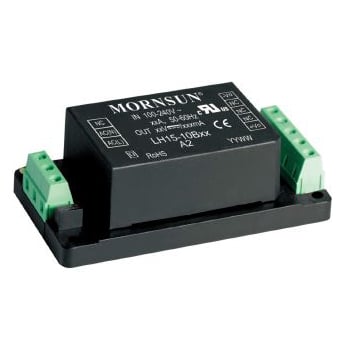

A2 option is chassis mount with screw terminals

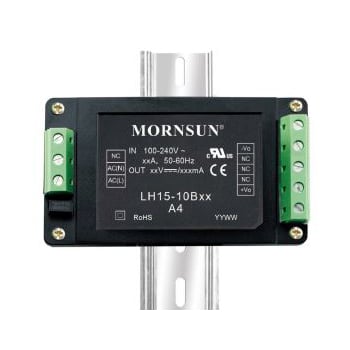

A4 option is DIN rail mount with screw terminals
|MODEL NUMBER||INPUT RANGE||OUTPUT||POWER|
