LD05 R2-M Series

Input: 85 - 305V ac / 100 - 430V dc
Outputs: 3.3 - 24V dc
Power: 4.95 - 5.52 Watt
Tamb: -40 to +85°C
Dims: 45.70 x 25.40 x 21.50 mm
EN62368 Approved

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

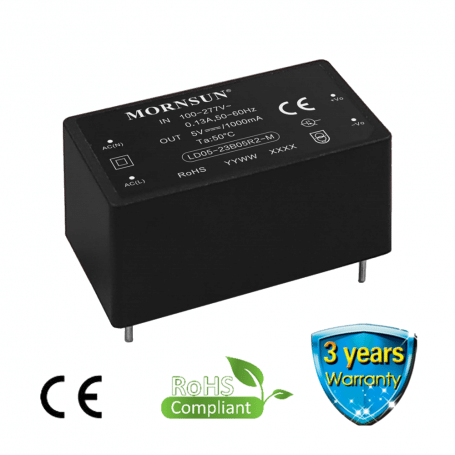

LD05 R2-M series AC-DC Converters is one of Mornsun’s compact size power converters. They feature an ultra-wide AC input and accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/EN61558 standards. The converters are widely used in industrial, power, home appliances, instrumentation, communication and civil applications.

30W of Cost-Effective & Ultra-Compact AC-DC Power

feature list

Ultra-wide 85 - 305VAC & 100 - 430VDC input voltage range
Operating ambient temperature range: -40℃ to +85℃
Up to 81.5% efficiency
No-load power consumption 0.1W
5000m altitude application
Plastic case meets UL94V-0 flammability
EMI performance meets CISPR32/EN55032 CLASS B, EN55014
Designed to meet IEC/UL62368/EN60335/EN61558 standards
EN62368 safety approval
Pin compatible with IRM-05-xx series

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
LD05-23B03R2-M	85 - 305V ac 100 - 430V dc	3.3V dc	4.95W
LD05-23B05R2-M	85 - 305V ac 100 - 430V dc	5V dc	5W
LD05-23B09R2-M	85 - 305V ac 100 - 430V dc	9V dc	5.04W
LD05-23B12R2-M	85 - 305V ac 100 - 430V dc	12V dc	5.04W
LD05-23B15R2-M	85 - 305V ac 100 - 430V dc	15V dc	4.95W
LD05-23B24R2-M	85 - 305V ac 100 - 430V dc	24V dc	5.52W

Downloads

Click on the link below for an instant download.

LD05-23BxxR2-M Series Datasheet
