LDE03 O Series

Input: 85-264Vac
Outputs: 3V3 to 24Vdc
Power: 3 Watt (12W for 10 Secs)
Tamb: -40 to +70°C
Dims: 37 x 24.5 x 18mm
Meets EN62368 Approved

Make an enquiry

Request a sample

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Email
This field is for validation purposes and should be left unchanged.

Request a Sample

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

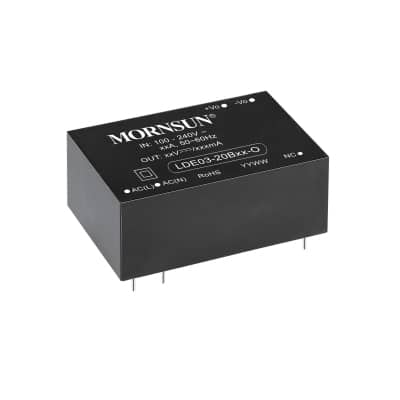

LDE03 O Series is a compact AC-DC Power Converter. It features universal AC input, and at the same time accepts DC input voltages from 100 to 370V dc.

The LDE03 O family has the unique ability to provide transient power of up to 12 Watts for 10 seconds, on a 10% duty cycle.

LDE03 O Series also features low power consumption, high efficiency, high reliability, and reinforced isolation. It offers excellent EMC performance and meets CISPR32/EN55032, IEC/EN/UL62368 standards. They are widely used in industrial, power, instrumentation, communication, and civil applications.

feature list

Wide Universal mains input: 85 ~ 264VAC,50/60Hz
Continuous steady output power 3W
Transient output power 12W for up to 10S
DC input - 100 -370V DC
Meets CISPR32 / EN55032 CLASS B
Low Ripple and Noise
Over output voltage, short circuit and over temperature protection
High efficiency, High power density
Low loss, green power
Multiple models available
Industrial, medical level specifications
3 years warranty

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
LDE03-20B03-O	85-264VAC 100-370VDC	3V	2.3W / 12W Transient
LDE03-20B05-O	85-264VAC 100-370VDC	5V	3W / 12W Transient
LDE03-20B09-O	85-264VAC 100-370VDC	9V	3W / 12W Transient
LDE03-20B12-O	85-264VAC 100-370VDC	12V	3W / 12W Transient
LDE03-20B15-O	85-264VAC 100-370VDC	15V	3W / 12W Transient
LDE03-20B24-O	85-264VAC 100-370VDC	24V	3W / 12W Transient

Downloads

Click on the link below for an instant download.

LDE03-20Bxx-O datasheet
