APPLICATION
The KUB4836EB Series is a Non-isolated, Buck-Boost, DC-DC converter with an ultra-wide input range (0 – 60V dc), regulated single adjustable output voltage of 0-60V, & an adjustable output current range of 0-10A.
The KUB4836EB Series has an efficiency up to 95% & operating ambient temperature range of -40°C to +105°C. Modules feature input under-voltage, output short circuit, over-temperature protection, remote On/Off , output voltage adjustment, output current adjustment & output current monitoring (Imon).

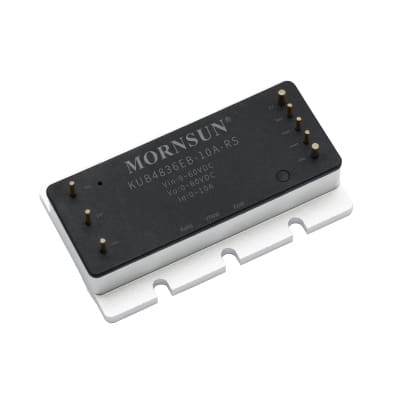

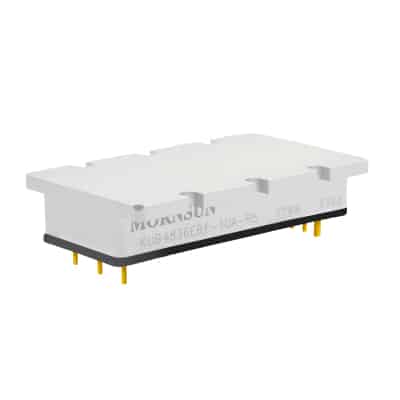

Modules can be supplied in traditional eighth brick format or with an additional cold wall flange plate.
The KUB4836EB Series are widely used in applications such as intelligent robotics, communications, battery powered systems and DC-DC distributed power supplies.
feature list
Input voltage range: 9 to 60V dc
Output voltage range: 0 to 60V dc
Output current range: 0 - 10A
Both output voltage and current are adjustable (0 - 100%)
Option for voltage or resistance (-RS) programming
Output current monitoring (Imon)
High efficiency up to 95%
Input under-voltage protection, output short-circuit protection, over-temperature protection
Operating ambient temperature range: -40°C to +105°C

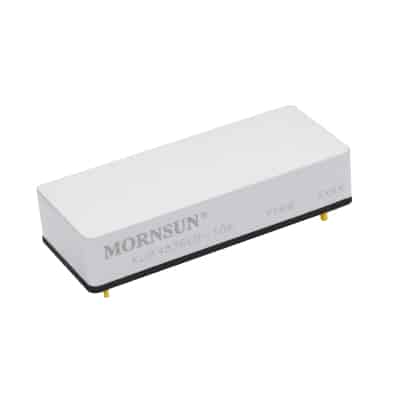

Industry standard 1/8-Brick package and pin-out (60.8 x 25.0 x 12.7mm)
| MODEL NUMBER | INPUT RANGE | OUTPUT | CURRENT |
|---|---|---|---|
| KUB4836EB- 10A | 9 - 60V dc | 0 - 60V (36V dc nom) | 0 - 10A |
| KUB4836EBF- 10A | 9 - 60V dc | 0 - 60V (36V dc nom) | 0 - 10A |
| KUB4836EB- 10A-RS | 9 - 60V dc | 0 - 60V (36V dc nom) | 0 - 10A |
| KUB4836EBF- 10A-RS | 9 - 60V dc | 0 - 60V (36V dc nom) | 0 - 10A |
| -F = Flange plate -RS = Resistor programming Default = Voltage programming |
|||
