Input: 8.3 - 14Vdc
Outputs: 0.75 to 5V dc
Power: 0-90 Watt
Tamb: -40°C to +85°C
Dims: 33.0 x 13.50 x 8.30mm (SMD)
Non isolated - Industry standard footprint
Make an Enquiry
Request a Sample

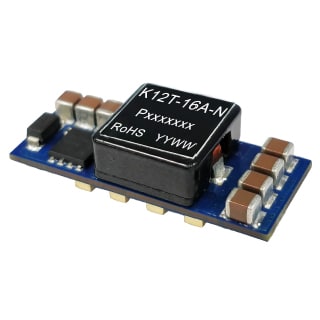

K12T-10A and KT12T-16A series are 10A & 16A non-isolated switching regulators in an industry standard footprint. The output voltage is accurately adjustable from 0.75V to 5.0V, and the product is featured with high efficiency, fast transient response, input under-voltage, output short circuit, over-current protection. They meet CLASS B of CISP R32/EN55032 EMI standards by adding the recommended external components. They are widely used in applications such as communications, computer network industry, power distributed architecture, workstations, servers, LANs/WANs and provide high current with fast transient response for high-speed chips such as FPGA, DSP, and ASIC
High efficiency up to 96%
Operating ambient temperature range -40°C to +85°C
Input under-voltage protection, output short-circuit, over-current protection
High-speed transient response
Compact SMD package
Industry standard pinout
|MODEL NUMBER||INPUT RANGE||OUTPUT||Current||Control Logic|
|K12T-10A-P||8.3 - 14Vdc||0.75 - 5.0Vdc||10A||Positive|
|K12T-10A-N||8.3 - 14Vdc||0.75 - 5.0Vdc||10A||Negative|
|K12T-16A-P||8.3 - 14Vdcc||0.75 - 5.0Vdc||16A||Positive|
|K12T-16A-N||8.3 - 14Vdcc||0.75 - 5.0Vdc||16A||Negative|
