Input: 12Vdc and 15Vdc
Outputs: 0 to 1500V & -1500Vdc
Power: 0.75 Watt
Tamb: -25°C to +71°C
Dims: 45.5 x 23 x 12.50mm
Make an Enquiry
Request a Sample

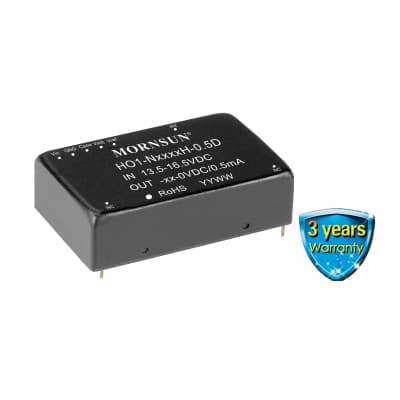

HO1-P(N) series are DC-DC Converters with high DC output voltages. The HO1-P(N) series offer 0.75W of output power, with an operating ambient temperature range of -25℃ to +71℃.
All units have input reverse polarity protection, control voltage over-voltage protection, output short circuit protection, over-current protection as standard.
Construction is a six-sided metal shielding package, with low ripple, low start-up, and temperature coefficients, and are specifically designed for applications in power systems where high dc voltages are required with low output ripple requirements and output voltage stability is critical.
The HO1-P(N) Series units are widely used in fields such as photomultiplier tubes, mass spectrometers, light spectrum analyzers, electron beam, ion beam, and avalanche diodes.
No-load input current as low as 8mA
Continuous output voltage with linear adjustable function
Six-sided metal shielding package, output ripple as low as 10mV
Output voltage with high stability, low time coefficient and temperature coefficient
Operating ambient temperature range: -25°C to +71°C
Input reverse polarity protection, control voltage over-voltage protection
Output short-circuit protection, over-current protection
EMI meets CISPR32/EN55032 CLASS B
Meets EN62368 safety standards
|MODEL NUMBER||INPUT RANGE||OUTPUT||POWER|
|HO1-P1251H-0.5C||10.8-13.2 Vdc||0 to +1250Vdc||0.75W|
|HO1-N1251H-0.5C||10.8-13.2 Vdc||0 to -1250Vdc||0.75W|
|HO1-P1501H-0.5C||10.8-13.2 Vdc||0 to -1500Vdc||0.75W|
|HO1-N1501H-0.5C||10.8-13.2 Vdc||0 to -1500Vdc||0.75W|
|HO1-P1251H-0.5D||13.5-16.5 Vdc||0 to +1250Vdc||0.75W|
|HO1-N1251H-0.5D||13.5-16.5 Vdc||0 to -1250Vdc||0.75W|
|HO1-P1501H-0.5D||13.5-16.5 Vdc||0 to -1500Vdc||0.75W|
|HO1-N1501H-0.5D||13.5-16.5 Vdc||0 to -1500Vdc||0.75W|
