APPLICATION

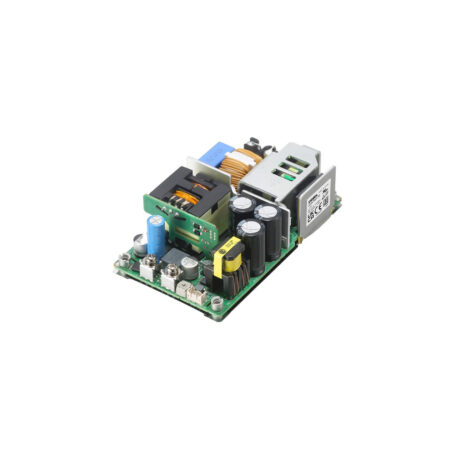

The GHA700F series AC-DC power supplies are designed for medical applications, offering high efficiency, robust safety features, and flexible cooling methods. With an output power range of up to 700W, the GHA700F is available in several voltage configurations, including 12V, 24V, 30V, 48V, and 56V.
Engineered using advanced SMD technology, this series provides consistent and reliable performance, even in demanding environments. Offering cooling options like forced air, convection, and conduction, the GHA700F series is well-suited for a variety of applications requiring versatile power solutions.
Featuring high efficiency, with up to 96% at AC230V input, the GHA700F meets rigorous global safety standards, including UL62368-1, EN60601-1, and IEC60601-1-2. With built-in overcurrent and overvoltage protection, and optional features like remote ON/OFF and PowerGood signalling, the GHA700F ensures reliable and safe operation.
Compactly built with a case size of 76.2mm x 38.1mm x 127mm and weighing 570g, it is an ideal choice for medical devices requiring power in space-constrained environments. If your equipment demands reliable, efficient, and safety-compliant power solutions, the GHA700F series delivers with precision and adaptability.
feature list
Wattage 700W max
High Power density: 31.1W/inch3
High efficiency 96％ typ (Input Voltage 230V, Output Voltage 24V)
Conduction cooling
3" x 5" standard footprint
Fits 1U applications
Industrial and Medical safety approvals (Suitable for BF application)
Low leakage current
With Remote On/Off (Optional)
Complies with EN61558-2-16 (OVC III)
Isolated dual AUX (AUX1 12V 1A, AUX2 5V 1A) (Optional)
Conformal coating (Optional)
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| GHA700F-12-J1 | 85 - 264Vac | 12V 54.2A Forced Air Cooling +50°C 12V 33.4A Convection Cooling +30°C 12V 22.2A Convection Cooling +50°C 12V 33.4A conduction cooling +50°C | 650.4W |
| GHA700F-24-J1 | 85 - 264Vac | 24V 29.2A Forced Air Cooling +50°C 24V 16.7A Convection Cooling +30°C 24V 11.1A Convection Cooling +50°C 24V 16.7A conduction cooling +50°C | 700.8W |
| GHA700F-30-J1 | 85 - 264Vac | 30V 23.3A Forced Air Cooling +50°C 30V 13.4A Convection Cooling +30°C 30V 8.9A Convection Cooling +50°C 30V 13.4A conduction cooling +50°C | 699W |
| GHA700F-48-J1 | 85 - 264Vac | 48V 14.6A Forced Air Cooling +50°C 48V 8.4A Convection Cooling +30°C 48V 5.6A Convection Cooling +50° 48V 8.4A conduction cooling +50°C | 700.8W |
| GHA700F-56-J1 | 85 - 264Vac | 56V 12.5A Forced Air Cooling +50°C 56V 7.2A Convection Cooling +30°C 56V 4.8A Convection Cooling +50°C 56V 7.2A conduction cooling +50°C | 700W |
