Inputs: 5Vdc to 24Vdc
Outputs: 3V3dc to 24Vdc
Power: 1 Watt
Tamb: -40°C to +105°C
Dims: 19.65 x 6.00 x 10.16mm
Make an Enquiry
Request a Sample

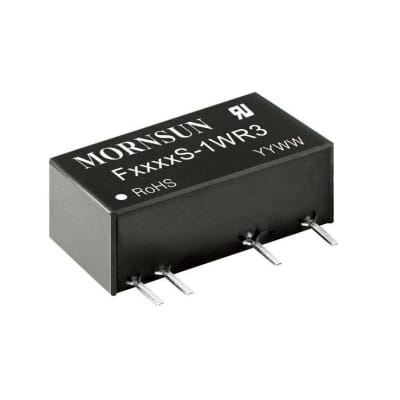

The F_S-1WR3 Series are specially designed for applications where a low power supply voltage has to be derived from a fixed bus voltage.
The F_S-1WR3 Series are suitable for use where.
a) Where the voltage of the input power supply is fixed (voltage variation < ±10%);
b) Where isolation is required between input and output (isolation voltage <3000VDC);
c) Where the regulation of the output voltage is not critical.
Typical applications include digital circuits, low-frequency analog circuits, and IGBT drive circuits.
High efficiency up to 85%
Continuous short circuit protection
No-load input current as low as 5mA
7 pin SIP through hole package
Internal SMD construction
Temperature range: -40°C to +105°C
No heat sink required
No external components required
Industry standard pinout
UL62368, EN62368 approval
|MODEL NUMBER||INPUT RANGE||OUTPUT||POWER|
|F0503S-1WR3||4.5V - 5.5Vdc||3V3dc||1W|
|F0505S-1WR3||4.5V - 5.5Vdc||5Vdc||1W|
|F0509S-1WR3||4.5V - 5.5Vdc||9Vdc||1W|
|F0512S-1WR3||4.5V - 5.5Vdc||12Vdc||1W|
|F0515S-1WR3||4.5V - 5.5Vdc||15Vdc||1W|
|F0524S-1WR3||4.5V - 5.5Vdc||24Vdc||1W|
|F1203S-1WR3||10.8V - 13.2Vdc||3V3dc||1W|
|F1205S-1WR3||10.8V - 13.2Vdc||5Vdc||1W|
|F1209S-1WR3||10.8V - 13.2Vdc||9Vdc||1W|
|F1212S-1WR3||10.8V - 13.2Vdc||12Vdc||1W|
|F1215S-1WR3||10.8V - 13.2Vdc||15Vdc||1W|
|F1224S-1WR3||10.8V - 13.2Vdc||24Vdc||1W|
|F1505S-1WR3||13.5V - 16.5Vdc||5Vdc||1W|
|F1509S-1WR3||13.5V - 16.5Vdc||9Vdc||1W|
|F1512S-1WR3||13.5V - 16.5Vdc||12Vdc||1W|
|F1515S-1WR3||13.5V - 16.5Vdc||15Vdc||1W|
|F2403S-1WR3||21.6V - 26.4Vdc||3V3dc||1W|
|F2405S-1WR3||21.6V - 26.4Vdc||5Vdc||1W|
|F2409S-1WR3||21.6V - 26.4Vdc||9Vdc||1W|
|F2412S-1WR3||21.6V - 26.4Vdc||12Vdc||1W|
|F2415S-1WR3||21.6V - 26.4Vdc||15Vdc||1W|
|F2424S-1WR3||21.6V - 26.4Vdc||24Vdc||1W|
