Power > ECLB-75W Series

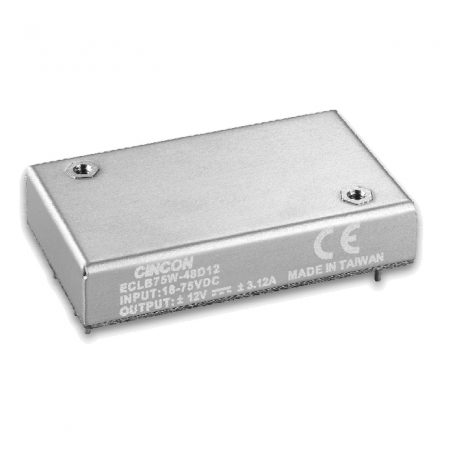

ECLB-75W Series

Input: 9-36V or 18-75V dc
Outputs: 3V to +/-15V dc
Power: 75 Watt
Tamb: -40°C to +105°C
Dims: 2.05" x 1.2" x 0.4"
1500V dc Isolation

Make an enquiry
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? call us now

APPLICATION

The ECLB75W series offer 75 watts of output power in a 2.05 x 1.20 x 0.4 inches copper packages. The ECLB75W series has a 4:1 wide input voltage range of 9-36 and 18-75VDC, and provides a precisely regulated output. This series has features such as high efficiency, 1500VDC of isolation and allows an ambient operating case temperature range of –40°C to 105°C . The modules are fully protected against input UVLO (under voltage lock out), output over-current, over-voltage and over-temperature and short circuit conditions. Furthermore, the standard control functions include remote on/off and adjustable output voltage. All models are very suitable for distributed power architectures, telecommunications, battery operated equipment and industrial applications

MODEL NUMBERINPUT RANGEOUTPUTPOWER
ECLB75W-24S3V39V-36V3V375W
ECLB75W-24S059V-36V5V75W
ECLB75W-24S129V-36V12V75W
ECLB75W-24S159V-36V15V75W
ECLB75W-24D129V-36V±12V75W
ECLB75W-24D159V-36V±15V75W
ECLB75W-24D249V-36V±24V75W
ECLB75W-48S0318V-75V3V375W
ECLB75W-48S0518V-75V5V75W
ECLB75W-48S1218V-75V12V75W
ECLB75W-48S1518V-75V15V75W
ECLB75W-48D1218V-75V±12V75W
ECLB75W-48D1518V-75V±15V75W
ECLB75W-48D2418V-75V±24V75W

Downloads

Click on the link below for an instant download.

  • ECLB75W series datasheet
  • ECLB75W series application note
