APPLICATION

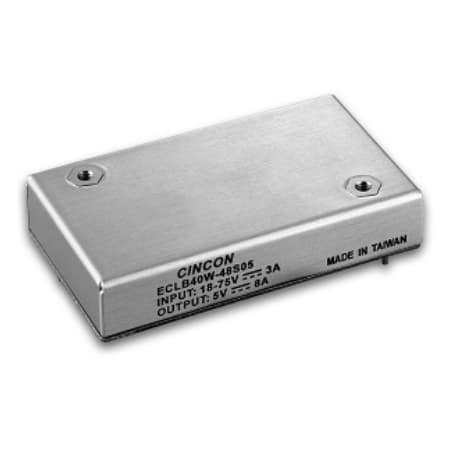

The ECLB40W series offer 40 watts of output power in a 2.05 x 1.20 x 0.4 inches copper packages. The ECLB40W series has a 4:1 wide input voltage range of 9-36 and 18-75VDC, and provides a precisely regulated output. This series has features such as high efficiency, 1500VDC of isolation and allows an ambient operating temperature range of –40°C to 85°C (de-rating above 45 °C). The modules are fully protected against input UVLO (under voltage lock out), output over-current, over-voltage and over-temperature and short circuit conditions. Furthermore, the standard control functions include remote on/off and adjustable output voltage. All models are very suitable for distributed power architectures, telecommunications, battery operated equipment and industrial applications
feature list
60W Isolated Output
Efficiency to 92%
2.05’’ X1.2” X0.4” Six-Sided Shield Metal Case
4:1 Input Range
Regulated Outputs
Fixed Switching Frequency
Input Under Voltage Protection
Over Current Protection
Remote On/Off
Continuous Short Circuit Protection
No Tantalum Capacitor Inside
CE Mark Meets 2004/108/EC
Safety Meets UL60950-1, EN60950-1, and IEC60950-1
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| ECLB40W-24S3V3 | 9V-36V | 3V3 | 40W |
| ECLB40W-24S05 | 9V-36V | 5V | 40W |
| ECLB40W-24S12 | 9V-36V | 12V | 40W |
| ECLB40W-24S15 | 9V-36V | 15V | 40W |
| ECLB40W-24D12 | 9V-36V | ±12V | 40W |
| ECLB40W-24D15 | 9V-36V | ±15V | 40W |
| ECLB40W-48S03 | 18V-75V | 3V3 | 40W |
| ECLB40W-48S05 | 18V-75V | 5V | 40W |
| ECLB40W-48S12 | 18V-75V | 12V | 40W |
| ECLB40W-48S15 | 18V-75V | 15V | 40W |
| ECLB40W-48D12 | 18V-75V | ±12V | 40W |
| ECLB40W-48D15 | 18V-75V | ±15V | 40W |
