APPLICATION

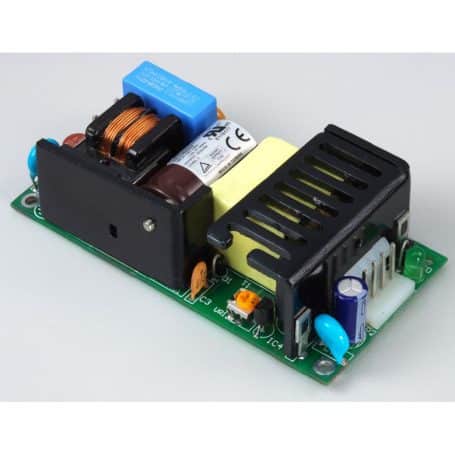

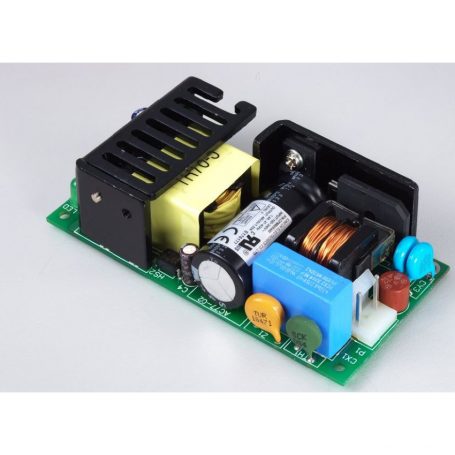

The CFM40 & CFM60 series is a compact and efficient series of ac dc power supply suited for telecom datacom and many other applications. The CFM40 & CFM60 family meets the international information technology safety standards with the CE-Mark for the European Low Voltage Directive (LVD)
Their high efficiency allows a very minimal power loss in end equipment, resulting in higher reliability, ease of thermal management and regulatory approvals for an environmentally friendly end product.
feature list
Universal Input Range 90~264VAC
2"x 4" Size
Industry Standard Pin Out
Efficiency to 87%
Meets EN55022 Class B and
CISPR/FCC Class B,
Continuous Short Circuit Protection
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| CFM40S033 | 90-264AC | 3V3 | 20W |
| CFM40S050 | 90-264AC | 5V | 30W |
| CFM40S090 | 90-264AC | 9V | 40W |
| CFM40S120 | 90-264AC | 12V | 40W |
| CFM40S150 | 90-264AC | 15V | 40W |
| CFM40S240 | 90-264AC | 24V | 40W |
| CFM40S360 | 90-264AC | 24V | 40W |
| CFM40S480 | 90-264AC | 48V | 40W |
| CFM60S033 | 90-264AC | 3V3 | 26W |
| CFM60S050 | 90-264AC | 5V | 40W |
| CFM60S090 | 90-264AC | 9V | 60W |
| CFM60S120 | 90-264AC | 12V | 60W |
| CFM60S150 | 90-264AC | 15V | 60W |
| CFM60S240 | 90-264AC | 24V | 60W |
| CFM60S360 | 90-264AC | 24V | 60W |
| CFM60S480 | 90-264AC | 48V | 60W |
