Outputs: 12V to 48V
Power: 130 Watt
Tamb: 0°C to +70°C
Dims: 2" x 3" x 1.2"
UL / CE EN60335-1 Approved

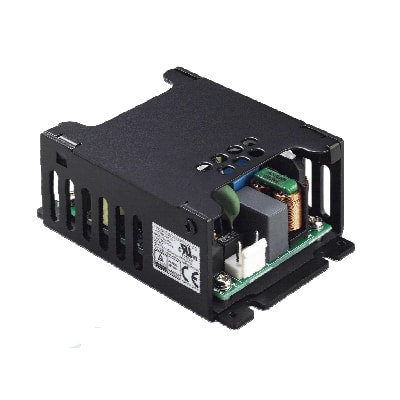

The CFM130 series is a compact and efficient series of ac dc power supply suited for medical and many other applications. The CFM130M family meets the international information technology safety standards with the CE-Mark for the European Low Voltage Directive (LVD)
Their high efficiency allows a very minimal power loss in end equipment, resulting in higher reliability, ease of thermal management and regulatory approvals for an environmentally friendly end product.
Universal Input 80~264Vac
2”x 3” Open Frame Compact Size
100W with Natural Convection
130W with Fan-Cooled
No Load Input Power Consumption<150mW
Active PFC Function
High Efficiency up to 94%
Continuous Short Circuit Protection
Meets 2 MOPP IEC/EN60335-1
EMI Safety Meets ClassⅠ & Class Ⅱ
Operating Altitude 5000m
|MODEL NUMBER||INPUT RANGE||OUTPUT||POWER|
