PCB MOUNT Power Supplies
PDA30F
Input: 85- 264Vac
Outputs: 5 – 24Vdc
Power: 30 Watt
Tamb: -20 to 70°C
Dims: 31 x 78 x 103mm
UL62368-1 & EN62368-1 Approved
Made in Japan
Outputs: 5 – 24Vdc
Power: 30 Watt
Tamb: -20 to 70°C
Dims: 31 x 78 x 103mm
UL62368-1 & EN62368-1 Approved
Made in Japan
CBM150S Series
Input: 90-264Vac
Outputs: 12 to 54V
Power: 150 Watt
Tamb: -40°C to +90°C
Dims: Full Brick
EN55032, IEC/EN/UL 62368-1 Approved
Outputs: 12 to 54V
Power: 150 Watt
Tamb: -40°C to +90°C
Dims: Full Brick
EN55032, IEC/EN/UL 62368-1 Approved
FA10-220SXXG2N4 Series
Input: 85-305Vac
Outputs: 3.3V to 24V
Power: 10 Watts
Tamb: -40 to +105°C
Dims: 40 x 25.4 x 21mm
Meets IEC62368/IEC61558-2-16/IEC61558-1/ UL62368/EN62368
Outputs: 3.3V to 24V
Power: 10 Watts
Tamb: -40 to +105°C
Dims: 40 x 25.4 x 21mm
Meets IEC62368/IEC61558-2-16/IEC61558-1/ UL62368/EN62368
CFM41S Series
Input: 90-264Vac
Outputs: 5V to 48V
Power: 40 / 80 Watt (< 10 Secs)
Tamb: -30°C to +80°C
Dims: 2″ x 2″ x 1.0″
UL / CE EN62368 Approved
Outputs: 5V to 48V
Power: 40 / 80 Watt (< 10 Secs)
Tamb: -30°C to +80°C
Dims: 2″ x 2″ x 1.0″
UL / CE EN62368 Approved

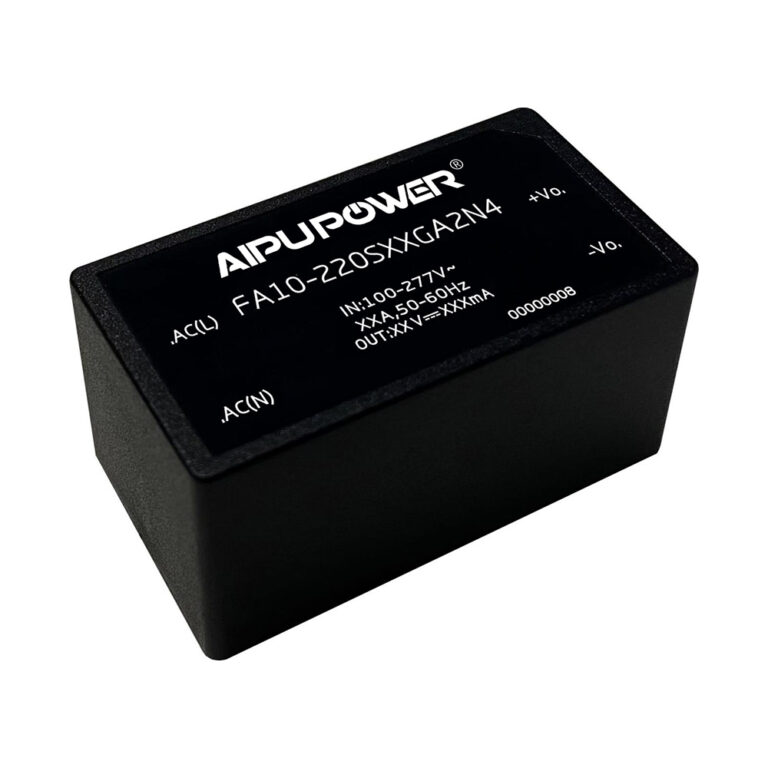

FA10-220SXXGA2N4 Series
Input: 85-305Vac
Outputs: 3.3V to 24V
Power: 10 Watts
Tamb: -40 to +85°C
Dims: 47.60 x 26.8 x 23.50mm
Meets IEC62368/UL62368/EN62368
Outputs: 3.3V to 24V
Power: 10 Watts
Tamb: -40 to +85°C
Dims: 47.60 x 26.8 x 23.50mm
Meets IEC62368/UL62368/EN62368
AEA600F
Input: 85- 264Vac
Outputs: 24 – 48Vdc
Power: 600 Watt
Tamb: -20 to 70°C
Dims: 41 x 127 x 186mm
UL62368-1, EN60601-1, & EN62368-1 Approved
Made in Japan
Outputs: 24 – 48Vdc
Power: 600 Watt
Tamb: -20 to 70°C
Dims: 41 x 127 x 186mm
UL62368-1, EN60601-1, & EN62368-1 Approved
Made in Japan

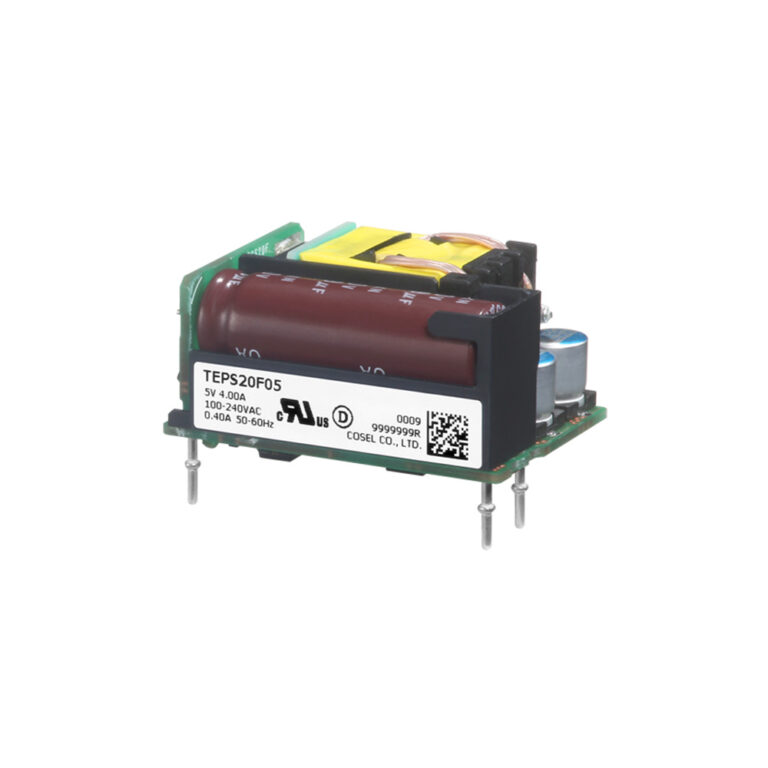

TEPS20F
Input: 85 – 264Vac
Outputs: 5 – 24Vdc
Power: 20 Watt
Tamb: -10 to 85°C
Dims: 25.4 x 21.6 x 38.1mm
UL62368-1 & EN62368-1 Approved
Made in Japan
Outputs: 5 – 24Vdc
Power: 20 Watt
Tamb: -10 to 85°C
Dims: 25.4 x 21.6 x 38.1mm
UL62368-1 & EN62368-1 Approved
Made in Japan

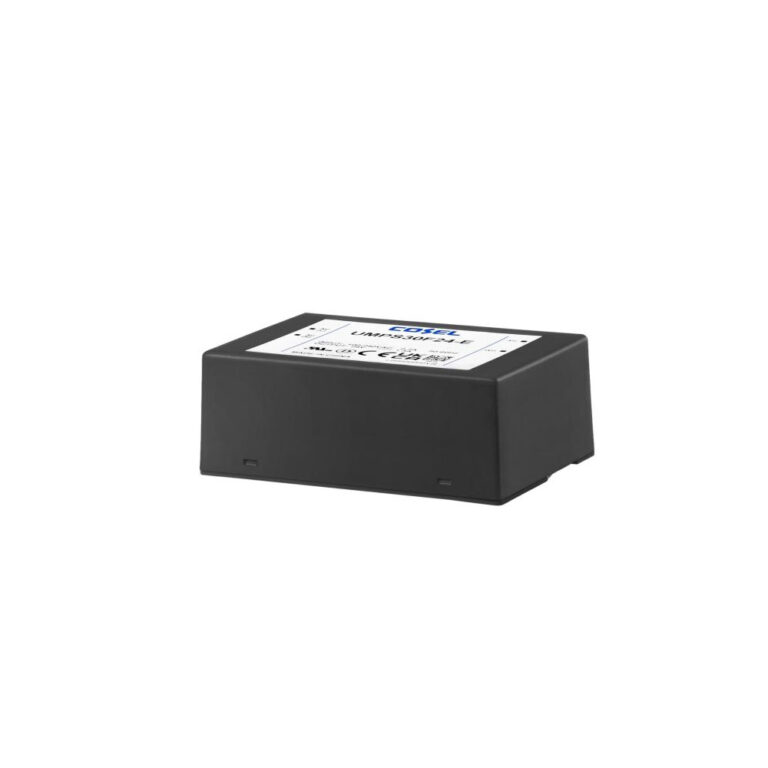

UMPS30F
Input: 85 – 264Vac
Outputs: 5 – 48Vdc
Power: 30 Watt
Tamb: -20 to 70°C
Dims: 55.9 x 30.5 x 81.3mm
UL62368-1, EN60601-1 & EN62368-1 Approved
Made in Japan
Outputs: 5 – 48Vdc
Power: 30 Watt
Tamb: -20 to 70°C
Dims: 55.9 x 30.5 x 81.3mm
UL62368-1, EN60601-1 & EN62368-1 Approved
Made in Japan

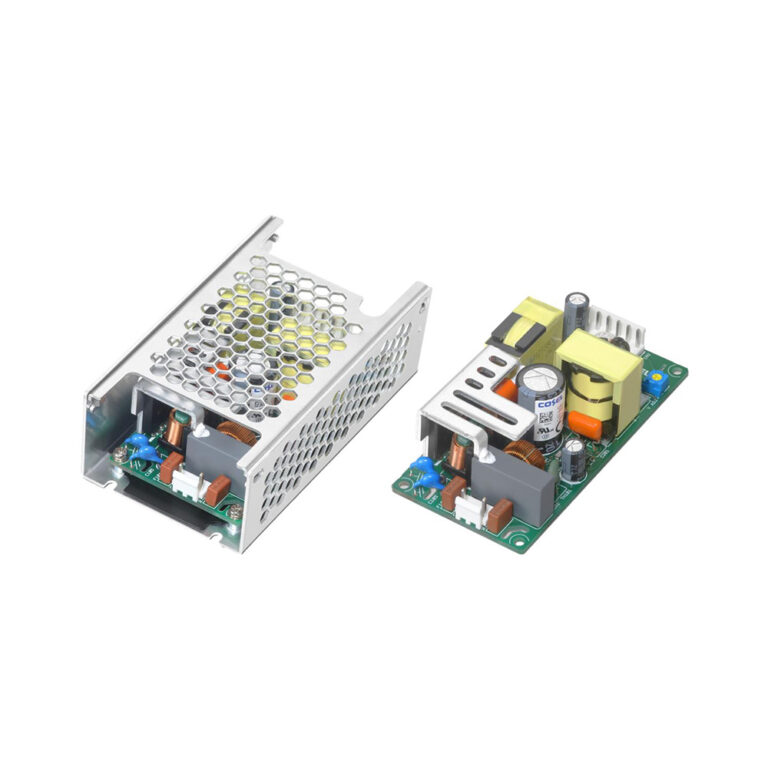

UMA120F
Input: 85- 264Vac
Outputs: 12 – 48Vdc
Power: 120 Watt
Tamb: -20 to 70°C
Dims: 50.8 x 29 x 101.6mm
UL62368-1, EN60601-1, & EN62368-1 Approved
Made in Japan
Outputs: 12 – 48Vdc
Power: 120 Watt
Tamb: -20 to 70°C
Dims: 50.8 x 29 x 101.6mm
UL62368-1, EN60601-1, & EN62368-1 Approved
Made in Japan
UMA30F
Input: 85- 264Vac
Outputs: 5 – 48Vdc
Power: 30 Watt
Tamb: -20 to 70°C
Dims: 50.8 x 21.7 x 76.2mm
UL62368-1, EN60601-1, & EN62368-1 Approved
Made in Japan
Outputs: 5 – 48Vdc
Power: 30 Watt
Tamb: -20 to 70°C
Dims: 50.8 x 21.7 x 76.2mm
UL62368-1, EN60601-1, & EN62368-1 Approved
Made in Japan

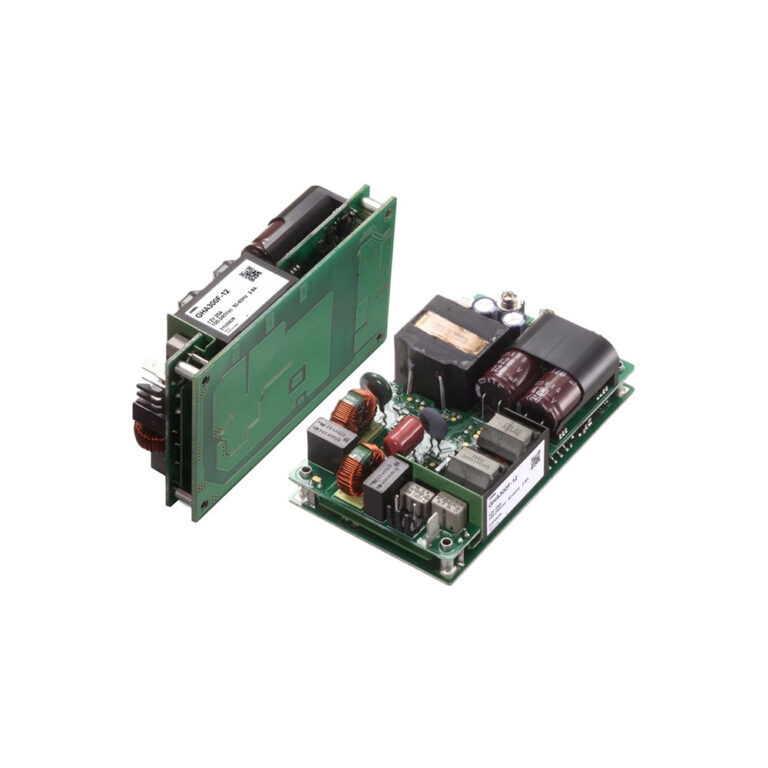

GHA300F
Input: 90 – 264Vac
Outputs: 12 – 48Vdc
Power: 300 Watt
Tamb: -20 to 70°C
Dims: 76.2 x 35 x 127mm
EN60601-1 & EN62368-1 Approved
Made in Japan
Outputs: 12 – 48Vdc
Power: 300 Watt
Tamb: -20 to 70°C
Dims: 76.2 x 35 x 127mm
EN60601-1 & EN62368-1 Approved
Made in Japan

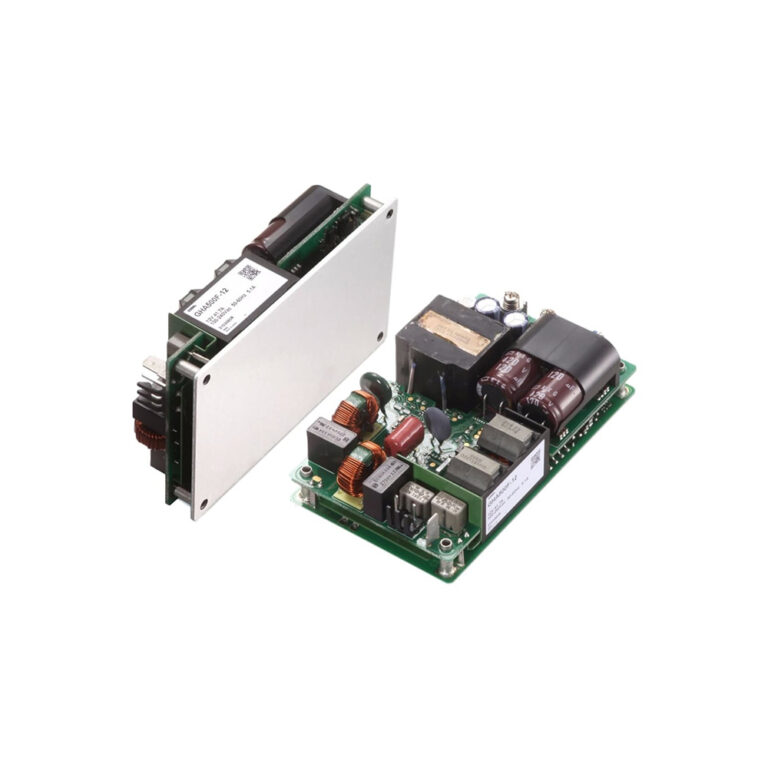

GHA500F
Input: 90 – 264Vac
Outputs: 12 – 56Vdc
Power: 500 Watt
Tamb: -20 to 80°C
Dims: 76.2 x 35 x 127mm
EN60601-1 & EN62368-1 Approved
Made in Japan
Outputs: 12 – 56Vdc
Power: 500 Watt
Tamb: -20 to 80°C
Dims: 76.2 x 35 x 127mm
EN60601-1 & EN62368-1 Approved
Made in Japan
EBM Series
Input: 9 – 160VDC
Outputs: 5 – 24VDC
Power: 100-120 Watt
Tamb: -40°C to +85°C
Dims: 1/8th Brick
High Efficiency up to 92%
Made in USA
Outputs: 5 – 24VDC
Power: 100-120 Watt
Tamb: -40°C to +85°C
Dims: 1/8th Brick
High Efficiency up to 92%
Made in USA

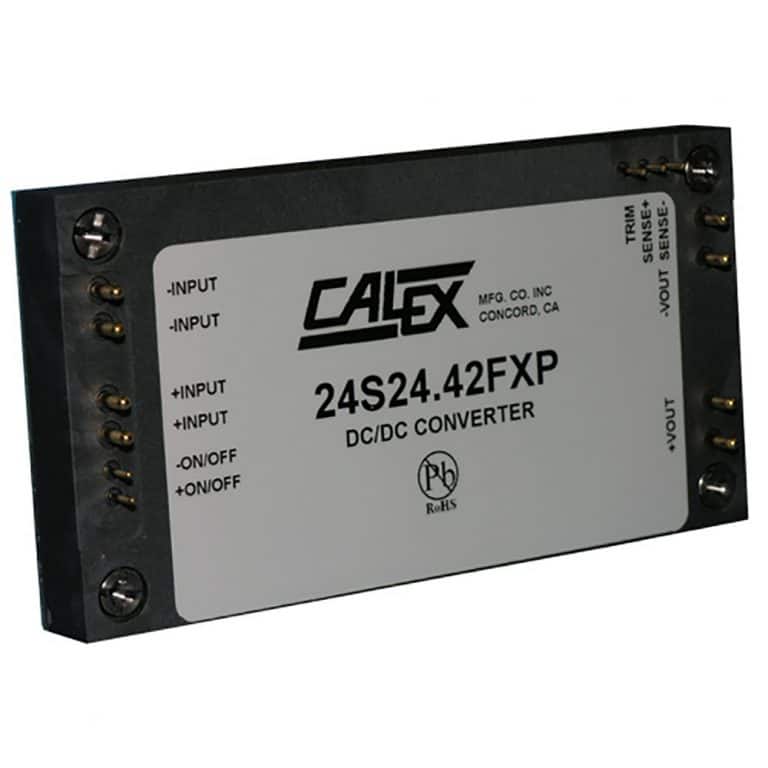

FXP Series
Input: 9-36V
Outputs: 12V to 53V dc
Power: 1000 Watt
Tamb: -40°C to +105°C
Dims: Full Brick
2250V dc Isolation
Parallel operation up to 2.8kW
Made in USA
Outputs: 12V to 53V dc
Power: 1000 Watt
Tamb: -40°C to +105°C
Dims: Full Brick
2250V dc Isolation
Parallel operation up to 2.8kW
Made in USA
CHB300-110S Series
Input: 43 to 160V dc
Outputs: 5V to 48V dc
Power: 300 Watt
Tamb: -40°C to +100°C
Dims: Half Brick
3000V dc isolation
Outputs: 5V to 48V dc
Power: 300 Watt
Tamb: -40°C to +100°C
Dims: Half Brick
3000V dc isolation
CHB100-110S Series
Input: 66 to 160V dc
Outputs: 5V to 48V dc
Power: 100 Watt
Tamb: -40°C to +100°C
Dims: Half Brick
3000Vrms isolation
UL / CE EN62368 Approved
Outputs: 5V to 48V dc
Power: 100 Watt
Tamb: -40°C to +100°C
Dims: Half Brick
3000Vrms isolation
UL / CE EN62368 Approved

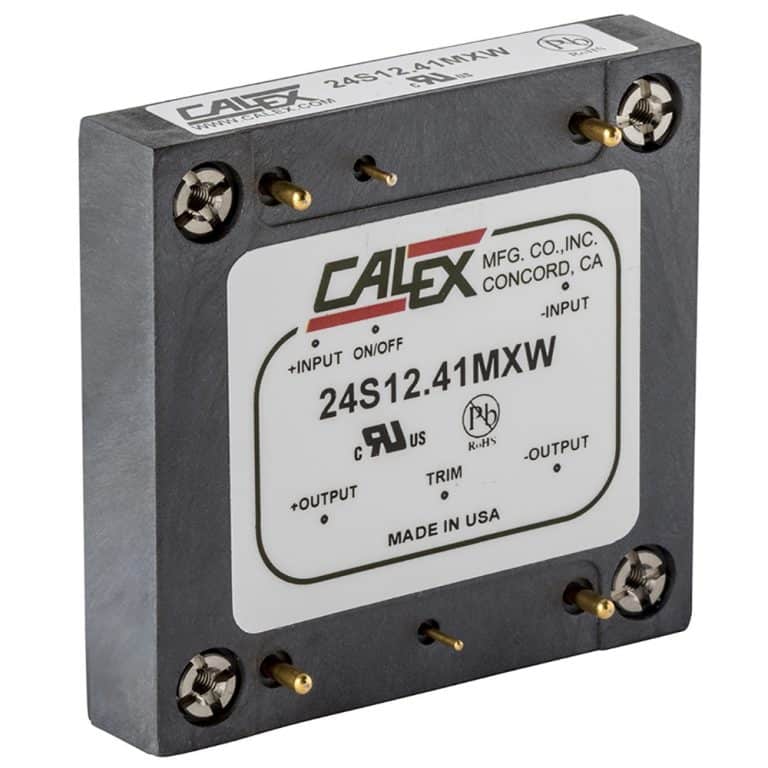

MXW Series
Input: 9-36V
Outputs: 12V to 28V dc
Power: 500 Watt
Tamb: -40°C to +105°C
Dims: Half Brick
2250V dc Isolation
Made in USA
Outputs: 12V to 28V dc
Power: 500 Watt
Tamb: -40°C to +105°C
Dims: Half Brick
2250V dc Isolation
Made in USA
CHB200W-110S Series
Input: 43 to 160V dc
Outputs: 5V to 48V dc
Power: 200 Watt
Tamb: -40°C to +100°C
Dims: Half Brick
3000V dc isolation
Outputs: 5V to 48V dc
Power: 200 Watt
Tamb: -40°C to +100°C
Dims: Half Brick
3000V dc isolation

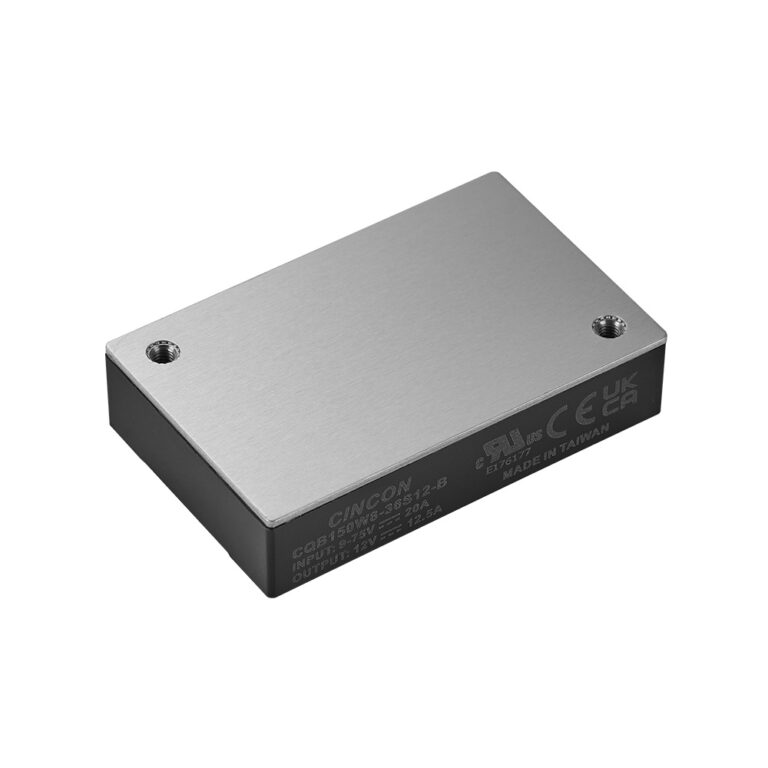

CQB150W8 Series
Input: 9-75Vdc
Outputs: 5V to 54 Vdc
Power: 150 Watt
Tamb: -40°C to +105°C
Dims: Quarter Brick
IEC/UL62368-1, EN55032/035/EN50155 Approved
Outputs: 5V to 54 Vdc
Power: 150 Watt
Tamb: -40°C to +105°C
Dims: Quarter Brick
IEC/UL62368-1, EN55032/035/EN50155 Approved

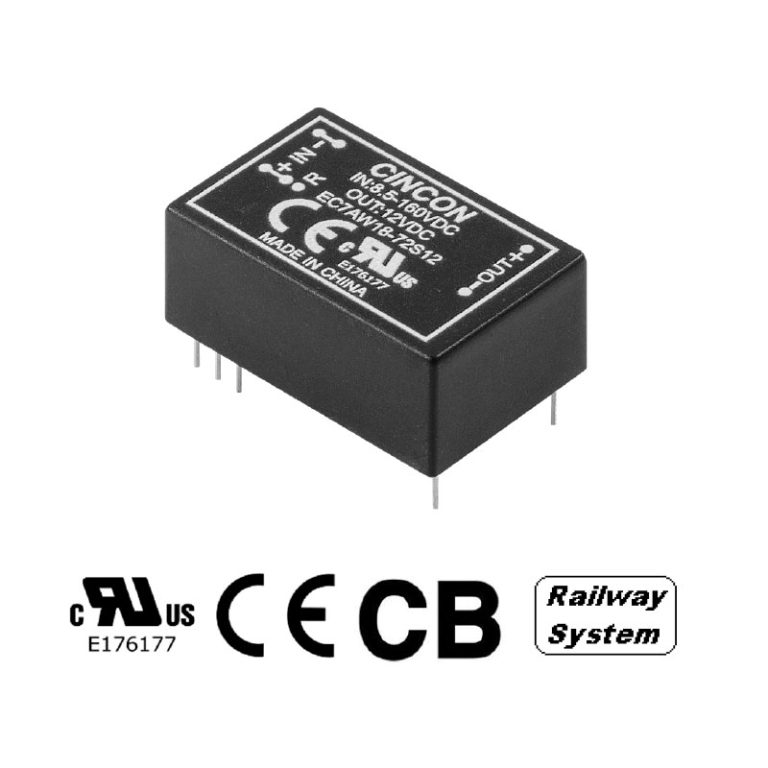

EC7AW18-72 Series
Input: 8.5-160V dc- Single range
Outputs: 5V to +/-15V dc
Power: 10 Watt
Tamb: -40°C to +100°C
Dims: 31.8 x 20.3 x 12.7mm (DIP24)
3000V ac Isolation
Outputs: 5V to +/-15V dc
Power: 10 Watt
Tamb: -40°C to +100°C
Dims: 31.8 x 20.3 x 12.7mm (DIP24)
3000V ac Isolation
MUW1R5
Input: 4.5 – 76Vdc
Outputs: 3.3 – 76V
Power: 1.5 Watt
Tamb: -40 to 100°C
Dims: 21.4 x 8.5 x 13.4mm
UL62368-1, EN62368-1 Approved
Made in Japan
Outputs: 3.3 – 76V
Power: 1.5 Watt
Tamb: -40 to 100°C
Dims: 21.4 x 8.5 x 13.4mm
UL62368-1, EN62368-1 Approved
Made in Japan
ECLB-60W Series
Input: 9-36V or 18-75V dc
Outputs: 3V to +/-15V dc
Power: 60 Watt
Tamb: -40°C to +105°C
Dims: 2.05″ x 1.2″ x 0.4″
1500V dc Isolation
Outputs: 3V to +/-15V dc
Power: 60 Watt
Tamb: -40°C to +105°C
Dims: 2.05″ x 1.2″ x 0.4″
1500V dc Isolation
CQB100W Series
Input: 9-36V or 18-75V dc
Outputs: 3V to 48V dc
Power: 100 Watt
Tamb: -40°C to +100°C
Dims: Quarter Brick
1500V dc Isolation
Safety Meets IEC/EN/UL 62368-1
Outputs: 3V to 48V dc
Power: 100 Watt
Tamb: -40°C to +100°C
Dims: Quarter Brick
1500V dc Isolation
Safety Meets IEC/EN/UL 62368-1

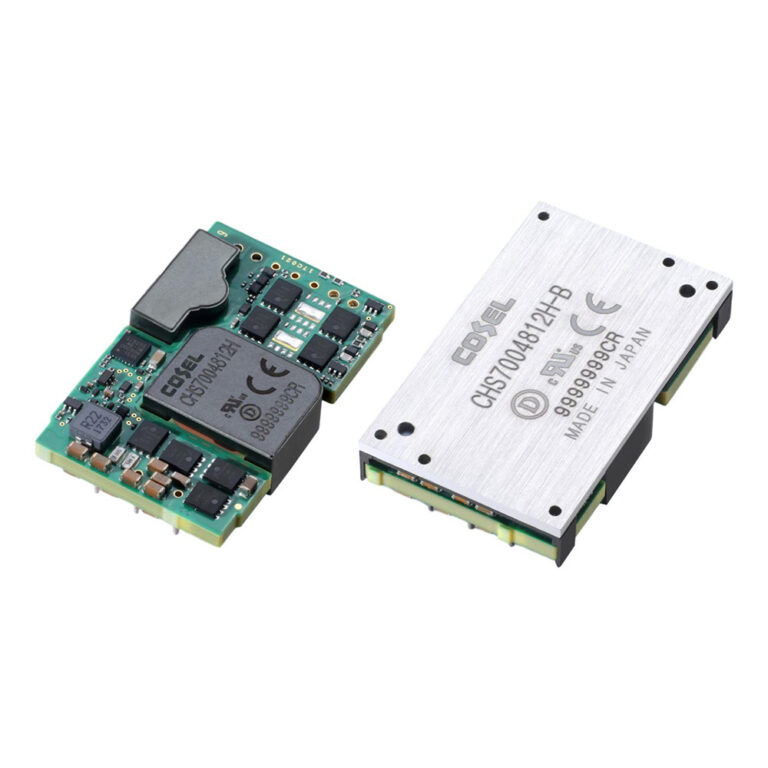

CHS700
Input: 36 – 76Vdc
Outputs: 12V
Power: 702 Watt
Tamb: -40 to 85°C
Dims: 58.9 x 12.7 x 36.8mm
UL60950-1, EN62368-1 Approved
Made in Japan
Outputs: 12V
Power: 702 Watt
Tamb: -40 to 85°C
Dims: 58.9 x 12.7 x 36.8mm
UL60950-1, EN62368-1 Approved
Made in Japan
