Ultra Compact, Flexible 1-15 Watt AC-DC Converters
9th April 2020The LS Series; High density, High Efficiency, Low Cost Power Supplies
Relec Electronics are pleased to announce the extension up to 15 Watts of Mornsun’s highly successful LS Series board mount AC-DC Converters.
Supplied in high density, vertical SIP mount solutions, Mornsun’s LS Series AC DC converters are the perfect solution for industrial and commercial IoT applications where PCB space is at a premium. Starting at 1W in a 35 x 18 x 11mm footprint, the LS series has been extended with solutions up to 15W in a 44.5 x 24 x 15mm footprint, with options to be place them either horizontally or vertically.
Key Features & Benefits of The LS Series
With solutions meeting EN62368 (industrial) and EN60335 (Home appliance) safety approvals, the LS series are the perfect building block for creating cost effective designs, with the minimum of design effort. Mornsun have a range of peripheral circuits and application notes to support engineers designing power for even the most difficult applications.
All LS series products are designed to extremely tough industrial standards. All LS series cover voltage ranges from 85 – 264Vac with options to 305Vac 528V ac as well corresponding wide dc input ranges (120-430VDC or 100-745VDC) respectively and have operating temperature ranges of 40 to 85°C. The LS series also come with output short circuit protection, over current protection and output overvoltage protection as standard.
Applications
Mornsun’s LS series are available to sample from stock at Relec Electronics and with production pricing and lead-times making them ideal for almost any project. Typical applications include;
Relec’s engineers are available today to arrange your samples and can talk you through any peripheral components you might need.
LS01 Series
LS01 Series: 1W AC-DC Converter
Input: 85-305Vac
Outputs: 3V to 24V
Power: 1 Watt
Temp: -40 to 85°C
Dims: 35 x 11 x 18mm
UL / CE EN62368 Approved

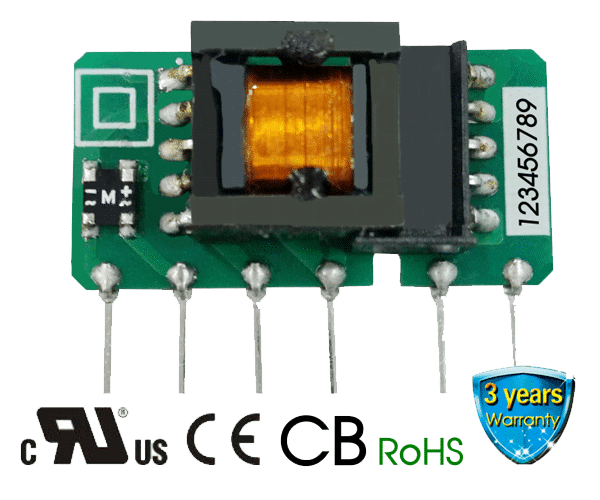

LS03 Series
LS03 Series: 3W AC-DC Converter
Input: 85-305Vac
Outputs: 3V to 24V
Power: 3 Watts
Temp: -40 to 85°C
Dims: 35 x 11 x 18mm
UL / CE EN62368 Approved

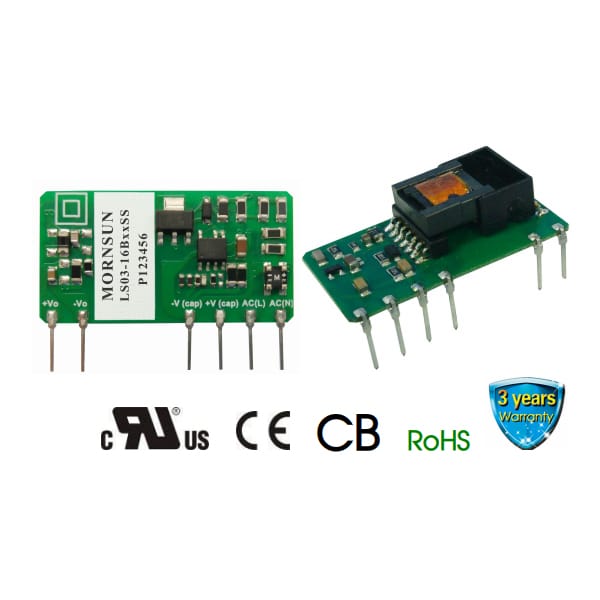

LS03-16 Series: 3W AC-DC Converter
Input: 90-528Vac
Outputs: 3V to 24V
Power: 3 Watts
Temp: -40 to 85°C
Dims: 44.5 x 13 x 22mm
UL / CE EN62368 Approved
LS05 Series
LS05 Series: 5W AC-DC Converter
Input: 85-264Vac
Outputs: 3V to 24V
Power: 5 Watts
Temp: -40 to 85°C
Dims: 42 x 13.65 x 20.0mm
UL / CE EN62368 Approved
LS05-26B Series: 5W AC-DC Converter
Input: 90-528Vac
Outputs: 3V to 24V
Power: 5 Watts
Temp: -40 to 85°C
Dims: 44.5 x 13 x 24.0mm
UL / CE EN62368 Approved

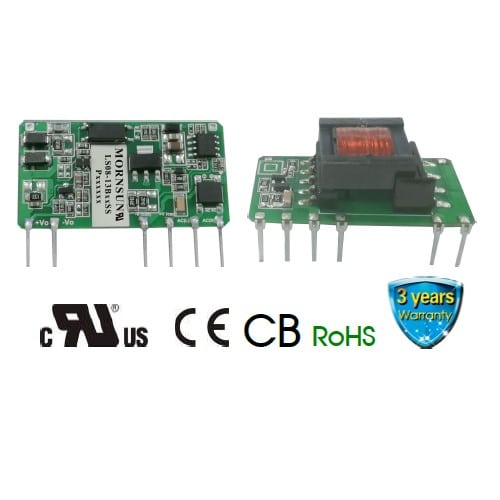

LS08 Series
LS08 Series: 8W AC-DC Converter
Input: 85-305Vac
Outputs: 3V to 24V
Power: 8 Watts
Temp: -40 to 85°C
Dims: 44.5 x 15.0 x 22.45mm
UL / CE EN62368 Approved

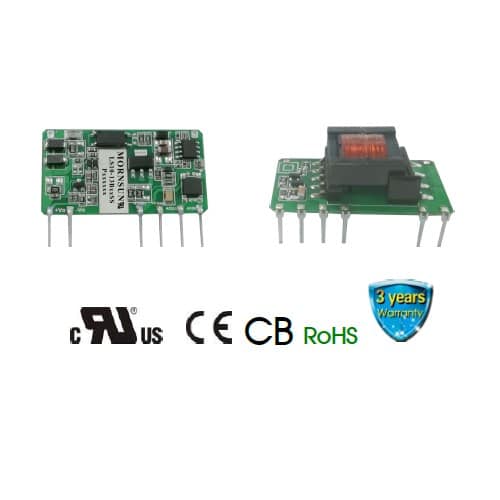

LS10 Series
LS10 Series: 10W AC-DC Converter
Input: 85-305Vac
Outputs: 3V to 24V
Power: 10 Watts
Temp: -40 to 85°C
Dims: 44.5 x 15.0 x 22.45mm
UL / CE EN62368 Approved

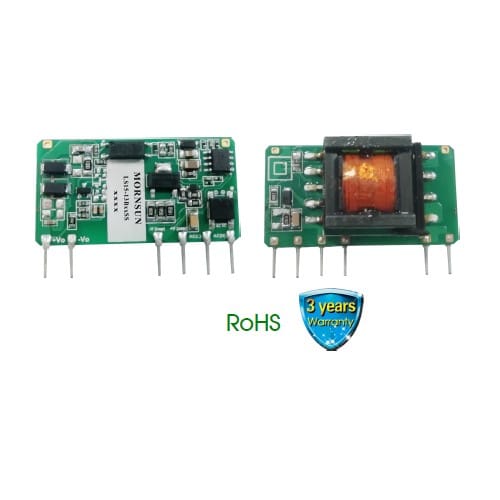

LS15 Series
LS15 Series: 15W AC-DC Converter
Input: 85-305Vac
Outputs: 3V to 24V
Power: 15 Watts
Temp: -40 to 85°C
Dims: 44.5 x 15.0 x 22.45mm
UL / CE EN62368 Approved
