LOF Series, Very High Power Density, Open Frame AC-DC Converters

14th September 2020

LOF Series, Very High Power Density, Open Frame AC-DC Converters

The 120W – 350W open frame LOF Series AC-DC Converters from Mornsun, provide low cost, short lead-time power solutions, with an emphasis placed on excellent thermal design, meeting the latest regulatory standards, and high reliability.

LOF Series – An ever-growing family

LOF120 Series | 120 Watt | High-Density & Compact | Mornsun Power

LOF120 Series

120 Watts *
3” x 2” x 1.2”
1W/cm3

LOF225 Series | 225 Watt | High-Density & Compact | Mornsun Power

LOF225 Series

225 Watts
4” x 2” x 1”
1.7W/cm3

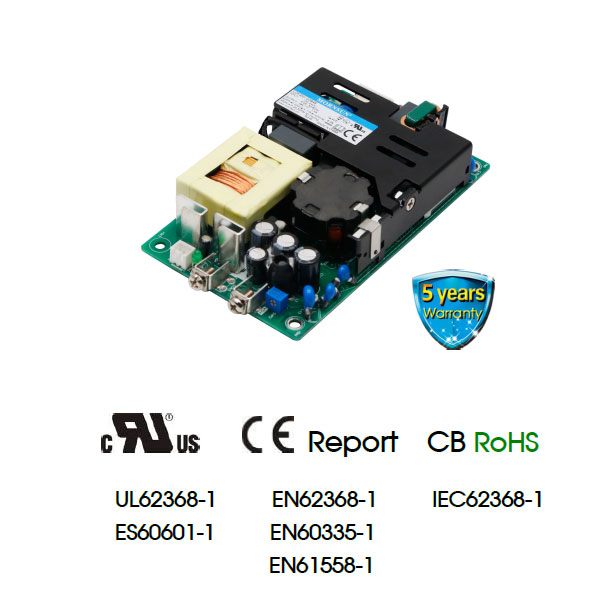

LOF350 Series | 350 Watt | High-Density & Compact | Mornsun Power

LOF350 Series

350 Watts
5” x 3” x 1”
1.4W/cm3

LOF450 Series

450 Watts *
5” x 3” x 1.5”

LOF550 Series | 550 Watt | High-Density & Compact | Mornsun Power

LOF550 Series

550 Watts
5” x 3” x 1.6”

*LOF120 can supply a peak power of up to 150W for 10 secs

The LOF series currently consists of 3 open frame families in industry-standard packages.

Each family is available with outputs ranging from 12V to 48V with the following additional features:

  • Universal AC Input (85 – 275Vac) with PFC
  • Operating temperature – 40 °C to +70°C
  • Convection and forced air-cooled ratings
  • Efficiency up to 95%
  • Very low earth leakage (<0.1mA)
  • No-load power consumption < 0.5W
  • High surge withstand (300Vac for 5 secs)
  • Compliance to IEC/EN/UL62368, IEC/EN60335, IEC/EN61558, GB4943, IEC/EN/ES60601

High Efficiency + Good Thermal Design = High Reliability + Long Life

The LOF Series have been designed using state of the art topologies and components, resulting in a family of power supplies with excellent ripple and dynamic performance.  The units have been designed to minimise local temperature hotspots, therefore improving system reliability, and increasing the life of the AC-DC Converters.

Reasonable Heat Dissipation | LOF Series

Medical & Industrial compliance, in a single solution

The LOF series have been designed to, and have approvals to, the latest industrial and medical standards.  These include

  • EN62368 – Safety requirements for Audio/video, information, and communication technology equipment.
  • EN60335 – Safety for Household and similar electrical appliances.
  • EN61558 – Safety of transformers, reactors, power supply units.
  • EN60601 – Basic safety for medical electrical equipment
  • Can be used in Class I (with PE) or Class II (no PE)

LOF Series Approvals

Not only do the LOF Series meet all the above safety standards, but have also been designed to meet the most stringent of EMC standards including:

  • EN55032 – Class B – Conducted Emissions
  • EN55032 – Class B – Radiated Emissions
  • EN61000-3-2 – Class D (PFC)
  • EN61000-4-2 – ESD Contact ±8kV/Air ±15kV
  • EN61000-4-3 – Radiated susceptibility to 10V/m
  • EN61000-4-4 – Electrical Fast Transients to ±4kV
  • EN61000-4-5 – Surge to ±2kV (L-L) ±4kV (L-E)
  • EN61000-4-6 – Conducted susceptibility to 10V rms
  • EN61000-4-11 – Dips and interruptions 0%, 70%

Low Cost / Short Lead-times

As with all Mornsun solutions, the LOF series will be at the competitive edge when it comes to pricing, and with lead times of 6 weeks as standard, the LOF series are an exciting prospect for any application.  The technical team at Relec are available to talk you through the specific requirements of your application, and arrange for free of charge samples for you to evaluate.
