LIF Series Offers Energy & Cost-Efficiency for DIN-Rail Power

24th September 2021

LIF Series Offers Energy & Cost-Efficiency for DIN-Rail Power

The lightweight and compact ac-dc converters by Mornsun are the latest high-reliability, low noise ac-dc converters available from Relec Electronics

The LIF120, LIF240 and LIF480 din rail mount ac-dc converters are all IEC/EN/UL62368, UL61010, UL508-approved for global use, and have a universal input range of 85 – 264VAC or 120 – 370VDC and cover standard outputs of 12V, 24V & 48V, with the opportunity to adjust the outputs by up to 15%.

In addition to a superior EMC performance, with a high level of stability and immunity to noise, all models are certified to EN61000-3-2 Class D for harmonics. They are also equipped with power-fail monitoring outputs and safety features include output short circuit, over-current, over-voltage and over-temperature protection.

The LIF Series’ slim width and compact dimensions are ideal for standard DIN-rail mounting. The cost-efficient ac-dc converters are particularly suitable for saving space in harsh operating environments, for example in industrial control equipment and machinery.

The 120W LIF120 has a peak output of 180W for three seconds and dimensions of 110.00 x 32.00 x 124.00mm. It is extremely reliable, with efficiency up to 94% and also has 150% peak load output for three seconds. An ATEX-approved, explosion-proof version is also available as an option.

The LIF240, 240W ac-dc converter also has a 150% peak load output for three seconds. It is an energy-efficient and, like the LIF120, has an additional 12V option as well as 24V and 48V outputs.

The 480W LIF480 is reliable with efficiency up to 94% and with an active PFC above 0.95. In addition to the same safety features as the LIF120 and LIF240, it also has high I/O isolation test voltage up to 3000VAC.

Operating temperature range for the LIF120 and LIF240 is LIF480 is -40°C to +70°C and -30°C to +70°C for the LIF240 and LIF480.

Dimensions for the LIF240 Series are 124.00 x 41.00 x 110.00mm, The LIF480 measures 131.5 x 48.0 x 125.0mm.

Operating temperature range for the LIF120 and LIF240 is LIF480 is -40°C to +70°C and -30°C to +70°C for the LIF240 and LIF480.

All models are covered with a three-year warranty.

Short Lead-times & Competitively Priced

Many of the Mornsun AC-DC converters are 100% compatible with devices from other manufacturers, and are available today with the industry’s shortest lead-times and benchmark pricing. In addition to standard AC-DC and DC-DC power supplies, Mornsun also welcomes enquiries for custom applications.

Here at Relec we are a happy to offer free of charge samples, many of which we have in stock for immediate delivery.  We will also offer full technical support to help integrate the converters into your design as well as finding solutions for other aspects of your power topology…

LIF Series from Mornsun Power

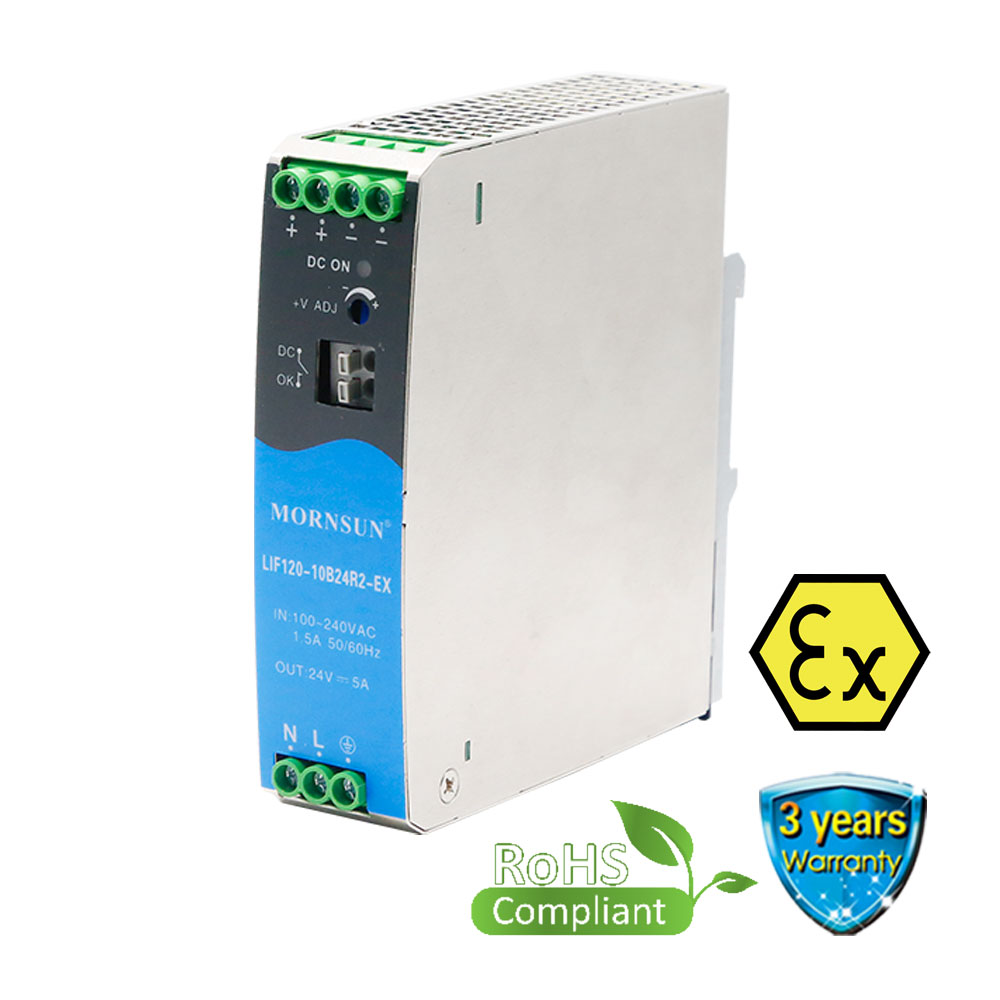

LIF120 Series | 120 Watt | PFC AC-DC Power | EN/UL62368 Approved

LIF120 Series

Input: 85 – 264V ac / 120 – 370V dc
Outputs: 12V to 53V
Power: 120 Watt (180W for 3 secs)
Tamb: -40°C to +70°C
Dims: 110.00 x 32.00 x 124.00mm
IEC/EN/UL62368, UL61010, UL508 Approved

ATEX Options Available
3 Years Manufacturer Warranty

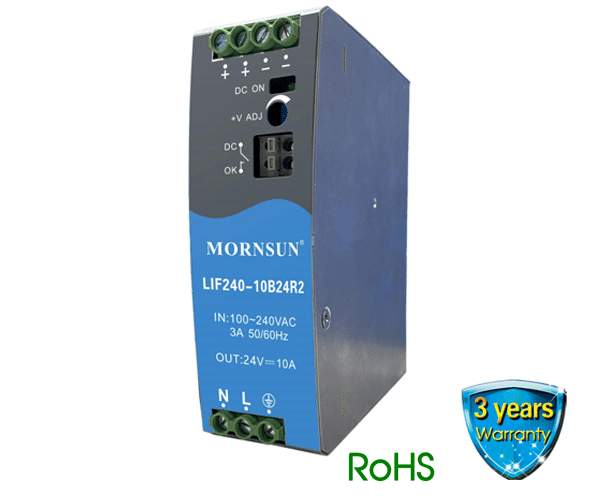

LIF240 R2 Series | 480 Watt | PFC AC-DC Power | EN/UL62368 Approved

LIF240 Series

Input: 85 – 264V ac / 120 – 370V dc
Outputs: 12V to 53V
Power: 192 & 240 Watt (150% for 3 secs)
Tamb: -40°C to +70°C
Dims: 124.00 x 41.00 x 110.00mm
IEC/EN/UL62368, UL61010, UL508 Approved
3 Years Manufacturer Warranty

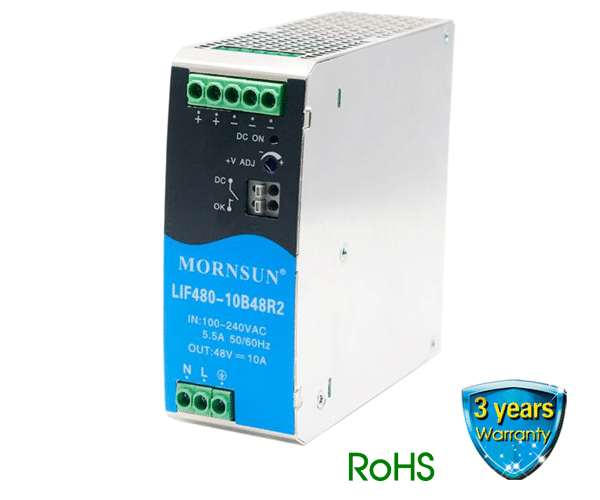

LIF480 R2 Series | 480 Watt | PFC AC-DC Power | EN/UL62368 Approved

LIF480 Series

Input: 85 – 264V ac / 120 – 370V dc
Outputs: 24V to 28V & 48V to 55V
Power: 480 Watt
Tamb: -30°C to +70°C
Dims: 131.50 x 48.00 x 125.00 mm
Active PFC (EN61000-3-2 Class D)
IEC/EN/UL62368, UL61010, UL508 Approved

3 Years Manufacturer Warranty
