New Ultra Compact LD R2 Series from Mornsun

24th August 2020

New Ultra Compact LD R2 Series from Mornsun

The development of the “smart home” and “Internet of things” continues to push demand for higher density electronics, and as a result, for smaller power supplies.  The introduction of the LD-R2 series from Mornsun provides an Ultra-compact, yet a cost-effective family of power supplies ranging from 3W to 20W.

The LD-R2 Series come with multiple safety approvals including EN/UL62368 for audio, video and IT equipment as well as EN60335 & EN61558 for household, domestic appliances and power transformers, making them suitable for a range of applications including;

Small in size, big on approvals and features

The LD-R2 series have a universal input voltage range of 85-305Vac and an operating temperature of -40 to +85°C.  All units meet EN55032 class B EMC standards without the need for external components and have a no load power consumption of less than 0.1W, making them the ideal solution for household and domestic applications.

As with all Mornsun solutions, both pricing and delivery are second to none.  Relec’s team of experienced engineers will help you find the right product for your application.  Samples, if not available from stock, can generally be supplied in 2 – 3 weeks free of charge.

LD R2 Series from Mornsun

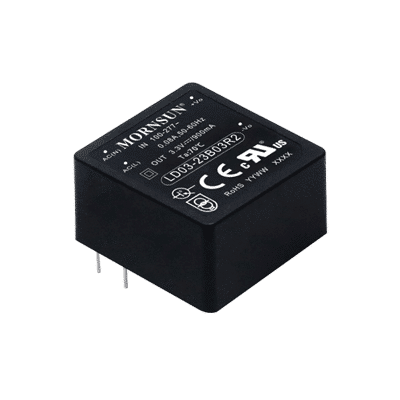

LD03 R2 Series: 3 Watts AC/DC Converter

Input: 85 – 305Vac
Outputs: 3.3V to 24Vdc
Power: 3 Watts
Tamb: -40 to +85°C
Dims: 25.4 x 25.4 x 17.6mm
CB/CE/UL EN62368 Approved

New Ultra Compact LD05 R2 Series from Mornsun | 3-20 Watt AC-DC Power

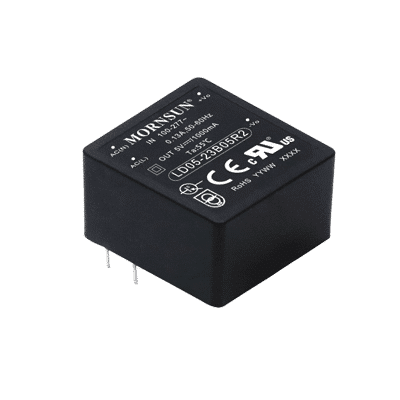

LD05 R2 Series: 3 Watts AC/DC Converter

Input: 85 – 305Vac
Outputs: 3.3V to 24Vdc
Power: 3 Watts
Tamb: -40 to +85°C
Dims: 25.4 x 25.4 x 17.6mm
CB/CE/UL EN62368 Approved

New Ultra Compact LD10 R2 Series from Mornsun | 3-20 Watt AC-DC Power

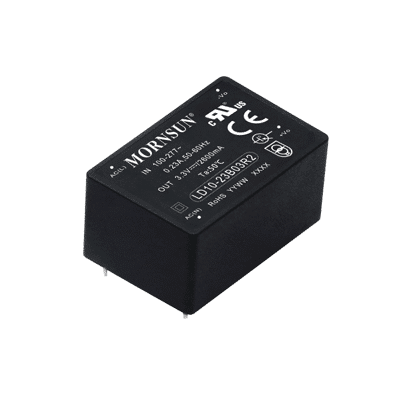

LD10 R2 Series: 10 Watts AC/DC Converter

Input: 85 – 305Vac
Outputs: 3.3V to 24V
Power: 10 Watts
Tamb: -40 to +85°C
Dims: 40 x 25.5 x 21mm
EN/UL/CE EN62368/60335/61558 Approved

New Ultra Compact LD15 R2 Series from Mornsun | 3-20 Watt AC-DC Power

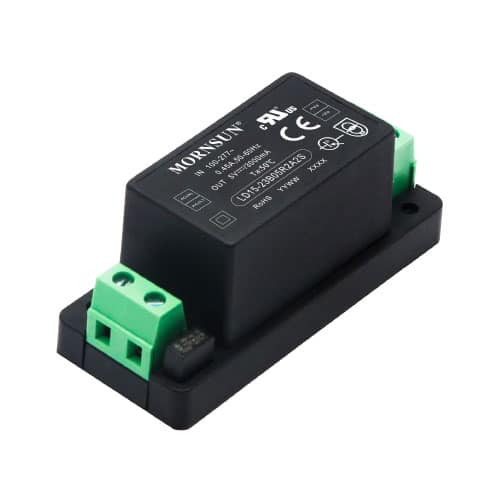

LD15 R2 Series: 3 Watts AC/DC Converter

Input: 85 – 305Vac
Outputs: 3.3V to 24V
Power: 15 Watts
Tamb: -40 to +85°C
Dims: 47.6 x 26.8 x 23.5mm
EN/UL/CE EN62368/60335/61558 Approved

LD20 R2 Series | Mornsun Power | 20 Watts | Relec Electronics

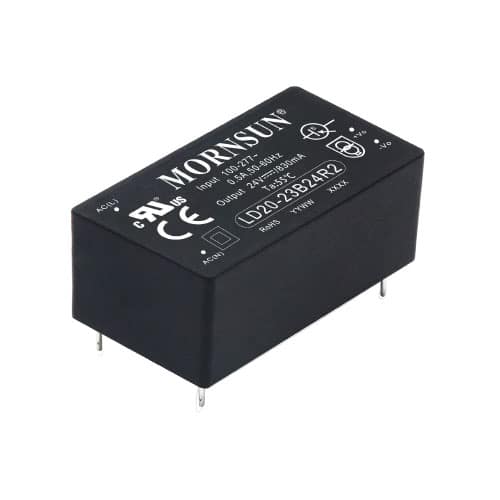

LD20 R2 Series: 20 Watts AC/DC Converter

Input: 85 – 305Vac
Outputs: 3.3V to 24V
Power: 20 Watts
Tamb: -40°C to +85°C
Dims: 52.4 x 27.2 x 24.00mm
EN/UL/CE EN62368/60335/61558 Approved

Other Converters from Mornsun
