DC-DC Converters

MUW10

Input: 4.5 – 76Vdc
Outputs: ±12V – ±15V
Power: 10.8 Watt
Tamb: -40 to 95°C
Dims: 24 x 8.5 x 17.3mm
UL62368-1, EN62368-1 Approved
Made in Japan

MUW1R5

Input: 4.5 – 76Vdc
Outputs: 3.3 – 76V
Power: 1.5 Watt
Tamb: -40 to 100°C
Dims: 21.4 x 8.5 x 13.4mm
UL62368-1, EN62368-1 Approved
Made in Japan

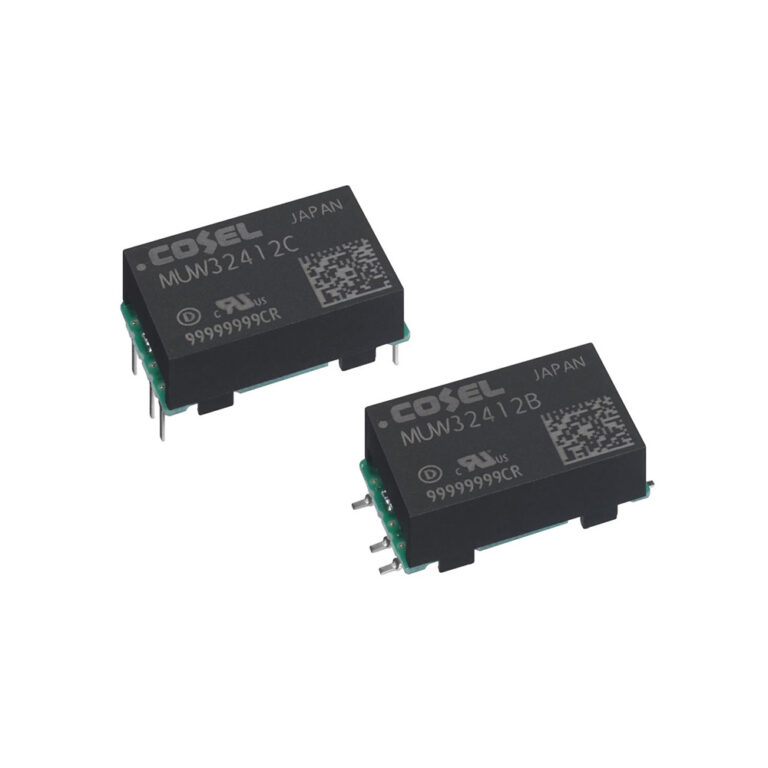

MUW3

Input: 4.5 – 76Vdc
Outputs: ±12V – ±15V
Power: 3 Watt
Tamb: -40 to 100°C
Dims: 21.4 x 8.5 x 13.4mm
UL62368-1, EN62368-1 Approved
Made in Japan

MUW6

Input: 4.5 – 76Vdc
Outputs: ±12V – ±15V
Power: 6 Watt
Tamb: -40 to 95°C
Dims: 24 x 8.5 x 17.3mm
UL62368-1, EN62368-1 Approved
Made in Japan

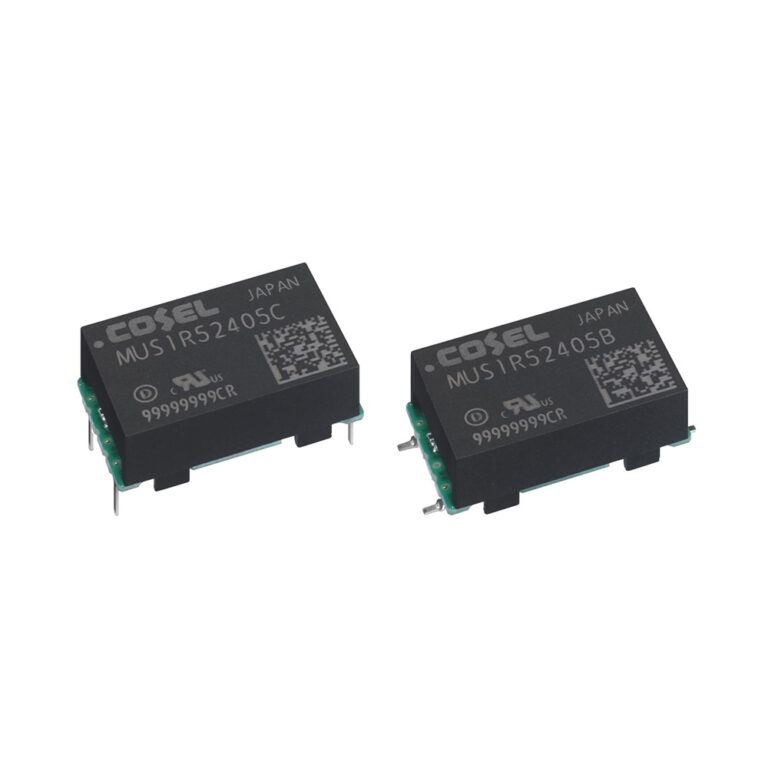

MUS1R5

Input: 4.5 – 76Vdc
Outputs: 3.3 – 15V
Power: 1.5 Watt
Tamb: -40 to 100°C
Dims: 21.4 x 8.5 x 13.4mm
UL62368-1, EN62368-1 Approved
Made in Japan

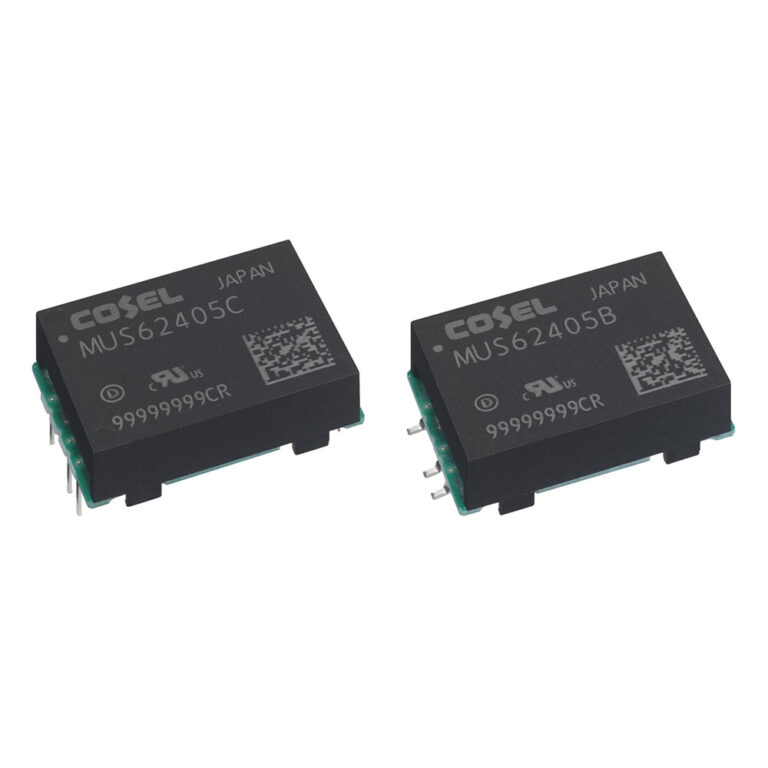

MUS6

Input: 4.5 – 76Vdc
Outputs: 3.3 – 15V
Power: 6 Watt
Tamb: -40 to 95°C
Dims: 24 x 8.5 x 17.3mm
UL62368-1, EN62368-1 Approved
Made in Japan

MUS3

Input: 4.5 – 76Vdc
Outputs: 3.3 – 15V
Power: 3 Watt
Tamb: -40 to 100°C
Dims: 21.4 x 8.5 x 13.4mm
UL62368-1, EN62368-1 Approved
Made in Japan

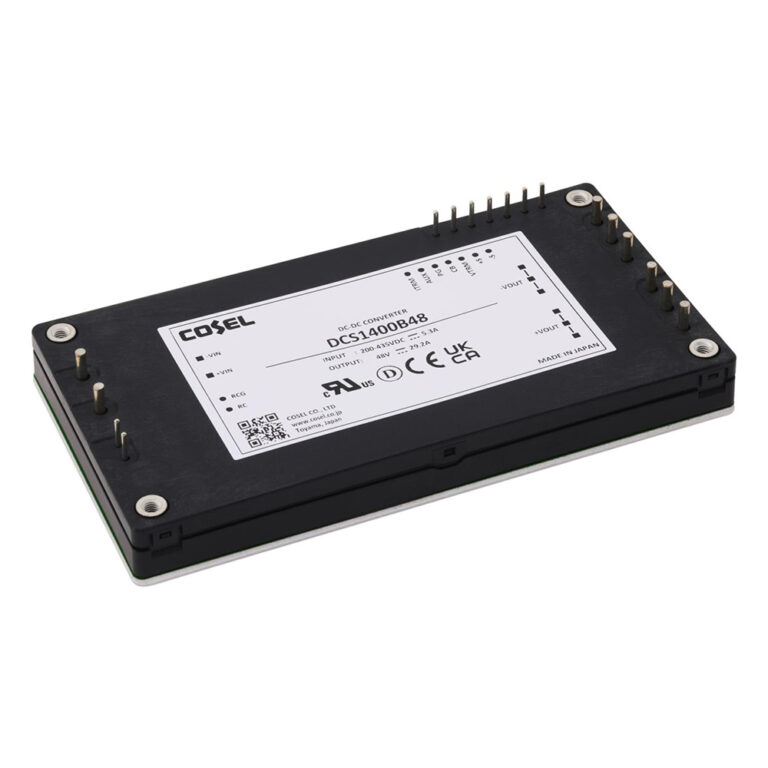

DCS1400B

Input: 200 – 435Vdc
Outputs: 12 – 65Vdc
Power: 1400 Watt
Tamb: -40 to 85°C (100°C Baseplate)
Dims: 116.8 x 12.7 x 61mm
UL62368-1 & EN62368-1 Approved
Made in Japan

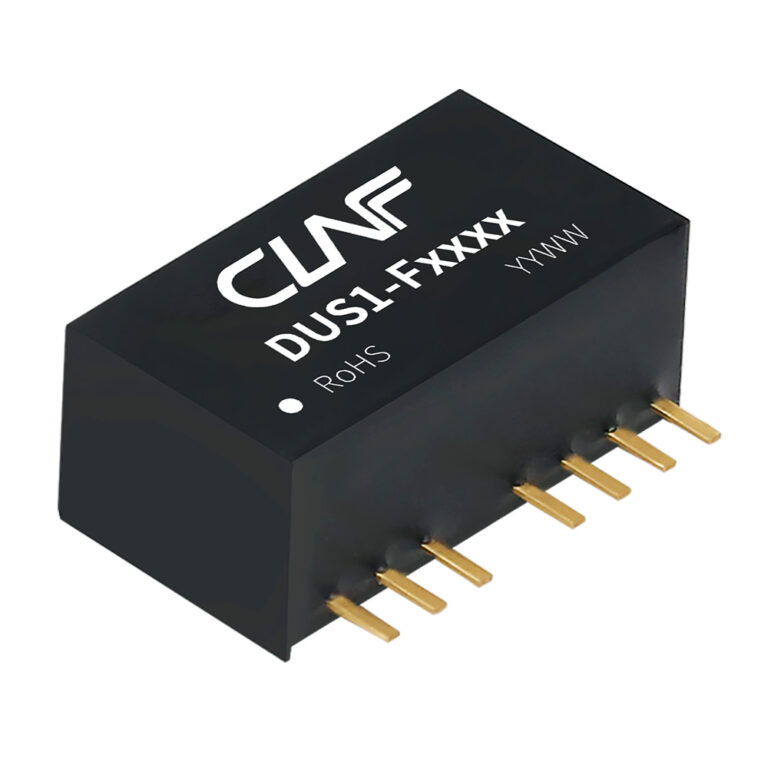

DUS1-F Series

Input: 4.5-36V dc
Outputs 5V to 15V dc
Power: 1 Watt
Tamb: -40 to +105°C
Dims: 22.0 x 9.5 x 12.0mm (SIP8)
3000Vdc Isolation

DEST1-B Series

Input: 9 to 36Vdc
Outputs: 3V3 to 24V dc
Power: 1 Watt
Tamb: -40 to +85°C
Dims: SMD 15.0 x 14.0 x 9.1mm
1500V Isolation

DFXT1-F Series

Inputs: 5Vdc to 24Vdc
Outputs: 3V3dc to 24Vdc
Power: 1 Watt
Tamb: -40°C to +105°C
Dims: 13.20 x 11.40 x 7.25 mm
3000V isolation

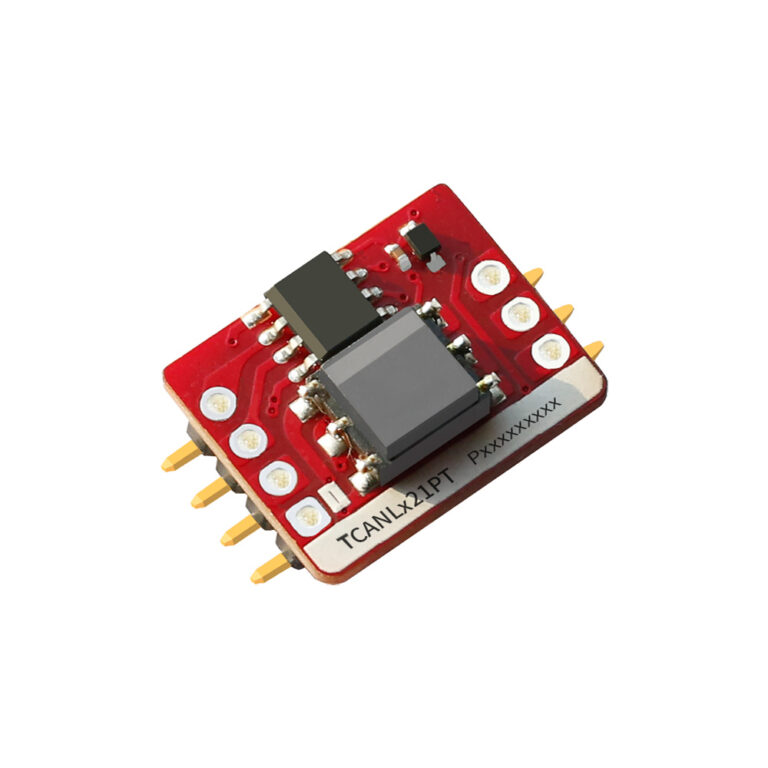

TCANL5(3)21PT Series

Input: 3V3 or 5V dc
Outputs: 5V dc isolated
CAN Bus Transceiver
Tamb: -40°C to +105°C
Dims: SMD (22.80 x 14.80mm)
Baud Rate: 1Mbps
