DC-DC Converters

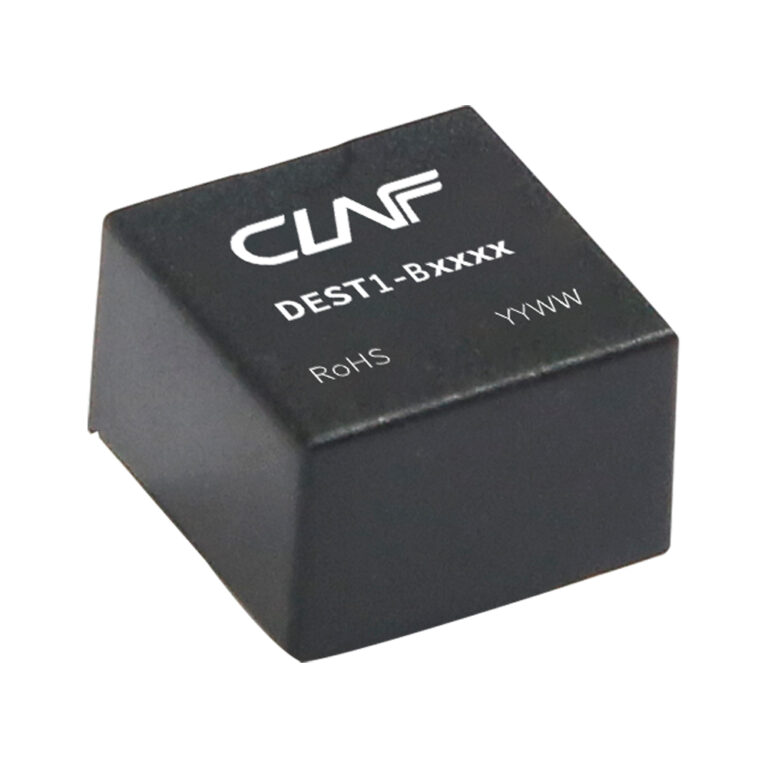

DEST1-B Series
Input: 9 to 36Vdc
Outputs: 3V3 to 24V dc
Power: 1 Watt
Tamb: -40 to +85°C
Dims: SMD 15.0 x 14.0 x 9.1mm
1500V Isolation
Outputs: 3V3 to 24V dc
Power: 1 Watt
Tamb: -40 to +85°C
Dims: SMD 15.0 x 14.0 x 9.1mm
1500V Isolation

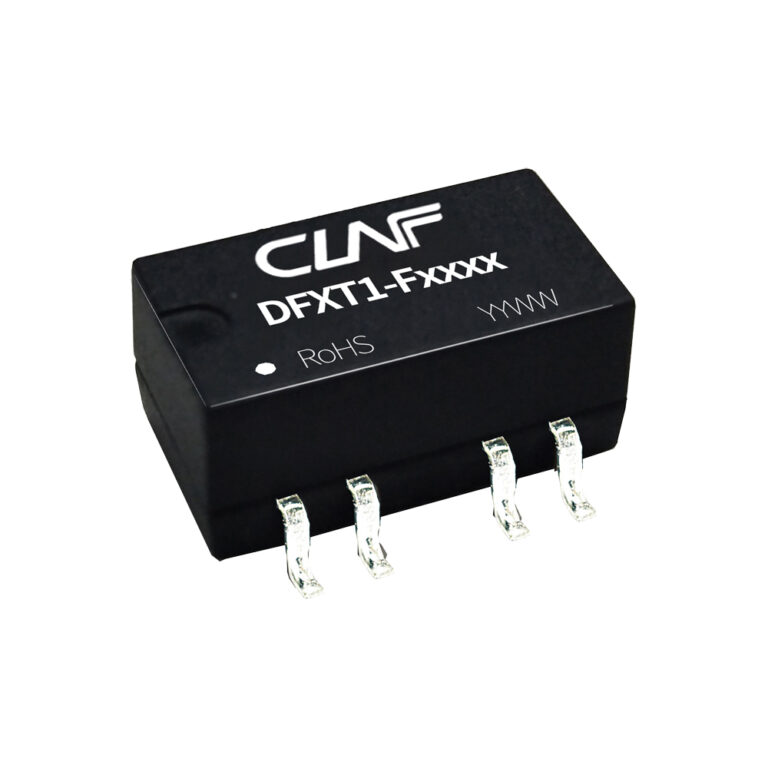

DFXT1-F Series
Inputs: 5Vdc to 24Vdc
Outputs: 3V3dc to 24Vdc
Power: 1 Watt
Tamb: -40°C to +105°C
Dims: 13.20 x 11.40 x 7.25 mm
3000V isolation
Outputs: 3V3dc to 24Vdc
Power: 1 Watt
Tamb: -40°C to +105°C
Dims: 13.20 x 11.40 x 7.25 mm
3000V isolation

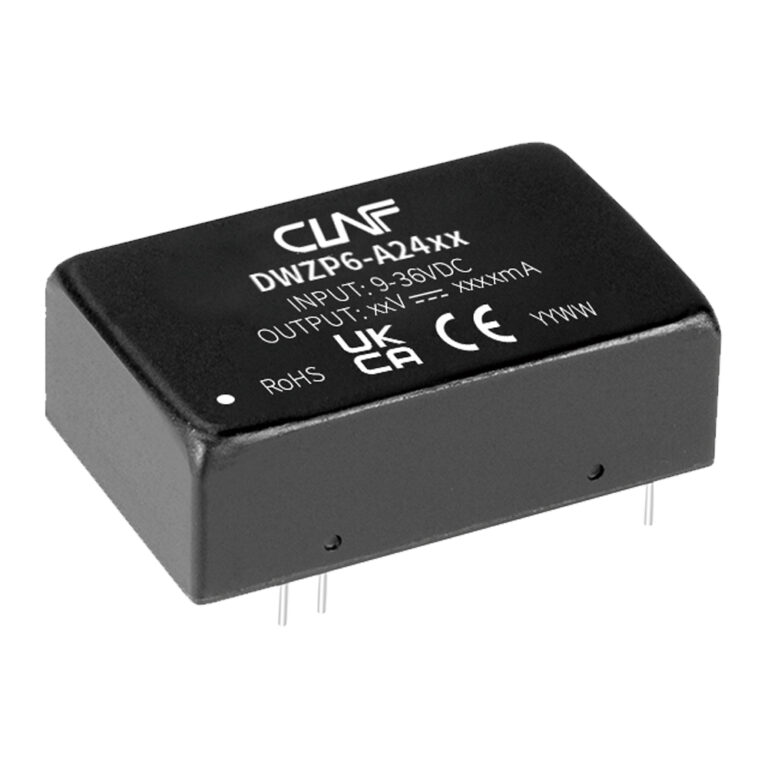

DWZP6-A Series
Input: 9-36V or 18-75V dc
Outputs ±3V to ±24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: DIP24 – 32 x 20 x 10.80mm
1500V Isolation
Outputs ±3V to ±24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: DIP24 – 32 x 20 x 10.80mm
1500V Isolation

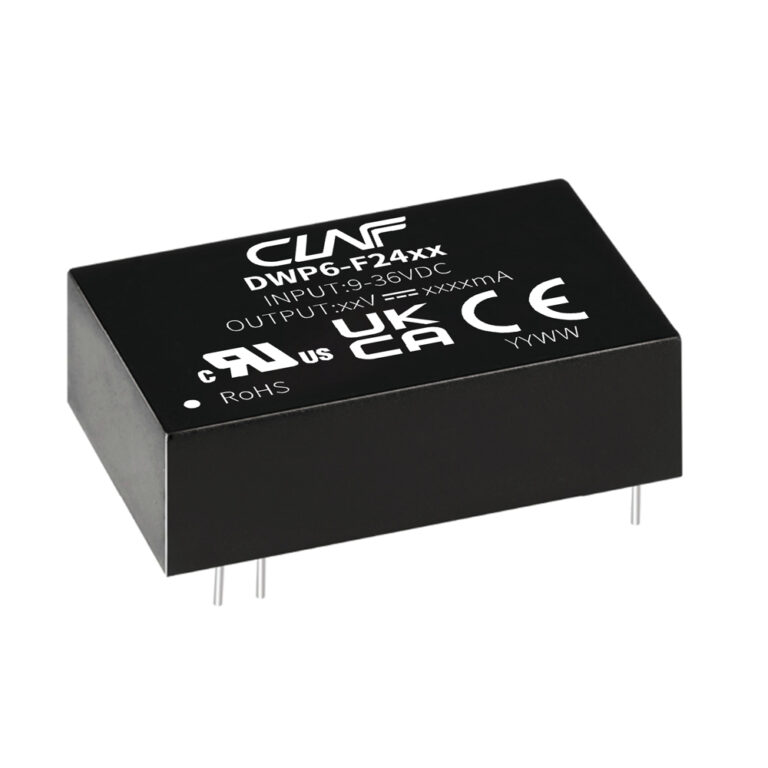

DWP6-F Series
Input: 9-36V or 18-75V dc
Outputs: 3V to 24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: DIP24 – 32 x 20 x 10.80mm
3000V Isolation
Outputs: 3V to 24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: DIP24 – 32 x 20 x 10.80mm
3000V Isolation

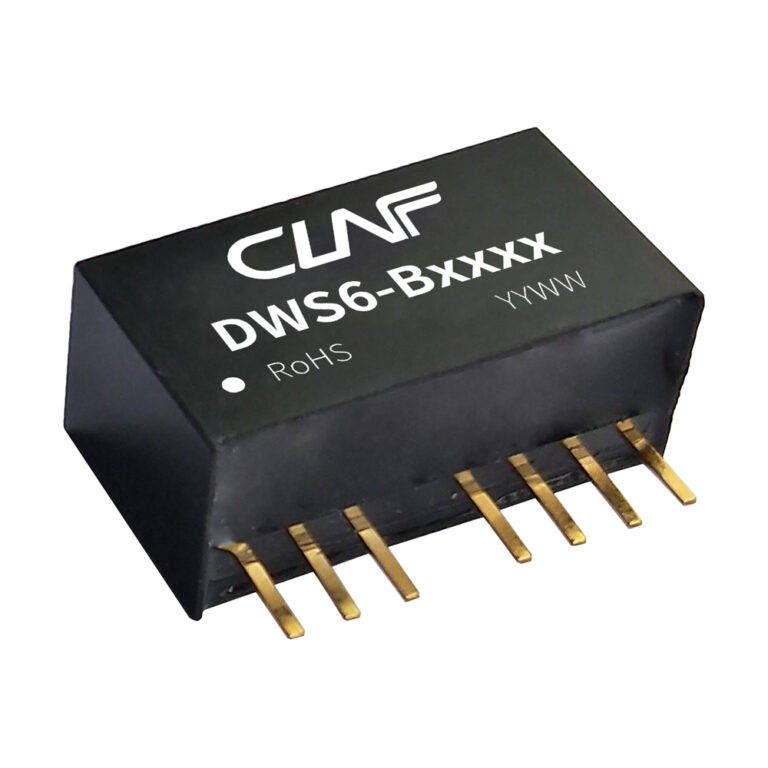

DWS6-B Series
Input: 9-36V dc
Outputs 3V to 24V dc
Power: 6 Watt
Tamb: -40 to +105°C
Dims: 22.0 x 9.5 x 12.0mm (SIP8)
1600V Isolation
Outputs 3V to 24V dc
Power: 6 Watt
Tamb: -40 to +105°C
Dims: 22.0 x 9.5 x 12.0mm (SIP8)
1600V Isolation

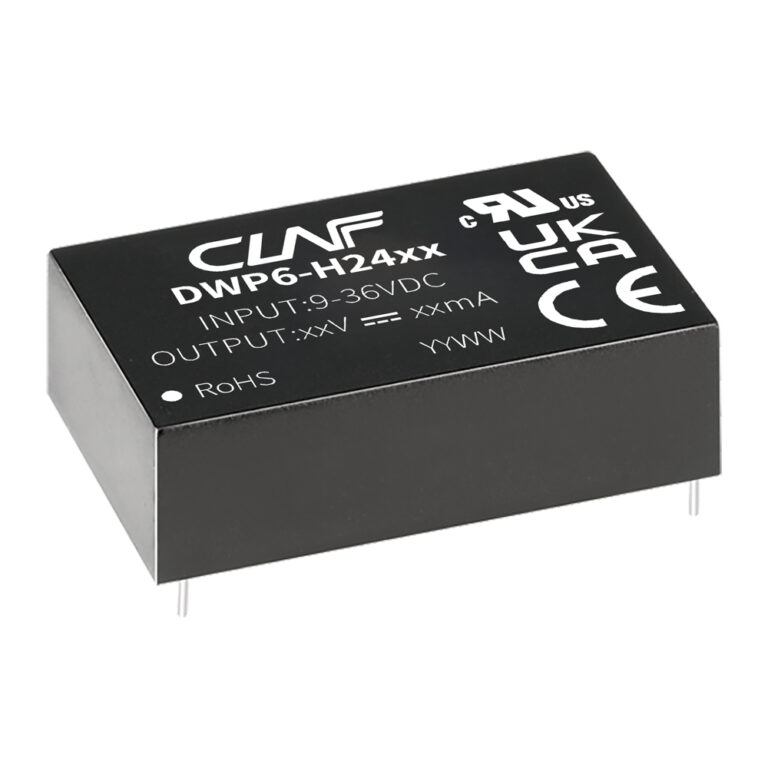

DWP6-H24xx Series
Input: 9-36V or 18-75V dc
Outputs: 3V to 24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: DIP24 – 32 x 20 x 10.80mm
6000V Isolation
Outputs: 3V to 24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: DIP24 – 32 x 20 x 10.80mm
6000V Isolation

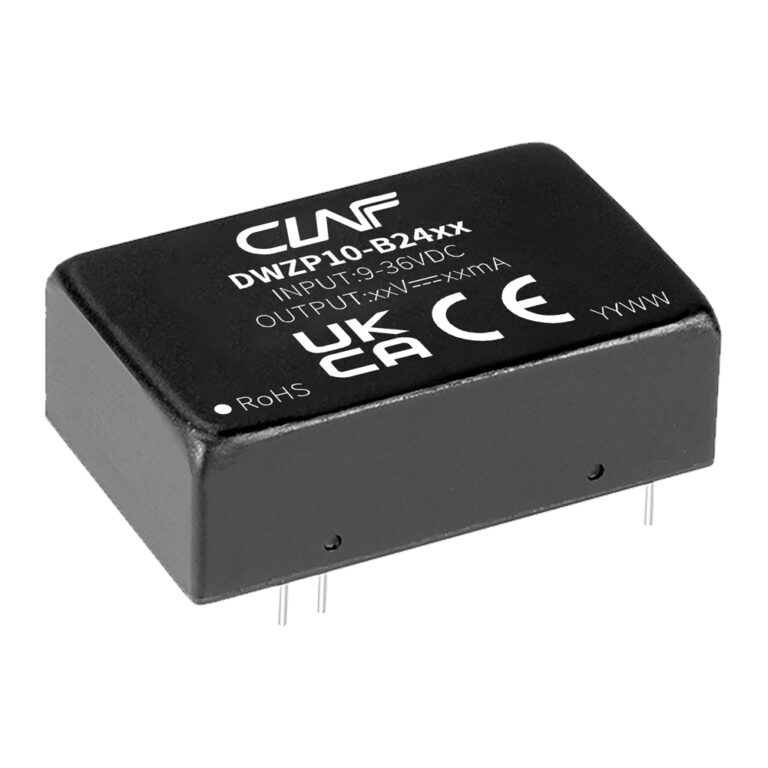

DWZP10-B Series
Input: 9-36V or 18-75V dc
Outputs 3V to 24V dc
Power: 10 Watt
Tamb: -40 to +85°C
Dims: DIP24 – 32 x 20 x 10.80mm
1500V Isolation
Outputs 3V to 24V dc
Power: 10 Watt
Tamb: -40 to +85°C
Dims: DIP24 – 32 x 20 x 10.80mm
1500V Isolation

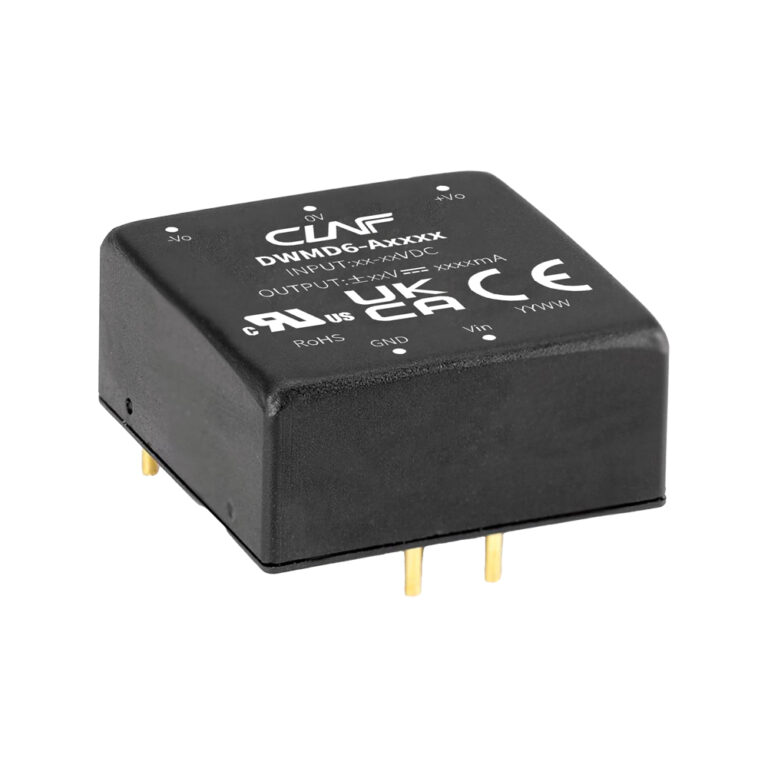

DWMD6-A Series
Input: 9-36V or 18-75V dc
Outputs ±3V to ±24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: 1″ x 1″ x 0.465″
1500V Isolation
Outputs ±3V to ±24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: 1″ x 1″ x 0.465″
1500V Isolation

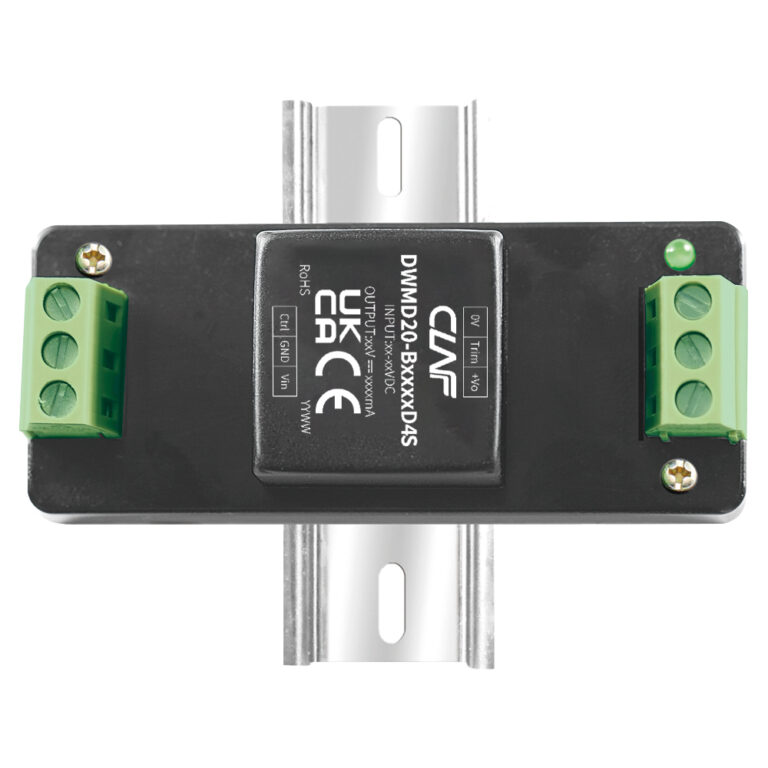

DWMD20-B Series
Input: 9-36V or 18-75V DC
Outputs 3V to 24V DC
Power: 20 Watt
Tamb: -40 to +105°C
Dims: 1″ x 1″ x 0.465″
1500V Isolation
Outputs 3V to 24V DC
Power: 20 Watt
Tamb: -40 to +105°C
Dims: 1″ x 1″ x 0.465″
1500V Isolation

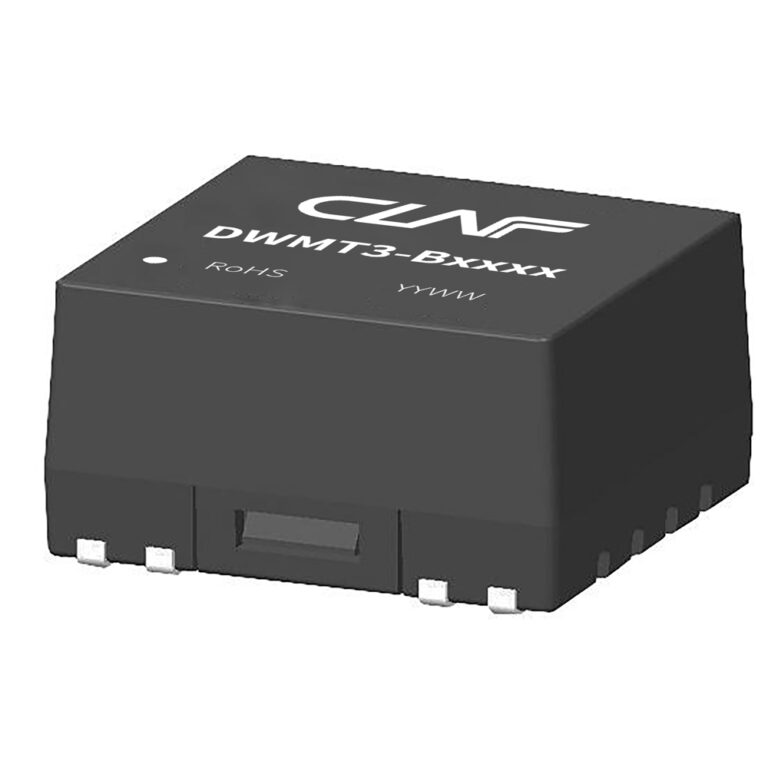

DWMT3-B Series
Input: 9-36V or 18-75V dc
Outputs: 3V3 to 24V dc
Power: 3 Watt
Tamb: -40 to +85°C
Dims: SMD14
1500V Isolation
Outputs: 3V3 to 24V dc
Power: 3 Watt
Tamb: -40 to +85°C
Dims: SMD14
1500V Isolation

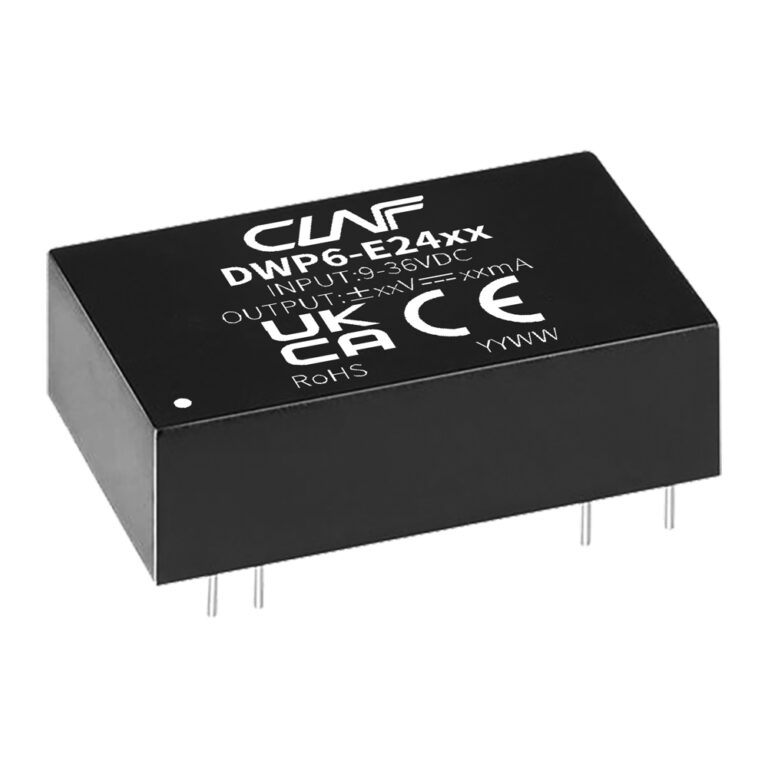

DWP6-E Series
Input: 9-36V or 18-75V dc
Outputs: ±5V to ±24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: DIP24 – 32 x 20 x 10.80mm
3000V Isolation
Outputs: ±5V to ±24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: DIP24 – 32 x 20 x 10.80mm
3000V Isolation

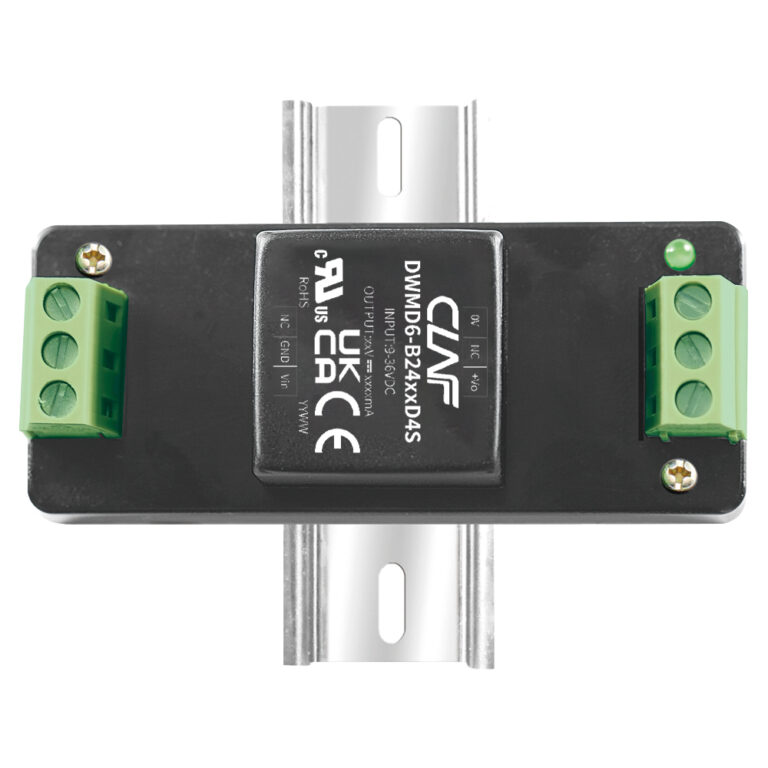

DWMD6-B Series
Input: 9-36V or 18-75V dc
Outputs 3V to 24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: 1″ x 1″ x 0.465″
1500V Isolation
Outputs 3V to 24V dc
Power: 6 Watt
Tamb: -40 to +85°C
Dims: 1″ x 1″ x 0.465″
1500V Isolation
