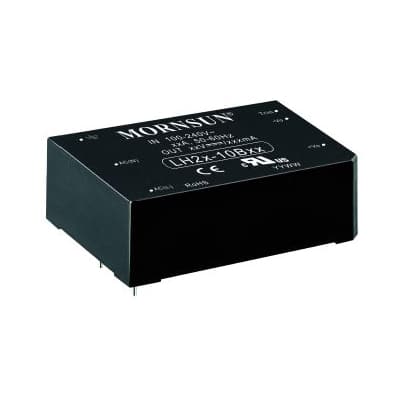

LH25 Series

Input: 85-264Vac
Outputs 3V3 to 24V
Power: 25 Watt
Tamb: -40 to 70°C
Dims: 70 x 48 x 23.5mm
UL / CE EN60950/60601 Approved

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Name
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

LH25-10BXX and LH25-20BXXMU are high efficiency 25W power modules from Mornsun. They are widely used in industrial, office and civil equipment. The LH25-20BxxMU series meet IEC60601-1, EN60601-1, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1 medical standards (2xMOPP) making them suitable for a wide variety of medical applications.

The LH25 series meet all international EMC and safety standards UL60950 and IEC/EN60950 with options available for EN60601 2 XMOPP. Contact our technical sales team today for more information.

feature list

Universal mains input: 85 to 264Vac, 50/60Hz
DC input: 100 to 370Vdc
EN60601 2XMOPP versions
Low ripple and noise
Output over voltage, short circuit and over currentprotection
High efficiency, high power density
Isolation voltage: 3kVac
Operating temperature: -40 to +70°C
3 years warranty
*Standard package mounting is PCB
A2 option is chassis mount with screw terminals

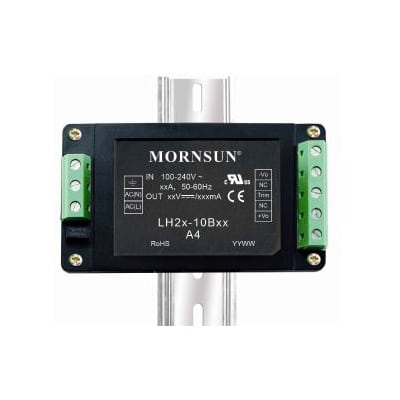

A4 option is DIN rail mount with screw terminals

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
LH25-10B03	85-264VAC 100-370VDC	3V	25W
LH25-10B05	85-264VAC 100-370VDC	5V	25W
LH25-10B05MU	85-264VAC 100-370VDC	5V	25W
LH25-10B09	85-264VAC 100-370VDC	9V	25W
LH25-10B12	85-264VAC 100-370VDC	12V	25W
LH25-10B12MU	85-264VAC 100-370VDC	12V	25W
LH25-10B15	85-264VAC 100-370VDC	15V	25W
LH25-10B15MU	85-264VAC 100-370VDC	15V	25W
LH25-10B24	85-264VAC 100-370VDC	24V	25W
LH25-10B24MU	85-264VAC 100-370VDC	24V	25W

Downloads

Click on the link below for an instant download.

LH20-25 datasheet
LH25-20BxxMU datasheet
