APPLICATION

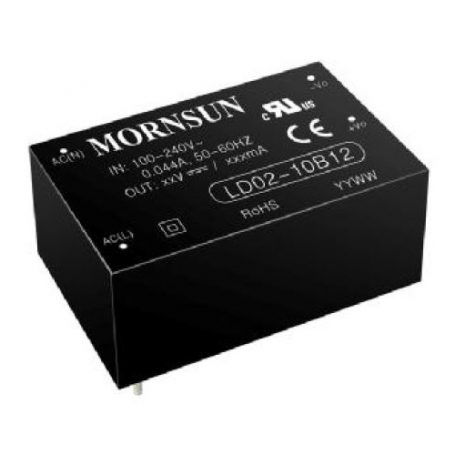

LD02-10BXX are high efficiency green power modules from Mornsun. They are widely used in industrial, office, civil and medical equipment. EMC and safety standards meet international standards IEC61000 EN60950/UL60601 and IEC60950, and Multi-certificate is in processing.
feature list
Wide Universal mains input :85 ~ 305VAC,50/60Hz
DC input - 120 - 430V DC
Meets EN55022 Level B
Low Ripple and Noise
Over output voltage, short circuit and over temperature protection
High efficiency, High power density
Low loss, green power
Multiple models available
Industrial, medical level specifications
3 years warranty
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| LD02-10B03 | 85-305VAC 120-430VDC | 3V3 | 2W |
| LD02-10B05 | 85-305VAC 120-430VDC | 5V | 2W |
| LD02-10B09 | 85-305VAC 120-430VDC | 9V | 2W |
| LD02-10B12 | 85-305VAC 120-430VDC | 12V | 2W |
| LD02-10B15 | 85-305VAC 120-430VDC | 15V | 2W |
| LD02-10B24 | 85-305VAC 120-430VDC | 24V | 2W |
