Outputs: 3V3 to 48V
Power: 200 Watt
Tamb: 0°C to +70°C
Dims: 4" x 2" x 1.5"
EN60601 2xMOPP Approved

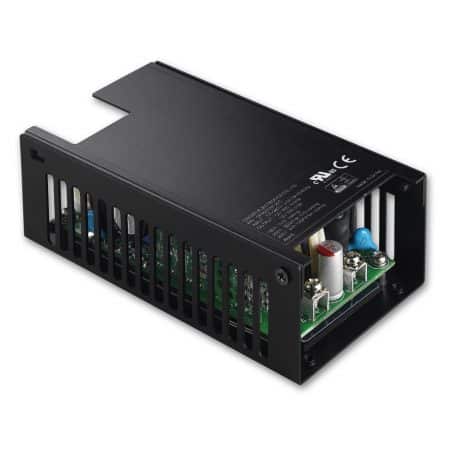

The CFM200M series is a compact and efficient series of ac dcpower supplies suited for medical applications. The CFM200M family meets the international medical safety standards EN60601 with 2 x MOPP protection
Their high efficiency allows a very minimal power loss in end equipment, resulting in higher reliability, ease of thermal management and regulatory approvals for an environmentally friendly end product.
Universal Input Range 90~264Vac
2"x 4" Open Frame/CFM200M
180W with Natural Convection @220Vac/CFM200M
200W with Natural Convection @220Vac/CFM200MXXXC
Active PFC Meets EN61000-3-2
No Load Power Consumption<0.3W
High Power Density Up to 15.2W/Inch/CFM200M
+12V Fan Output
High Efficiency up to 93.5%
Meet Class II & Class I
Meets 2 MOPP
|MODEL NUMBER||INPUT RANGE||OUTPUT||POWER|
